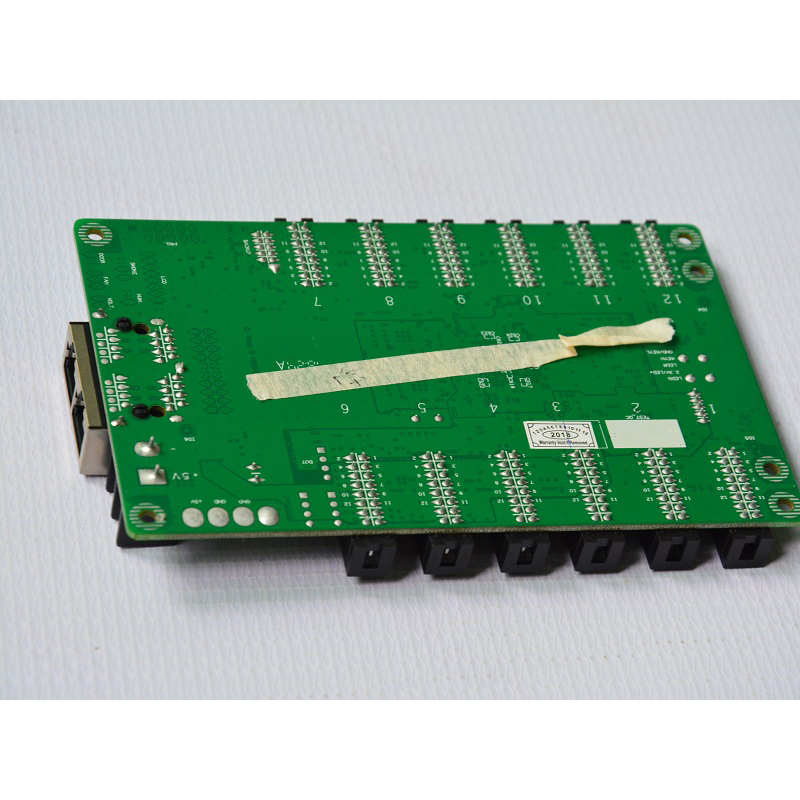

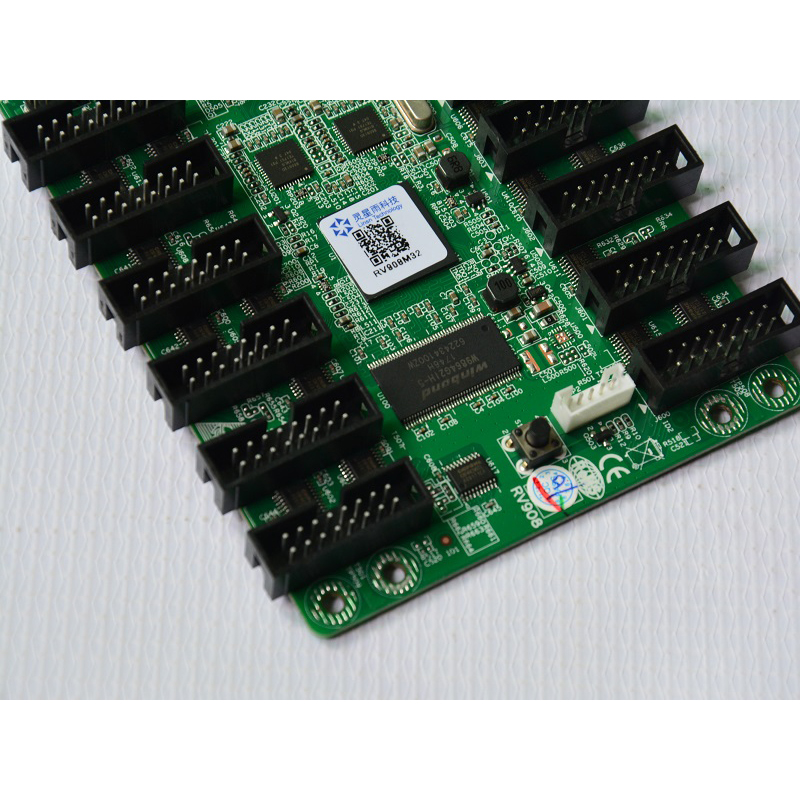

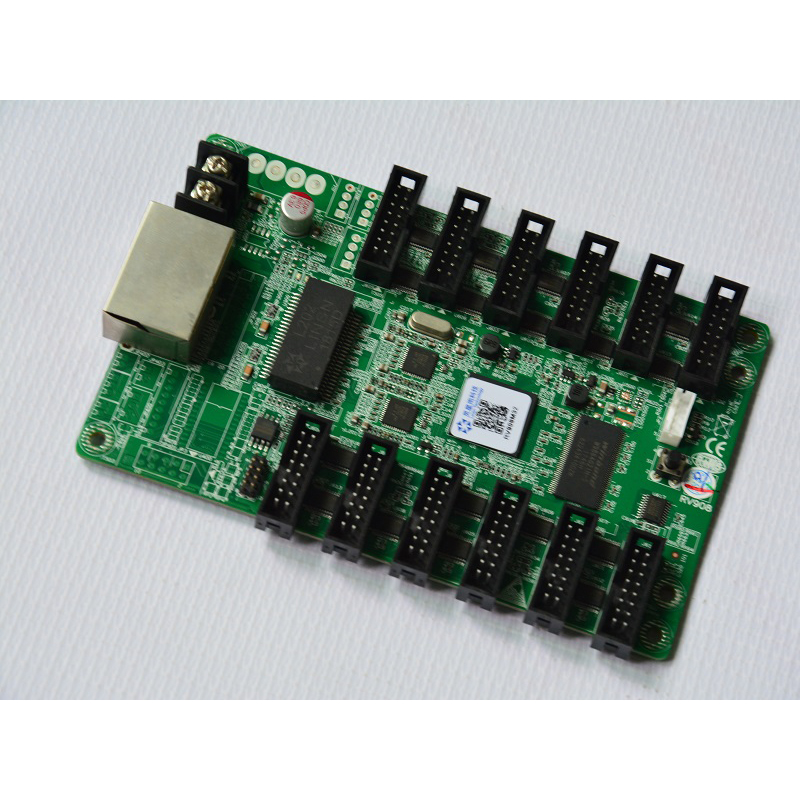

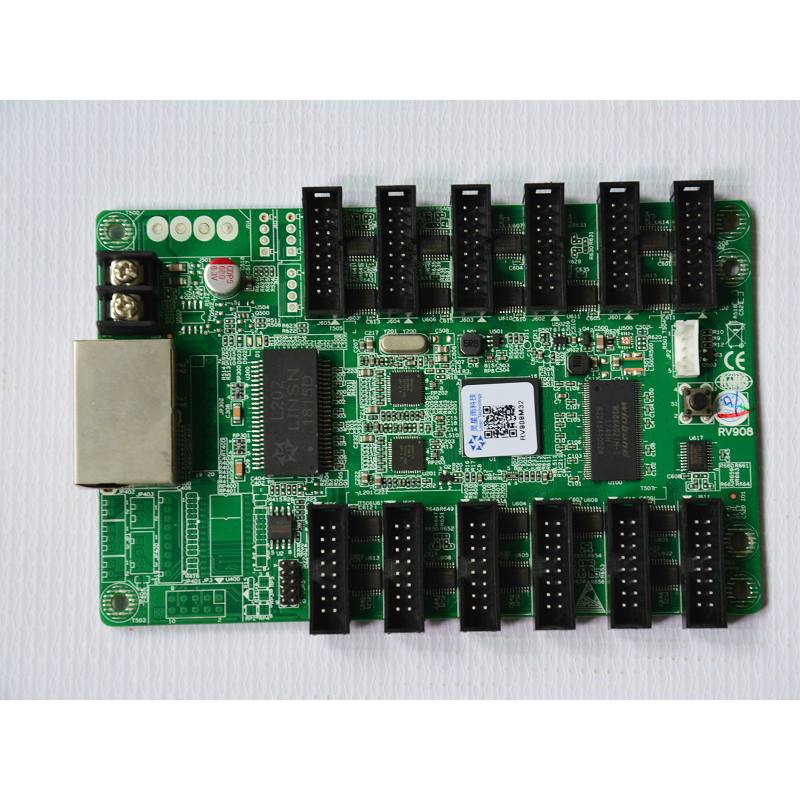

LED卡系統 Linsn RV908M32 LED螢幕接收板.
RV908M, which is equivalent to RV801 + 集線器75, is designed for 1/32scan led module , such as P3mm and P2.5 led display, are designed specifically for the standardization manufacturers: 免集線器卡設計,
have all the features of RV801, with the same size of RV801.
LED Card System Linsn RV908M32 LED Screen Receiver Board Product features:
1. Onboard the 12 16-Pin interface of HUB75 the, no extra hub needed.
3. 單卡最大支援1024X256像素, 和 1024 單像素色度校正等級.
4. 支援程式複製.
5. 採用18位元訊號處理器, 最大支援18位 (260,000) 灰色的 (每一個都是紅色的, 綠色和藍色).
5. 支援櫃門監控 (開啟/關閉).
6. 支援12位HDMI顏色輸入 (需要9代發送卡).
7. 三線電壓監測: 一個用於系統, 兩個用於機櫃電源.
8. 支援像素故障檢測 (需要專用晶片支援).
9. 支援扁平電纜故障偵測.
10. 兩線風扇轉速監控.
11. 支援雙接收卡熱備份，滿足效能要求較高的螢幕.
12. 支援網路線BER測試.
13. 支援單卡色彩空間轉換.
14. 煙霧監測 (煙霧模組單獨販售), 溫度監測, 濕度監測 (濕度感測器單獨出售)
15. Pass ave EU standards CE-EMC.
