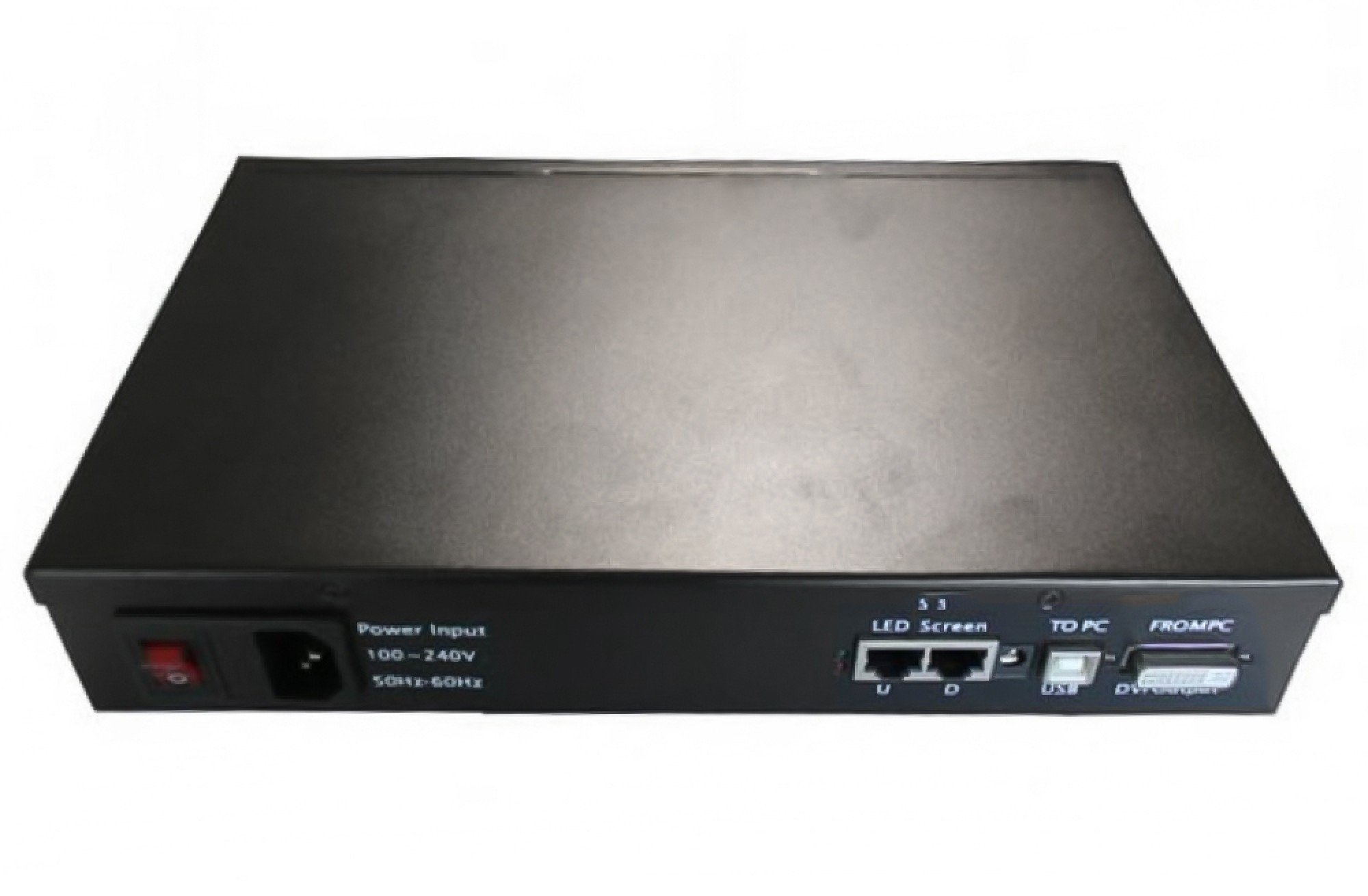

LINSN DS852 Double Color LED Display Sender Box for Advertising Walls

Function of LINSN DS852 Double Color LED Display Sender Box :

1. 5В, 2A The outer box contains one DS802 sending card and a power supply.
2. There is space for an industrial PC, including special mother board and hard disc. With extra mouse 16 grades brightness control.
3. Андоза: 40.5cm by 20.7cm by 5.9cm
4. Features of LINSN DS852 Double Color LED Display Sender Box:
5. Point by point correction by card (box) correction (DS 802 inside)
6. Point by point correction to support a single point, 2 * 2 нукта, 4 * 4 ва 8 * 8-point four correction mode, the maximum correction of 6144
7. points / модул, сурх, сабзу кабуд 256. By card (box) correction is used to display the various inter-tile color correction, сурх, сабзу кабуд 256.
8. Smart identification card function
9. The intelligent identification program can identify the two-color, пур-ранга, virtual lighting and other various driver board a variety of scanning and a variety of signals toward the recognition rate of 99%, a card in hand, to do the screen worry.
10. 65536 (64К) grayscale any setting:
    The customer may never display grayscale to 65536 (64К) adjust the gray, so your display to achieve the best effect.
    Arbitrarily set the refresh rate, phase locking, synchronization function
11. The refresh rate from 10Hz-3000Hz arbitrarily set the refresh rate lock-in feature allows the display refresh locked to an integer multiple of
    the computer monitor refresh rate to eliminate image tearing to ensure that the image perfect reproduction. Phase-locked range of 47Hz-76Hz.
12. Double large load area
    4096 (4К), full-color grayscale 180Hz refresh rate, the maximum with a 512 * 128, is the sixth generation of the product 256 * 128 twice,
    full-color static 16384 (16к) grayscale 300Hz, with a 160 * 64 the sixth generation of 80 * 64 twice. (Шарҳ: the driver board on the high clock 30MHz)
13. Dual-cable hot backup function
    Receiver card A, Б, two-port can be used as input or output ports, two computers can be used to simultaneously control a screen when a computer problem, another computer to automatically take over a computer network can also be used control line, when a cable problem, and the other a cable automatically take over, so that the display of the normal work to be given maximum protection.
14. Multi-screen synchronization and composition of functions
    To support a control send a card with multiple screens can be any combination of the working status of the multi-block-screen synchronized display, бозии мустақил, ва ғайра. ба воситаи тугмаҳои миёнабур барои зуд гузаштан.
15. 256 равшаниро ба таври худкор танзим кунед
    256 Хусусияти танзими равшании худкор ба шумо имкон медиҳад, ки танзими равшаниро самараноктар нишон диҳед.
16. Хусусияти такмилдиҳии онлайни барнома
    Агар тартиби қабули корти намоишӣ бояд навсозӣ шавад, танҳо кушодани қудрати экрани калон LED Studio метавонад раванди навсозӣ, лозим нест, ки корти харобшударо аз экрани калон қабул кунед, метавонад такмил дода шавад.
    Барои шикастани консепсияи анъанавии гузариши DIP.
    Тарҳрезии гузариши DIP, ҳама танзимот тавассути компютер муқаррар карда мешаванд.
17. Функсияи санҷиш.
    Санҷиши ҳамгироии корти қабулкунанда, пас барои санҷидани намоиш кортҳоро нафиристед, буридан, хокистарранг, сурх, сабз, кабуд, равшании пурра, ва ғайра. a variety of
    test mode.
18. Масофаи интиқоли дароз.
    Интиқол то 170 метр (чен карда шудааст) барои таъмини интиқоли 140 метр.
