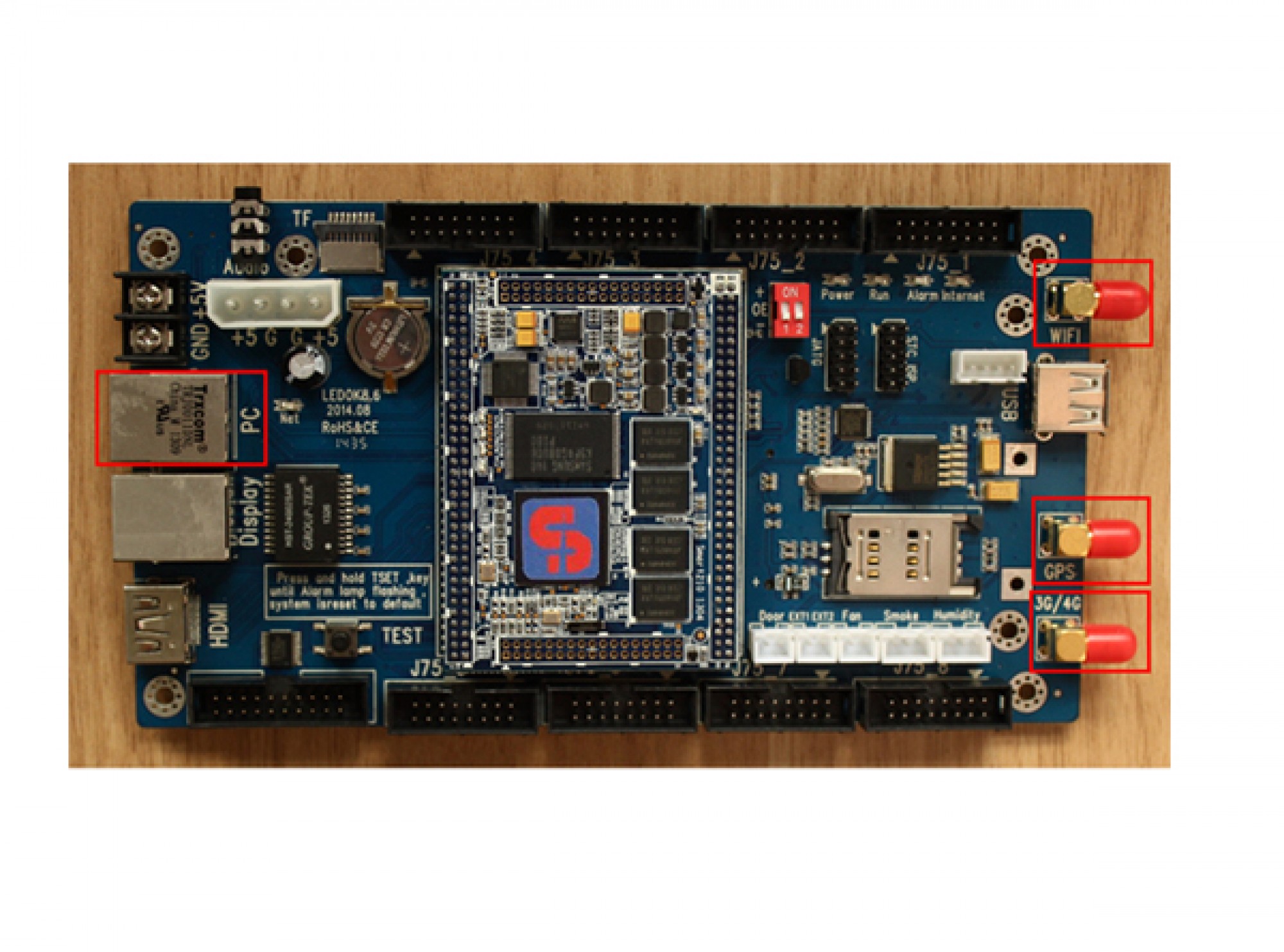

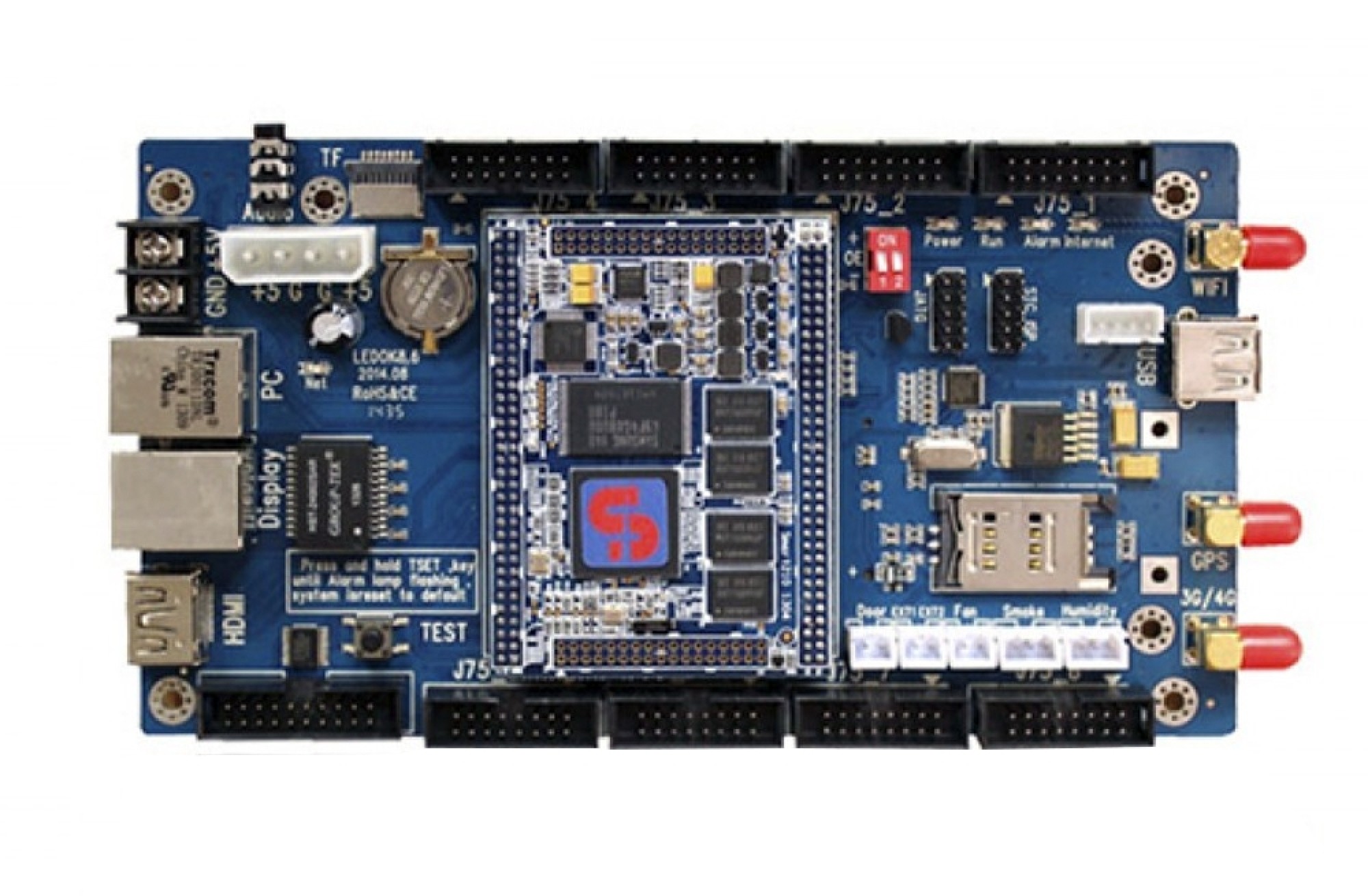

Features of XIXUN Y10 Asynchronous Android LED Display Controller Card:
1) Supporting non-linear editing;
2) Video hardware decoding;
3) Supporting PCI-E 3G modem;
4) WIFI modem on board;
5) Supporting maximum 1280×512 pixels;
6) Supporting HDMI audio and video outputs;
7) Fast communicate rate, totally solve the 3G communication bottle-neck, Packet Switched Domain (PS for short) bearer service under WCDMA mode: maximum rate is 384Kbit/s; HSDPA Max 14.4
Mbps(DL)/Max 5.76Mbps(UL); UMTS Max 384Kbps;
8) Supporting continue transfer from breakpoint, adopting database warehouse management for onboard program so that
could reduce dataflow extremely and optimize storage space;
9) Supporting to connect receiving cards, refresh rate will self adapt to screen resolution, adjust brightness to realize better
display effect;
10) Possessing strong software—-web-base multi-media publishing system (AIPS), so that could manage all terminals, edit and publish program.
Parameters of XIXUN Y10 Asynchronous Android LED Controller Card:
| Technical parameters/
controller type |
Android controller Y10 |
| Typ | Y10 |
| Onboard operation system | Android |
| Communication type | Wire, WIFI, 3G wireless |
| Maximum pixels | 1280×512(fullfärg) |
| HUB | 2 pieces of HUB via
expansion boards |
| Flash onboard | 512MB |
| Expand storage | Expand to 4G via TF card |
| Maximum gray level | 4096 |
| audio | YES |
| Sensor | Temperature and moisture,
brightness auto adjust, exchange program via infrared remote |
| HDMI outputs | YES |
| Non-linear editing | YES |
| Uppdateringshastighet | >4KHZ |
| Brightness loss | <10% |
