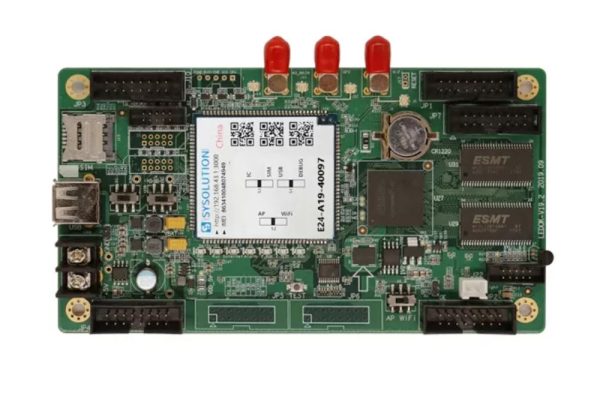

Xixun Sysolution E24 LED Control Card For Bus Rear Screen Overview:
With the development of LED car displays, in some areas, it needs to support wireless transmission, remote cluster control, docking with third-party platform applications, need control cards access the network and GPS positioning through Wi-Fi or 4G, and need to be controlled by mobile phone. Xixun E24 is tailor-made for these needs, leading the mobile car screen market. Make user control easier.
E24 uses Qualcomm MSM8909 platform solution. The MSM8909 processor is manufactured using the 28nmLP CMOS process, and the quad-core frequency is 1.1GHz. The memory supports 1GB + 8Gb (compatible with 2GB + 16Gb) LPDDR3. The chip is a highly integrated product, can support GSM, WCDMA, TD-SCDMA, EVDO, TDD-LTE, FDD-LTE and other standards.
Xixun Sysolution E24 Dedicated Control Card For Bus Rear Screen Features:
- Integrerad 4+ 1 HUB75E gränssnitt;
- Dedicated for car screen, with “Passenger and “No passenger??independent interfaces;
- Onboard WiFi module, realize wireless communication, support AP mode, tation mode;
- Support secondary development, support remote cluster control of cloud platform;
- Built-in Web Sever, stöd för lokal produktion av webbsidor, support computer, iPhone, Android phone, tablet stand-alone program editing, cross-platform system fully compatible;
- Stöd fullfärg statisk till 32 scan module;
- Industrial-strength onboard Flash: 8Gb
Xixun Sysolution E24 Dedicated Control Card For Bus Rear Screen Parameter:
| Produktegenskaper | Beskrivning |
| Modell | E24 |
| Load Pixels | 256*32 No support for cascade receiving card (with four 75 gränssnitt) |
| Kommunikation | 4G full Netcom, WiFi, U disk |
| Platform | Qualcomm MSM8909 |
| Cpu | Quad-core A7(32bit)Quad core 1.1GHz |
| GPU | A307 409,6 MHz |
| System Memory | 8GB Emmc+1GB LPDDR3 |
| Operating System | Android 5.1 |
| WiFi | IEEE 802.11b/g/n 2.4G |
| GPS | GPS/Beidou/Glonass |
| 3G/4G frequency band (Kina) | -CH(Kina) |
| FDD-LTE:B1/3 | |
| TDD-LTE:B38/39/40/41 | |
| TDSCDMA:B34/39 | |
| WCDMA:B1/8 | |
| CDMA 1X/EVDO:BC0 | |
| GSM:B3/5/8 | |
| Audio | Stöd |
| Kamera | Stöd |
| Weather Forecast | Stöd |
| Display content read back | Stöd |
| Configuration Software | Easyboard |
