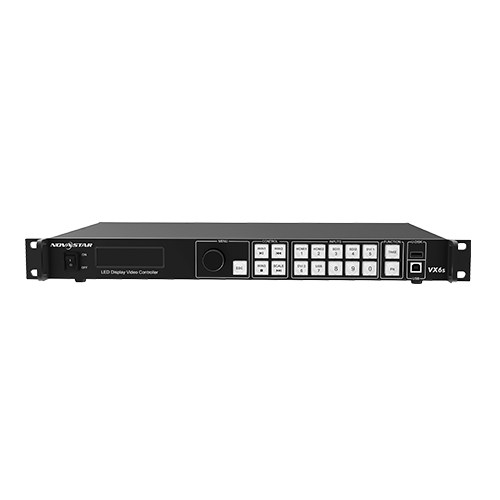

Novastar VX6S LED Video Processor NovaStar Software V-Can Handy Studio Mode User Manual Details.

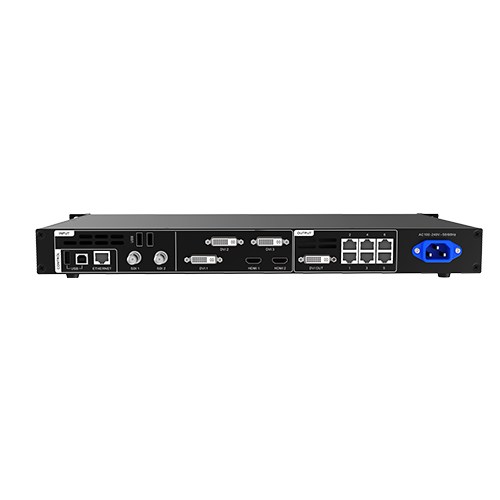

- Ingångar: 2x3G-SDI, 2x HDMI3, 1xDVI, 1x DVI(IN+LOOP), 1xUSB
- Produktion: 6x Gigabit Ethernetports , 1x DVI for monitoring
- Support PVW or PGM monitoring, and the monitoring resolution is adjustable.
- Video output capacity: 3,900,000 pixlar, width/height: 4096 pixlar
- 2x system modes
−Direct mode: Support display content monitoring.
−Switcher mode: Switch the PVW to PGM by pressing only the TAKE button.
- Screen brightness adjustment
- Multiple VX6s units linked to load a screen
- 16x user presets saved
| Specifikationer | ||
| Elektriska parametrar | Energiförbrukning | 65 W |
| Strömförsörjning | AC100V-240V~ 50/60Hz | |
| Driftmiljö | Temperatur | 0°C to +45°C |
| Fuktighet | 20% RH det 90% RH non-condensing | |
| storage environment | Fuktighet | 10% RH det 95% RH non-condensing |
| Fysiska specifikationer | Mått | 483.6 mm × 275.1 mm × 45.0 mm |
| Nettovikt | 2.71 kg | |
| Total weight | 5.9 kg | |
| Bullernivå | 40 dB(En) | |
| Förpackningsinformation | Bärväska | 530 mm × 370 mm × 140 mm |
| Tillbehörslåda | 402 mm × 347 mm × 65 mm Accessories include:
one power cable, one USB cable, one DVI cable one HDMI cable one Ethernet cable one Quick Start Guide one Certificate of Approval |
|
| Förpackningslåda | 550 mm × 400 mm × 175 mm | |
| Certifieringar | Ces, Rohs, FCC, IC, RCM, CB, KC | |

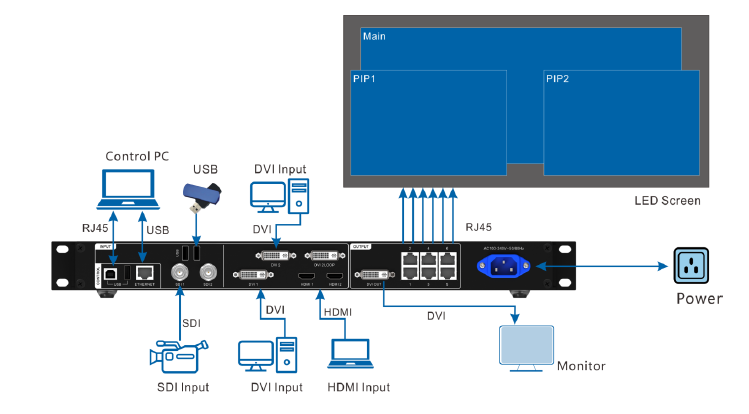

Novastar VX6S LED Video Processor Application
- Novastar VX6S Controller Specifications V1.3.1.
