Novastar A10S Plus LED Receiving Card High-end Large LED Panel is a high-end receiving card developed by NovaStar. It has a small size and features a large loading capacity, with a single card loading up to 512×512 pixels. It can support up to 32 groups of parallel data or 64 grupper av seriella data.
Novastar A10S Plus High-end Large LED Panel Receiving Card Features:
Advanced Hardware Design:
- The small hardware footprint saves cabinet space and is suitable to a variety of applications.
- Uses dust-resistant high-density connector to limit effects of dust and vibration, resulting in high stability and reliability.
- Integrated network transformer features simple design and improved electromagnetic compatibility.
Användbar mjukvarudesign:
- Stöder upp till 1/64 Avsöka.
- Supports the following functions when working with NovaLCT (V5.2.0 and later)
- Supports random order scanning of module.
- Lights the modules with data row extracting and channel extracting.
- Supports precise grayscale correction.
- Supports individual Gamma adjustment for RGB.
- Supports bit error detection.
- Stöder HDR-funktion.
- Supports low latency function.
- Supports 18Bit+ to display image with high brightness or low grayscale.
- Supports ClearView high image quality display.
- Supports LVDS transmission (supported by dedicated firmware program).
- Supports smart module (supported by dedicated firmware program).
- Supports quick seam correction.
- Stöder 3D-funktion
- Supports auto module calibration.
- Supports Mapping function.
- Supports setting of pre-stored image on receiving card.
- Supports module Flash management.
- Supports voltage and temperature monitoring of card without use of peripherals.
- Supports cabinet LCD.
- Supports image rotation in 90° increments.
- Supports display rotation at any angle.
Novastar A10S Plus High-end Large LED Panel Receiving Card Parameter:
| Maximal lastkapacitet | 512×512 pixlar | |
| Ingångsspänning | DC 3.3 V-5.5 V | |
| Märkström | 0.5 En | |
| Elektriska parametrar | Nominell strömförbrukning | 2.5 W |
| Driftmiljö | Temperatur | -20°C-90°C |
| Fuktighet | 10% RH-90 % RH, icke-kondenserande | |
| Lagringsmiljö | Temperatur | -25°C-25°C |
| Fuktighet | 10% RH-90 % RH, icke-kondenserande | |
| Förpackningsinformation | Förpackningsspecifikationer | An antistatic bag and anti-collision foam are provided for each receiving card. Each packing box contains 40 receiving cards. |
| Förpackningslådans mått | 378.0 mm × 190.0 mm × 120.0 mm | |
| Mått | 80.0 mm × 45.0 mm ×7.3 mm | |
| Nettovikt | 22.3 g | |
| Certifieringar | Rohs, EMC klass B | |

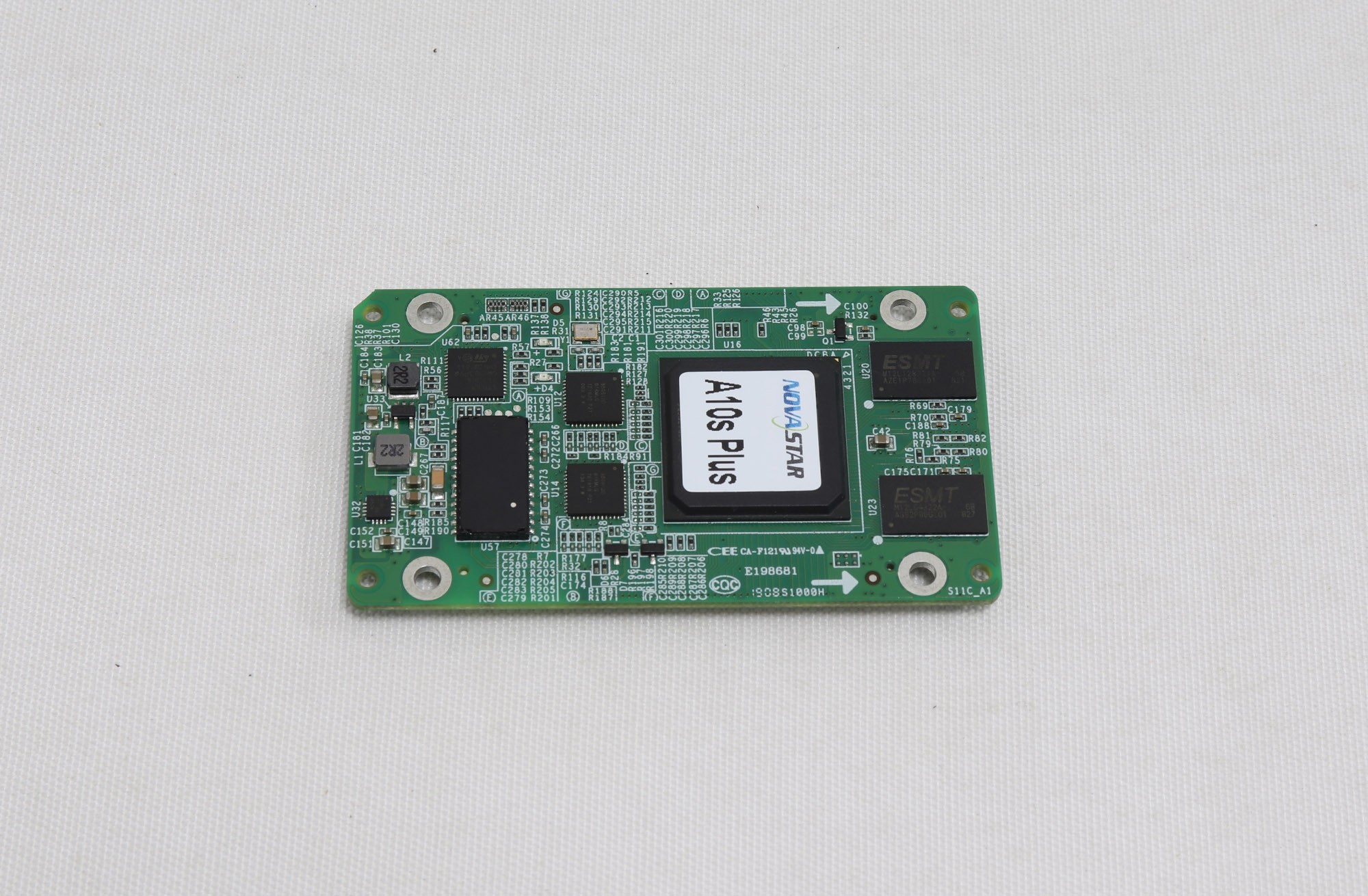

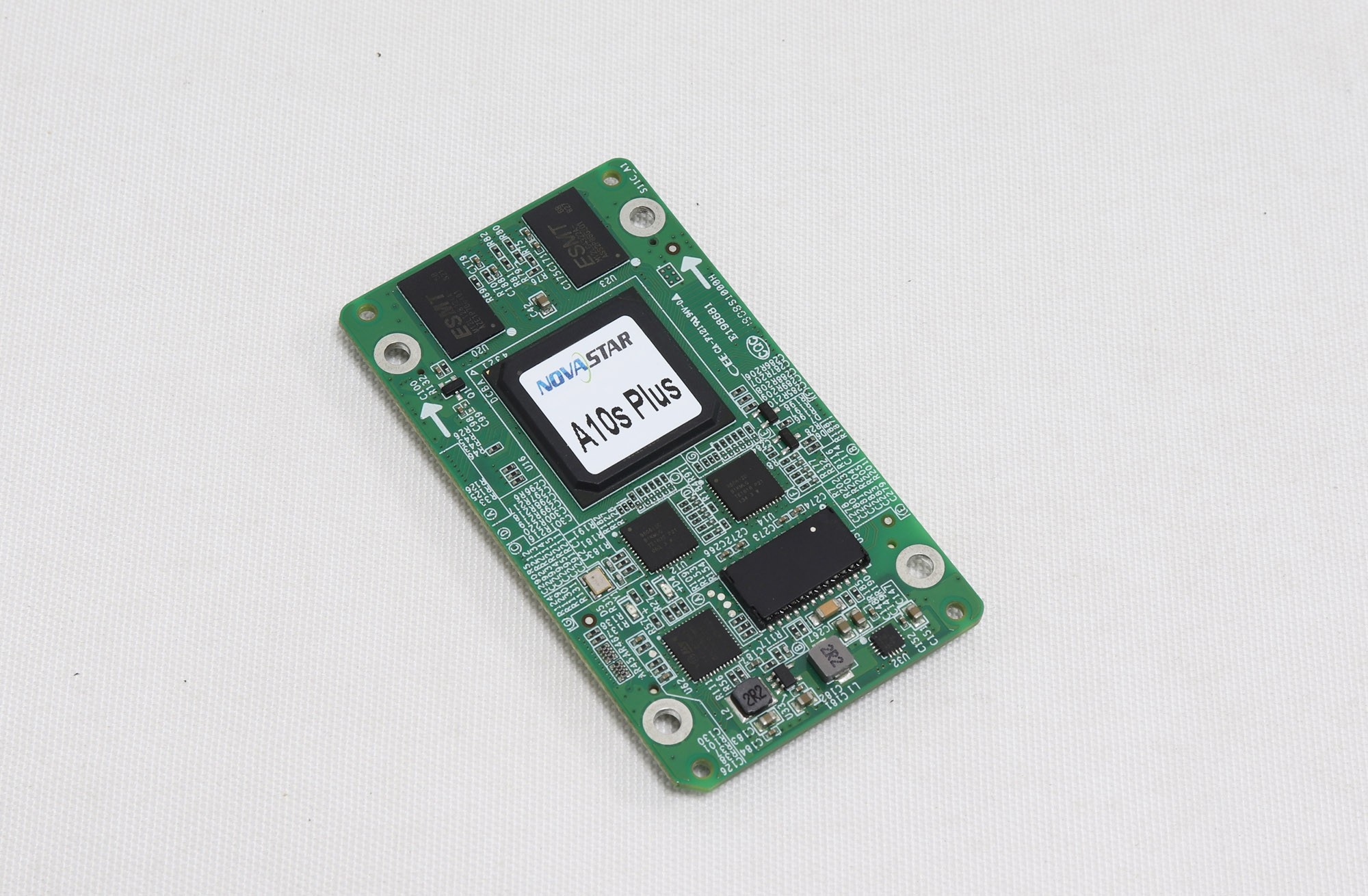

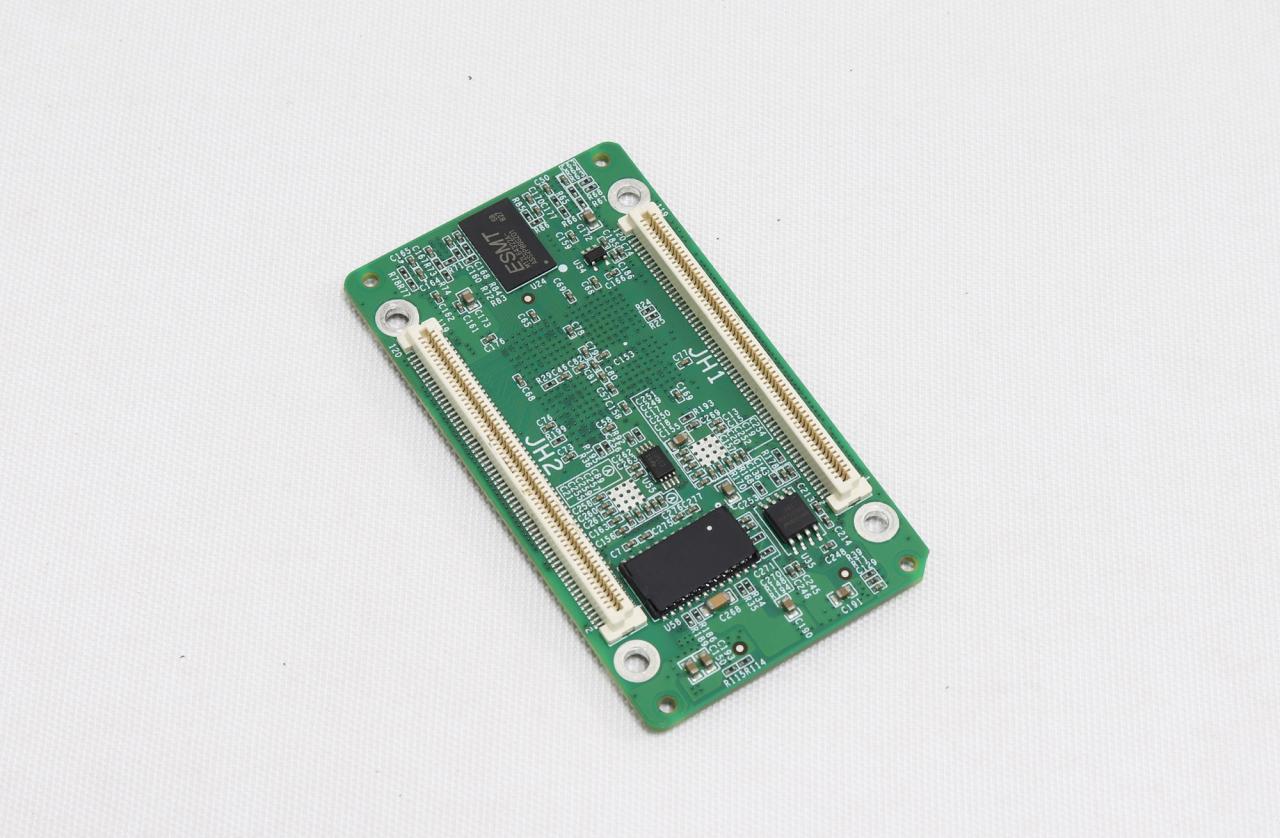

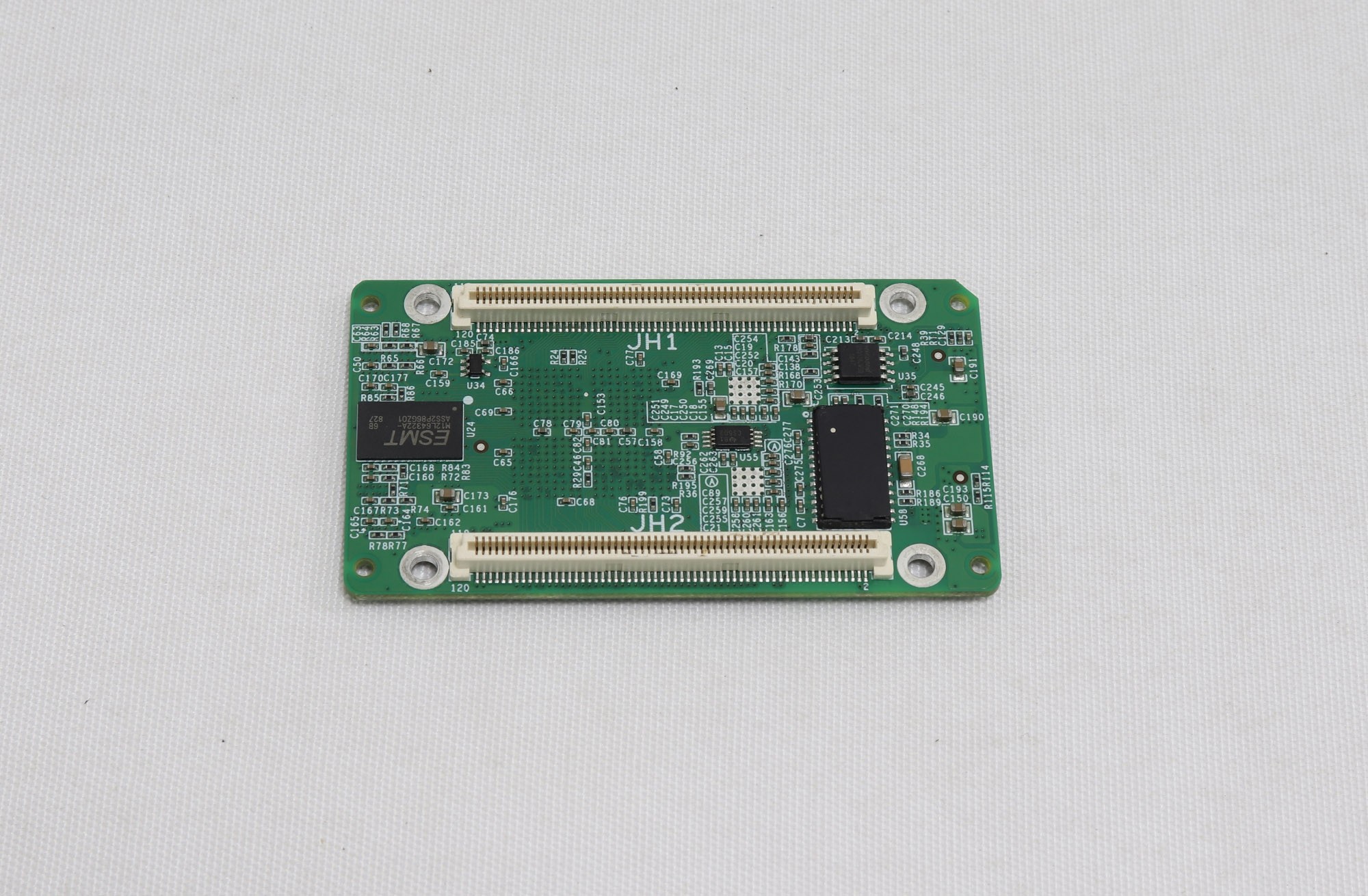

More Pictures of Novastar A10S Plus Card High-end Large LED Panel:
