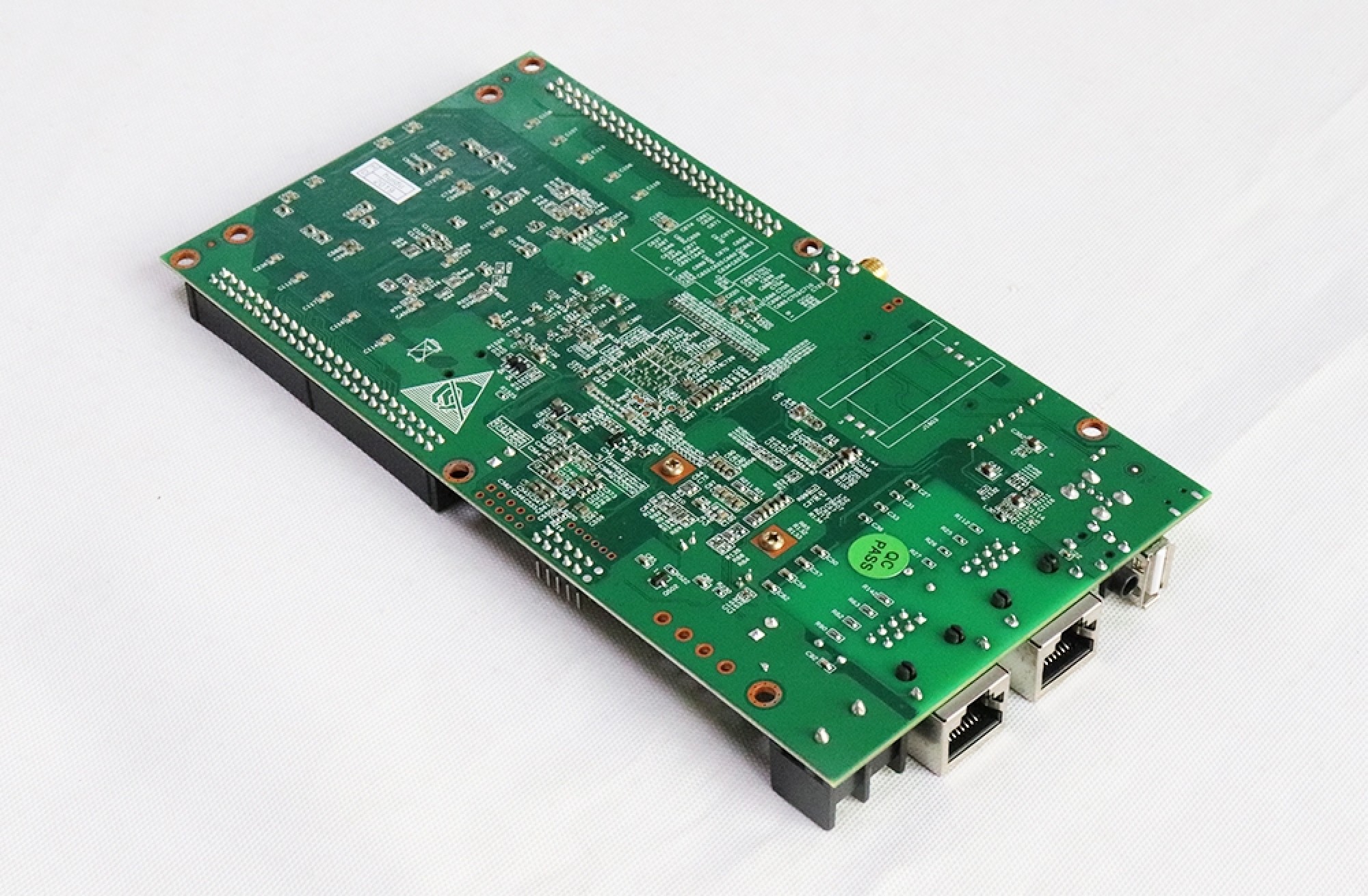

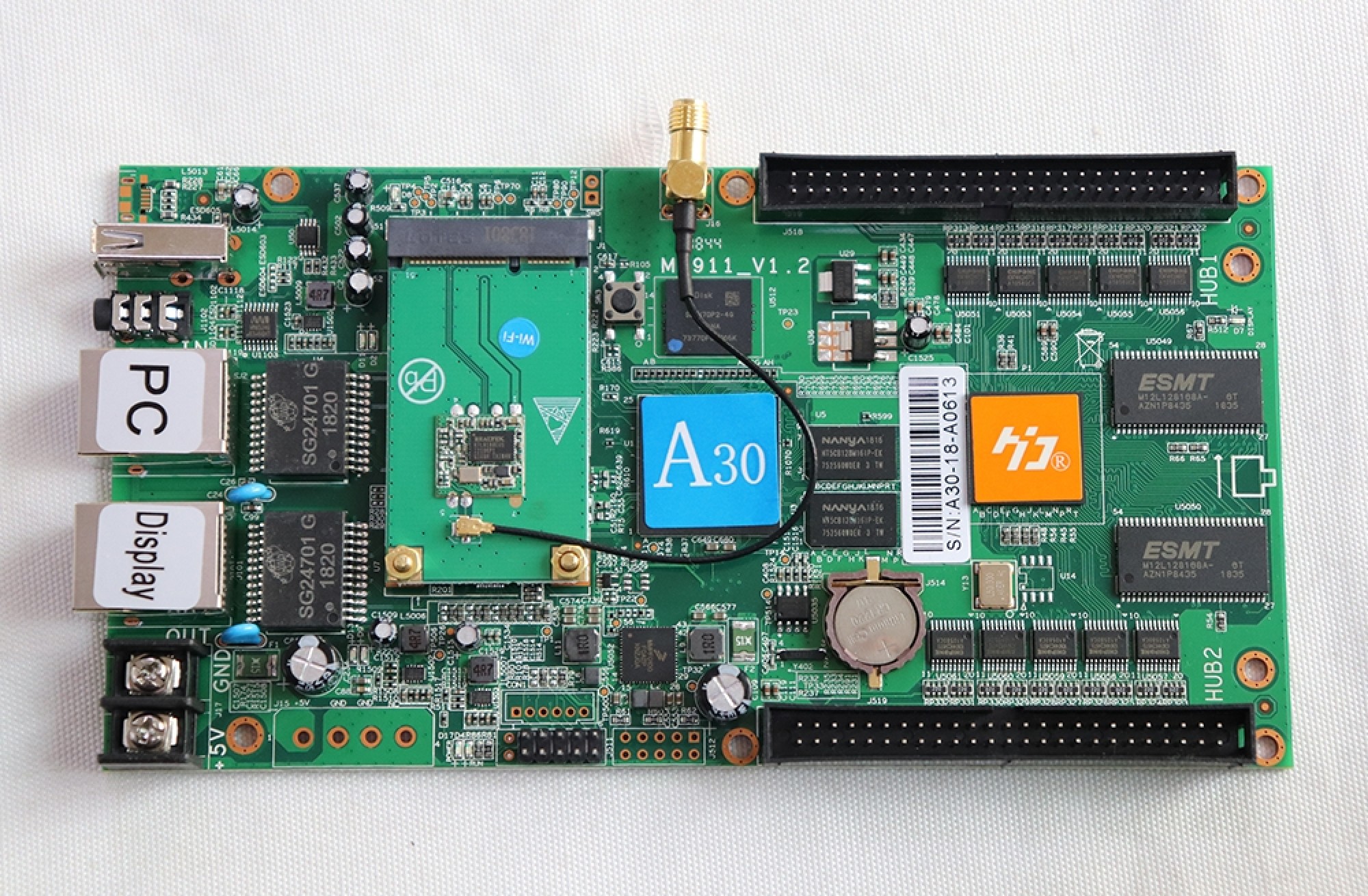

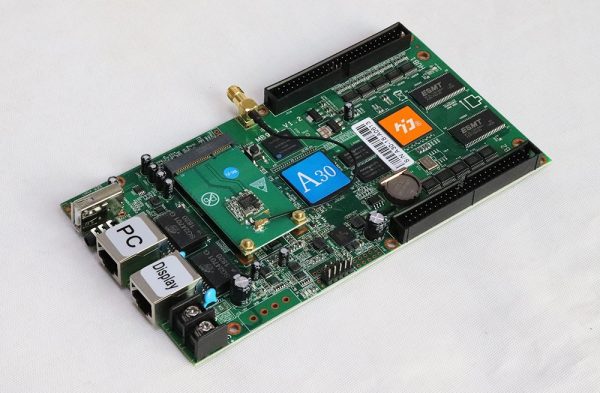

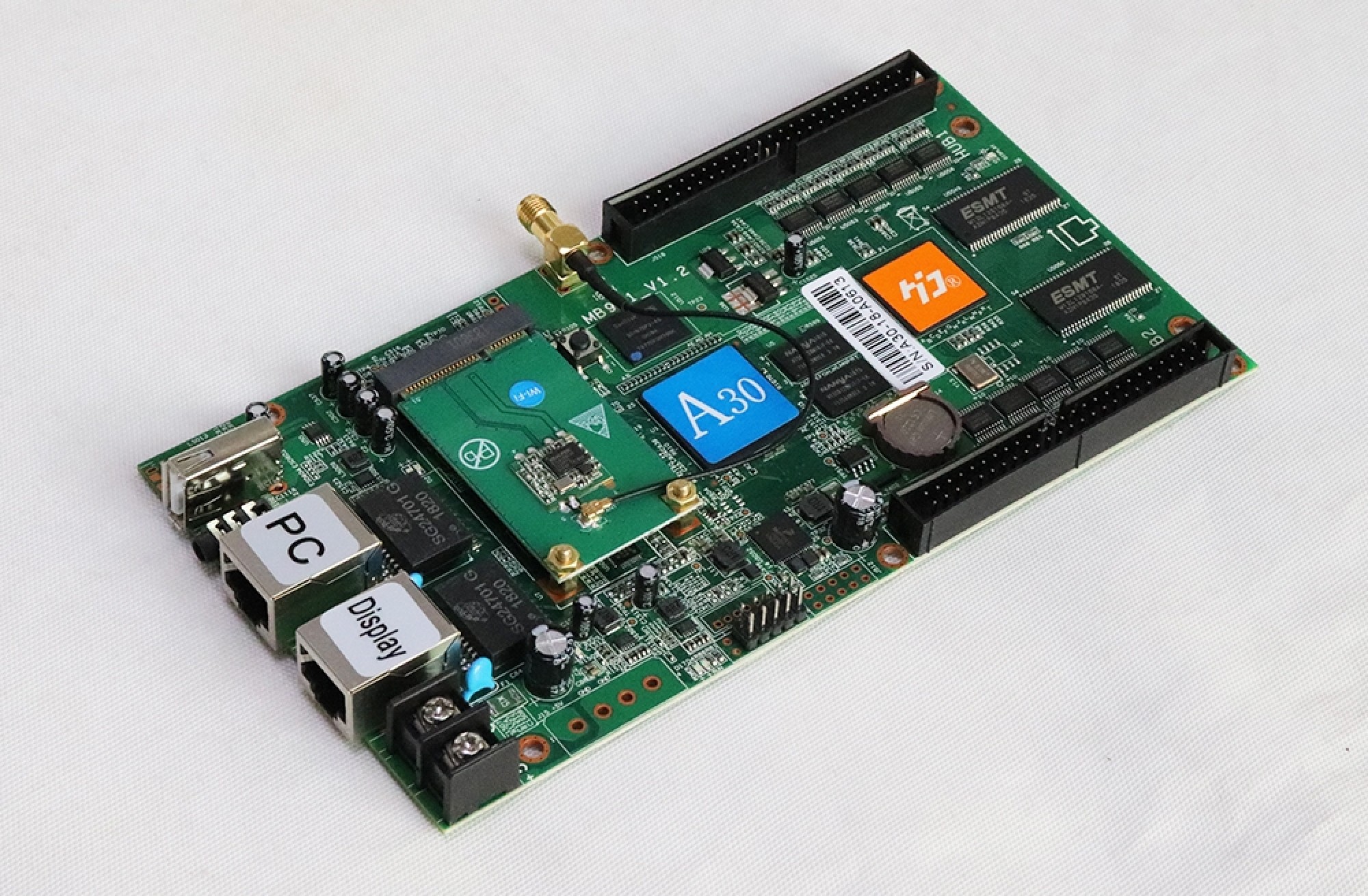

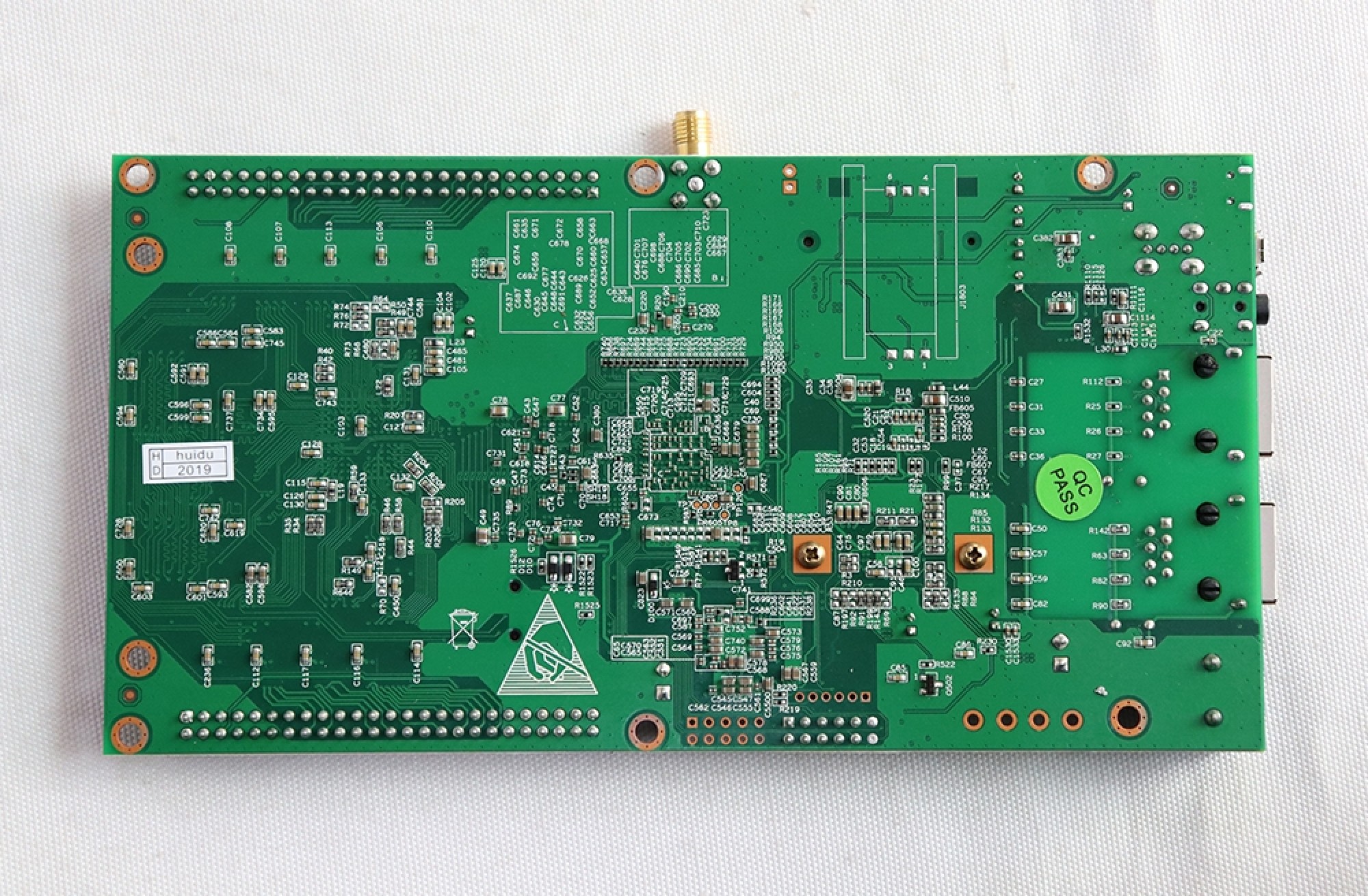

Huidu A30 Large LED Display Sign Asynchronous Controller Card Features
1.Support Indoor & outdoor full-color & single/dual color module &Virtual module
2.Support video,Animation, Grafik,Images,Text, etc.
3.Support 0~65536 gray level
4.U-disk to infinitely expand the memory storage , U-disk plug-and-play
5.Support Standard two-track stereo output
6.No need set IP, HD-A30/ A30+ could be identified by controller ID automatically
7.Support network cluster management and Internet/3G remote management.
Huidu A30 Large LED Display Sign Asynchronous Controller Card Features Details Parameter
| Typ | Inomhus & outdoor full-color & single/dual
color module &Virtual module SupportMBI5041/5042,MBI5050, MY9221.MY9268 etc and PWM |
| Skanningsläge | Stöd 1-32 scan randomly and static |
| Sending card
Kontrollområde |
HD-A30: 1024W*512H
HD-A30+:1024W*512 2048W*256H 512W*1024H |
| Receiving card
Range(1PCS) |
HD-R500: 256W*128H
HD-R501: 256W*192H Usually 1PCS Cabinet use 1PCS Receiving card |
| Gråskala | 0-65536 |
| Videoformat | Avi, Wmv, Mp4, 3GP, ASF, Mpg, Flv,
F4V, MKV, MOV, ATT, Vob, TRP, TS, WEBM, etc. |
| Image format | Bmp, GIF, Jpg, JPEG, Png, GIF,PBM,
PGM,PPM,XPM,XBM etc. |
| Text | Text and Image being edited directly.
Document like Word, Excel, PPT,PPTX; txt, rtf, html etc. can be edited as well after importing directly. |
| Time | Classic Analog clock, digital clock
and various of clock with image background |
| Ljudutgång | Double track stereo audio output |
| Minne | 4G Flash memory ; Indefinite
expanding of U-disk memory. |
| Kommunikation | 10/100M/1000M RJ45 Ethernet;
3G;Internet;LAN |
| Arbetsspänning | 4.5-5.5V |
| Arbetstemperatur | -20-80 |
|
Hamn |
I:5V Power x1, 10/100M/1000M
RJ45 x1, USB 2.0 x1,Testing button x1 OUT:1000M RJ45 X1,Audio x1, 50PIN Port x 2 |
| Programvara | HDPlayer |
Huidu A30 Large LED Display Sign Asynchronous Controller Card Features Model Selection Reference
| Modell | Control range Pixel
（Width*Height |
3G sub model |
| HD-A30 | 1024W*512H
( Itself also can be working as 1PCS receiving card ) |
HD-A30W（WCDMA
HD-A30C（CDMA 2000 |
| HD-A30+ | 1024W*512H / 2048W*256H /512W*1024H
(It self can’t work as receiving card) Support Linsn /color light Receiving card |
HD-A30+W（WCDMA??/sid>
HD-A30+C（CDMA 2000??/td> |
| HD-R500 | Suggest 56W*128H |
/ |
| HD-R501 | Suggest 56W*192H |
