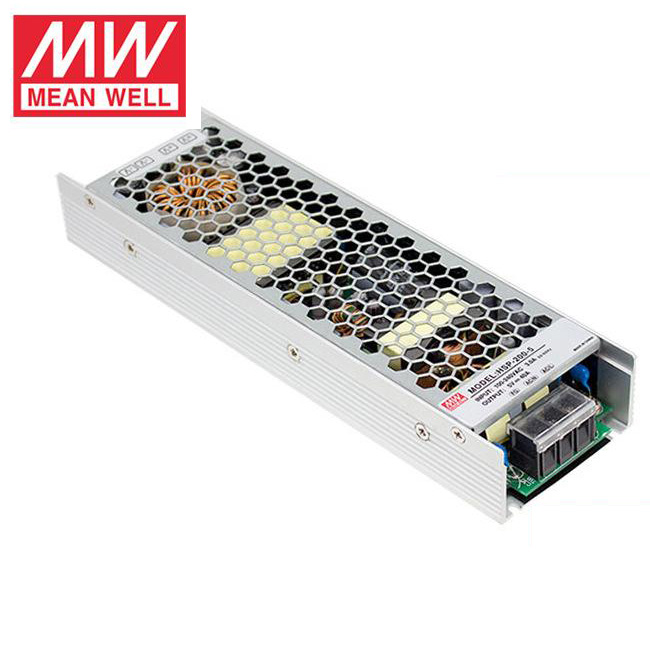

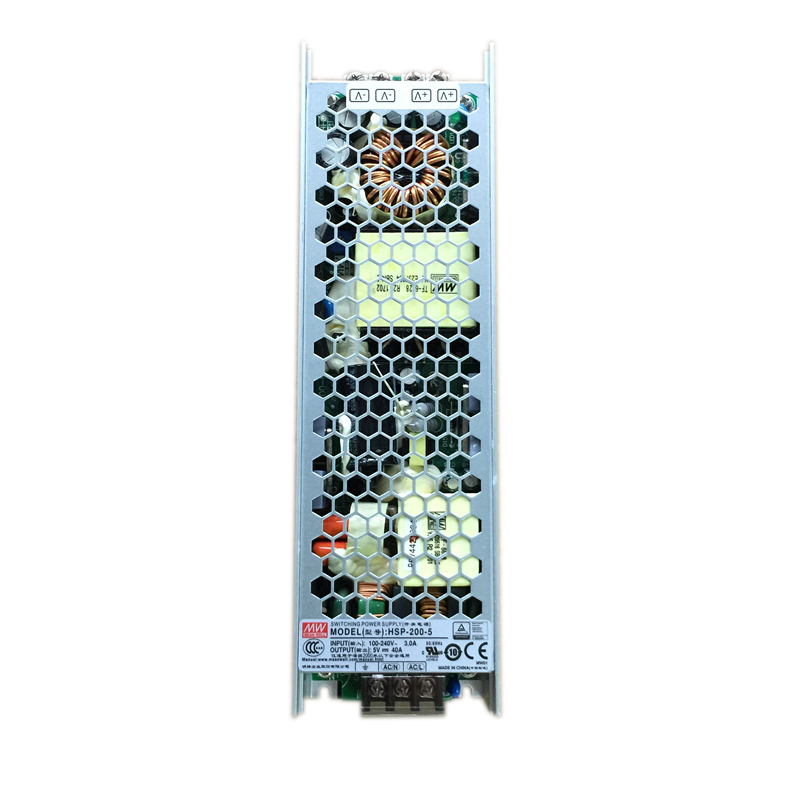

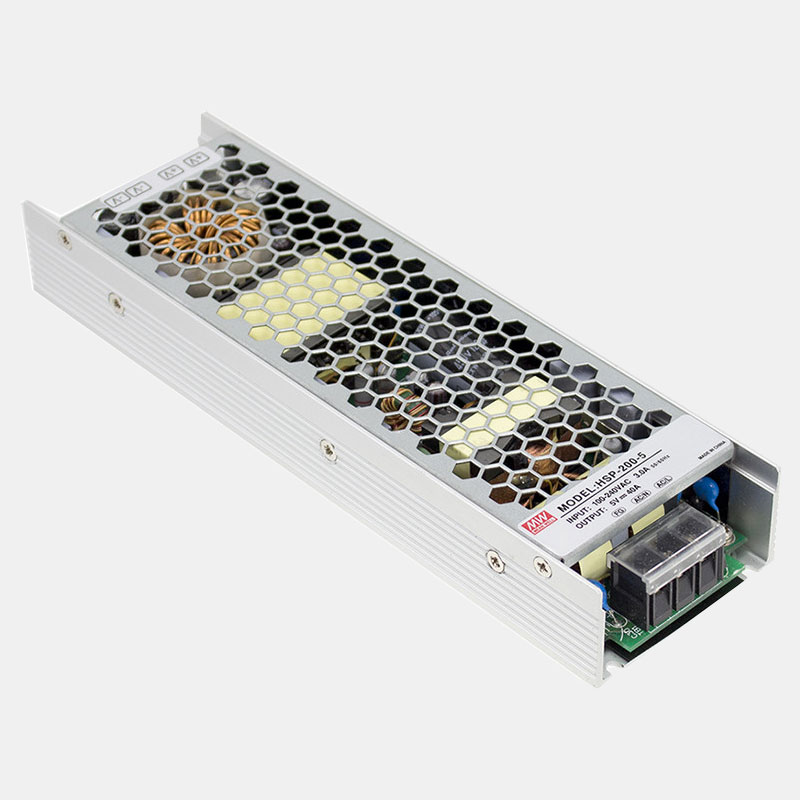

MeanWell HSP-200-5 Switching LED Panel Power Supply.
Model Number:HSP-200-5.
Case Size:210×62×31mm.
Makt: 200W
Utgangstype:Enkelt
Utgangsstrøm:40EN
Utgangsspenning:5V
Utgangseffekt:101 ??200W
Utgangsfrekvens:47 ~ 63Hz
Inngangsspenning:90~264VAC
Sertifisering:UL TUV CB EMC CE
Effektivitet:88.5%
Ouput Voltage Adj.
Spekter:4.5~5,5V
Søknad:Industries mechanica automation, osv
Trekk:Low profile 31mm;PFC; Konform belagt
MeanWell HSP-200-5 Switching LED Panel Power Supply Product Specifications :
| Modell | HSP-200-5 | |
| Inndata | Voltage Range | 85~ 264VAC 120~ 370VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| AC CURRENT (Typ.) | 3.5A/115VAC 1.5A/230VAC | |
| LEKKASJØR | <2ma / 240VAC | |
| INNSTRØMSTRØM (Typ.) | COLD START 65A/230VAC | |
| EFFEKTIVITET (Typ.) | 88.5% | |
| Produksjon | VIRKELIG | 40EN |
| DC SPENNING | 5V | |
| NOEMPEKT | 200W | |
| GJELDENDE OMRÅDE | 0-40EN | |
| VOLTAGED ADJ. SPEKTER | 4.5~ 5.5V | |
| RIPPLE & STØY (maks.) Merk.2 | 150mVp-p | |
| VOLTAGE TOLERANCE Note.3 | ±2,0 % | |
| LOAD REGULATION Note.5 | ±1.5% | |
| LINE REGULATION Note.4 | ±0,5 % | |
| HOLD OPTID | 20ms at full load | |
| OPPSETT, RISE TIME | 600ms,40ms at full load | |
| Beskyttelse | OVER VOLTAGE | 5.5~ 7V Beskyttelsestype :Shut off 0/p volltage, clamping by zener diode |
| OVER LOAD | Above 150% rated output power Beskyttelsestype :Hiccup mode, recovers automatically after fault condition is removed |
|
| Sikkerhet | TÅLE SPENNING | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| SAFETY STANDARDS Note 6 | UL60950-1, CB(IEC60950-1),CCC GB4943, 1:2011 godkjent | |
| ISOLASJONSMOTSTAND | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% Rh | |
| EMC STANDARDER | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254 | |
| Environment | ARBEIDSFUKTIGHET | 20 ~ 90% RH non-condensing |
| ARBEIDSTEMP | -20 ~ +70 (Refer to output load derating curve) | |
| TEMP. KOEFFISIENT | ± 0.03% | |
| STORAGE TEMP., FUKTIGHET | -40 ~ +85 , 10 ~ 95% Rh | |
| VIBRASJON | 10 ~500Hz, 2G 10min./1cycle, 60min. hver langs X, Y, Z-akser | |
| Andre | DIMENSJON | 215*62*31mm (L*B*H) |
| MTBF | 1608.8K hrs min. MIL-HDBK-217F (25 ) | |
| Note | jeg. Al parameters NOT specialy mentioned are measured at 230VAC input. rated load and 25??of ambient temperature. 2 Ripple & noise are measured at 20MHz Of bandwidth by usig a I2??twisted pair-wire terminated with a 0.1UI & 470 Parallel capacitor 3. Tolerance : includes set up tolerance. line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% til 100% rated load. 6. For the request of GEl4943.1.the power soppy is only suable for use in the altitude 2000m below and the non tropical climate condrtion. 7. The power supply is considered a component which will be instated into a final equipment The final equipment must be re-confirmed that it still mesh EMC drectives. For guidance on how to perform the EMC tests. please refer to ‘EMI testing of component power supplies??/td> |
|
