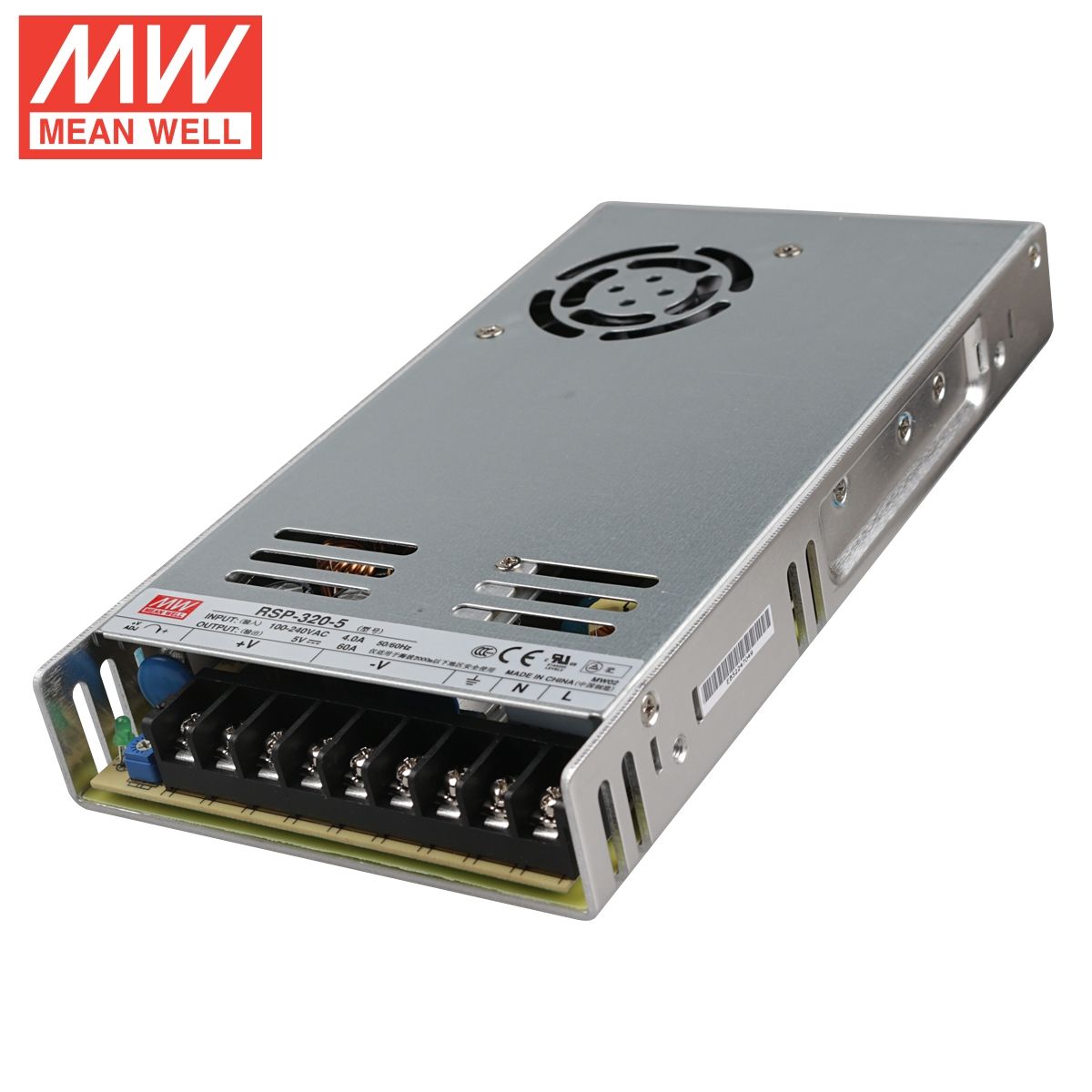

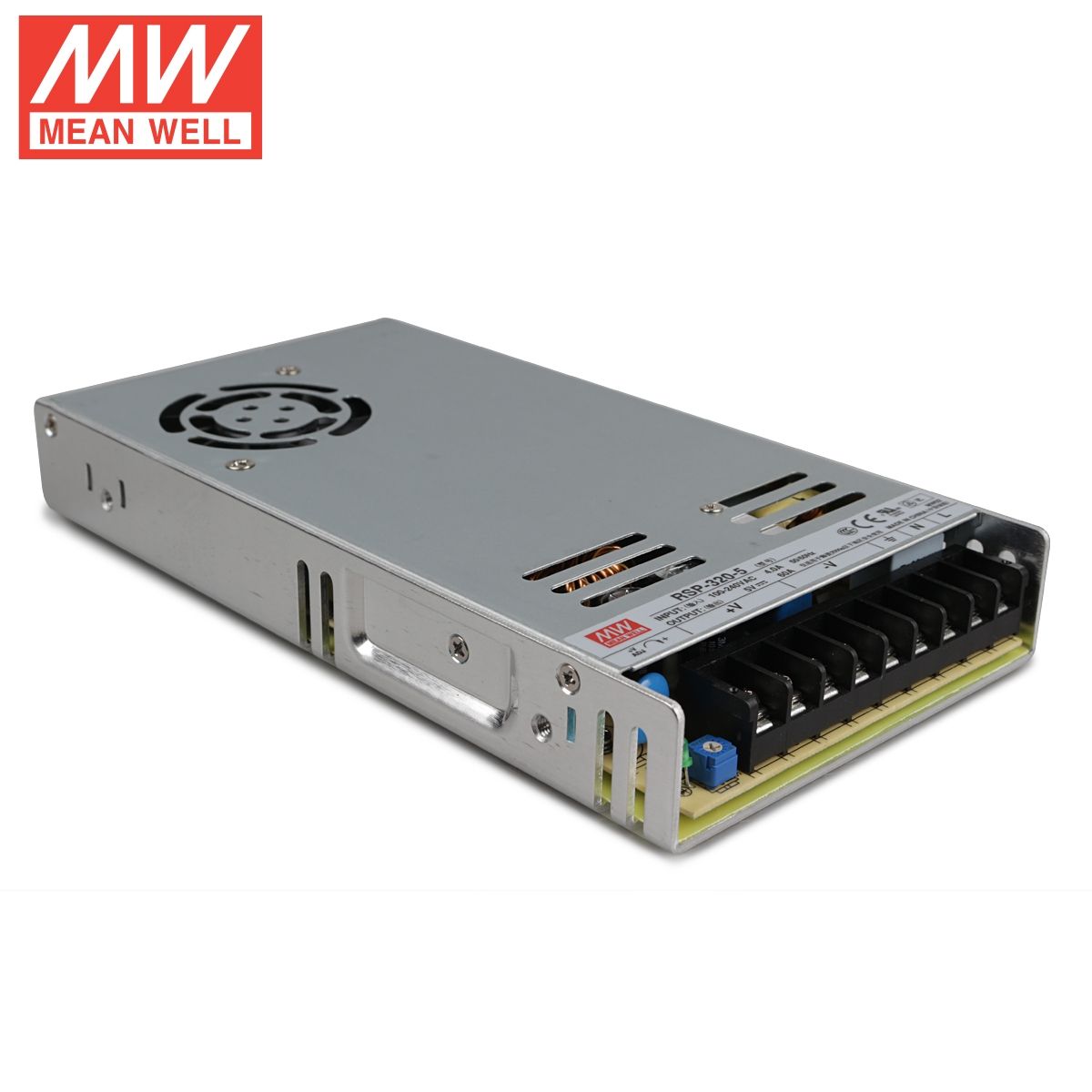

MeanWell RSP-320-5 5V 60A 300W Switching LED Module Power Supply.
Kawża:806 Daqs:215× 115 × 30mm.
Qawwa: 300W.
Effiċjenza għolja sa 90%.
Funzjoni PFC attiva inkorporata, PF>0.95.
Indikatur LED għall-enerġija mixgħul.
Forced air cooling by built in DC Fan with fan speed control function.
1U profil baxx 30mm
Effiċjenza għolja, Long life and high reliability
Protezzjonijiet: Ċirkwit qasir / Tagħbija żejda / Vultaġġ żejjed / temperatura żejda.
1 sena garanzija
MeanWell RSP-320-5 5V 60A 300W Switching LED Module Power Supply Product Specifications :
| Mudell | RSP-320-5 | |
| Input | Voltage Range | 85~ 264VAC 120~ 370VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| AC CURRENT (Tip.) | 3.5A/115VAC 1.5A/230VAC | |
| KURRENTI TAT-TAXXA | <2mA / 240VAC | |
| KURRENTI INRUSH (Tip.) | COLD START 65A/230VAC | |
| EFFIĊJENZA (Tip.) | 83% | |
| Output | KURRENTI RATED | 60A |
| vultaġġ DC | 5V | |
| QAWWA RATED | 300W | |
| FIRXA KURRENTI | 0-60A | |
| VOLTAGED ADJ. FIRXA | 4.5~ 5.5V | |
| RIPPLE & ĦOSS (max.) Nota.2 | 150mVp-p | |
| VOLTAGE TOLERANCE Note.3 | ±2.0% | |
| LOAD REGULATION Note.5 | ±1.5% | |
| LINE REGULATION Note.4 | ±0.5% | |
| ŻOMM IL-ĦIN | 20ms at full load | |
| SETUP, RISE TIME | 600ms,40ms at full load | |
| Protezzjoni | OVER VOLTAGE | 5.75~ 6.75V Tip ta' protezzjoni :Shut off 0/p volltage, clamping by zener diode |
| OVER LOAD | Above 150% rated output power Tip ta' protezzjoni :Hiccup mode, recovers automatically after fault condition is removed |
|
| Sigurtà | IL-VOLTAĠĠ JIŻISTGĦU | I / P-O / P.:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| SAFETY STANDARDS Note 6 | UL60950-1, CB(IEC60950-1),CCC GB4943, 1:2011 approvati | |
| Reżistenza għall-iżolament | I / P-O / P., I / P-FG, O / P-FG:100M Ohms / 500VDC / 25 / 70% RH | |
| STANDARDS EMC | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254 | |
| Environment | L-UMDITA TA ' XOGĦOL | 20 ~ 90% RH non-condensing |
| XOGĦOL TEMP | -20 ~ +70 (Refer to output load derating curve) | |
| TEMP. KOEFFIĊJENT | ± 0.03% | |
| STORAGE TEMP., L-UMDITÀ | -40 ~ +85 , 10 ~ 95% RH | |
| VIBRAZZJONI | 10 ~ 500Hz, 2G 10min./1cycle, 60min. kull wieħed tul X, Y, assi Z | |
| Oħrajn | DIMENSJONI | 215*115*30mm (L*W*H) |
| Mtbf | 1608.8K hrs min. MIL-HDBK-217F (25 ) | |
| Nota | I. Al parameters NOT specialy mentioned are measured at 230VAC input. rated load and 25??of ambient temperature. 2 Ripple & noise are measured at 20MHz Of bandwidth by usig a I2??twisted pair-wire terminated with a 0.1UI & 470 Parallel capacitor 3. Tolerance : includes set up tolerance. line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% biex 100% rated load. 6. For the request of GEl4943.1.the power soppy is only suable for use in the altitude 2000m below and the non tropical climate condrtion. 7. The power supply is considered a component which will be instated into a final equipment The final equipment must be re-confirmed that it still mesh EMC drectives. For guidance on how to perform the EMC tests. please refer to ‘EMI testing of component power supplies??/TD> |
|
