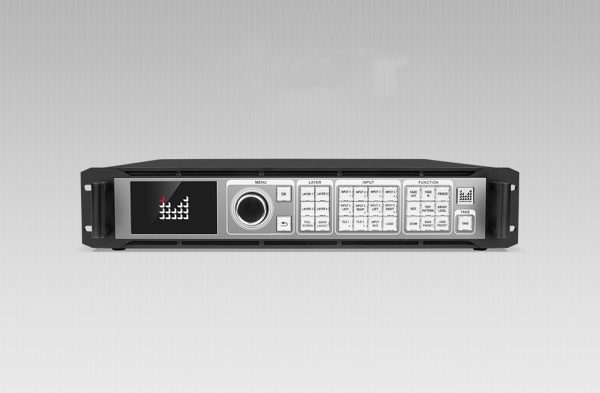

Magnimage LED-W4000 LED Wall Screen 8K x 2K Video Processor Features:
8K x 2K mosaic outputs: W4000 has two output modes: DVI output and HDMI output. The outputs are divided into two groups, each group including 4 DVI and 2 HDMI 2.0.
Multiple input ports: ДВИ-Д (4K×1K/60Hz), DP1.1, HDMI1.4, ИПП .
Different working modes are available: Mosaic mode, HDMI Switcher mode, Backup mode.
Mosaic mode: 8K×2K/60Hz input and output pixel-to-pixel display.
HDMI Switcher mode: 4K preview/switch, seamless switching between 3 layers and 3 слоеви.
Backup mode: input signal hot backup or manual backup and seamless switching between input signal or tile input.
Multi-machine cascading mosaic synchronously, and Take seamless switching.
HDR 10.
10 BIT processing.
HDCP1.4 & 2.2 усогласен.
Touched screen operation.
Supports saving & loading of maximum 20 претходно поставени, and time tasks.
Supports setting of brightness, Гама, контраст, сатурација, color temperature etc., low light level and high gray level.
Built-in test pattern.
Supports pixel point acquisition, real-time display of RGB values of pixels at any position in the output window.
Supports PC software control, network port and RS232 connection.
Supports LOGO, chroma key function.
Supports USB upgrade.
Magnimage LED-W4000 LED Wall Screen 8K x 2K Video Processor Parameter:
|
Пристаниште
|
Количина | Резолуција |
| ДВИ | 4 | 3840×1080/60Hz and EDID management |
| ДП | 4 | 3840× 1080/60 Hz. 840×2160/30Hz and EDID management |
| HDMI | 3 | 3840×1080/60Hz and EDID management |
| ИПП | 1 | 480i/60Hz 576i/50Hz 720p/60Hz 1080i/50Hz/60Hz 1080p/50Hz/60Hz(3Г ИПП) |
|
Проширете ја индикацијата за внесување
|
||
|
Пристаниште
|
Количина | Резолуција |
| DP1.2 | 2 | 4096×2160/60Hz 680×1080/60Hz and EDID management |
| HDMI2.0 | 2 | 3840×2160/60Hz and EDID management |
| Each group extendable 1xDP, 1xHDMI, 1xHDMI loop, максимум 2 групи | ||
|
Индикација за излез
|
||
|
Пристаниште
|
Количина | Resolution（single output??/ТД> |
| ДВИ | 4× 2 | 1024×768/60Hz 1280×1024/60Hz 1024×768/120Hz |
| 1280×720/59.94Hz 1280×720/60Hz 2048×1920/60Hz | ||
| 1600×1200/60Hz 1600×1200/60Hz-reduced 1680×1050/60Hz | ||
| 1920×1080/59.94Hz 1920×1080/60Hz 1920×1080/50Hz | ||
| 1920×1200/60Hz 1920×1280/60Hz 2048×1152/60Hz | ||
| 1024×1280/60Hz 1536×1536/60Hz and EDID | ||
| HDMI | 2× 2 | 1920×1080/60Hz 1920×1080/120Hz 3840×1080/60Hz |
| 3840×2160/30Hz 3840×2160/60Hz 4096×1280/60Hz | ||
| 4096×1280/30Hz 4096×2160/60Hz 2560×1080/120Hz | ||
| 2560×1440/90Hz and EDID | ||
| Џенлок | IN×1、OUT×1 | |
|
Влезно напојување
|
100-204V AC 50/60Hz | |
| Потрошувачка на енергија | 90В | |
| Работна температура | 0~45°C | |
| Overall dimension | 482.6×446.3×92.5mm | |
