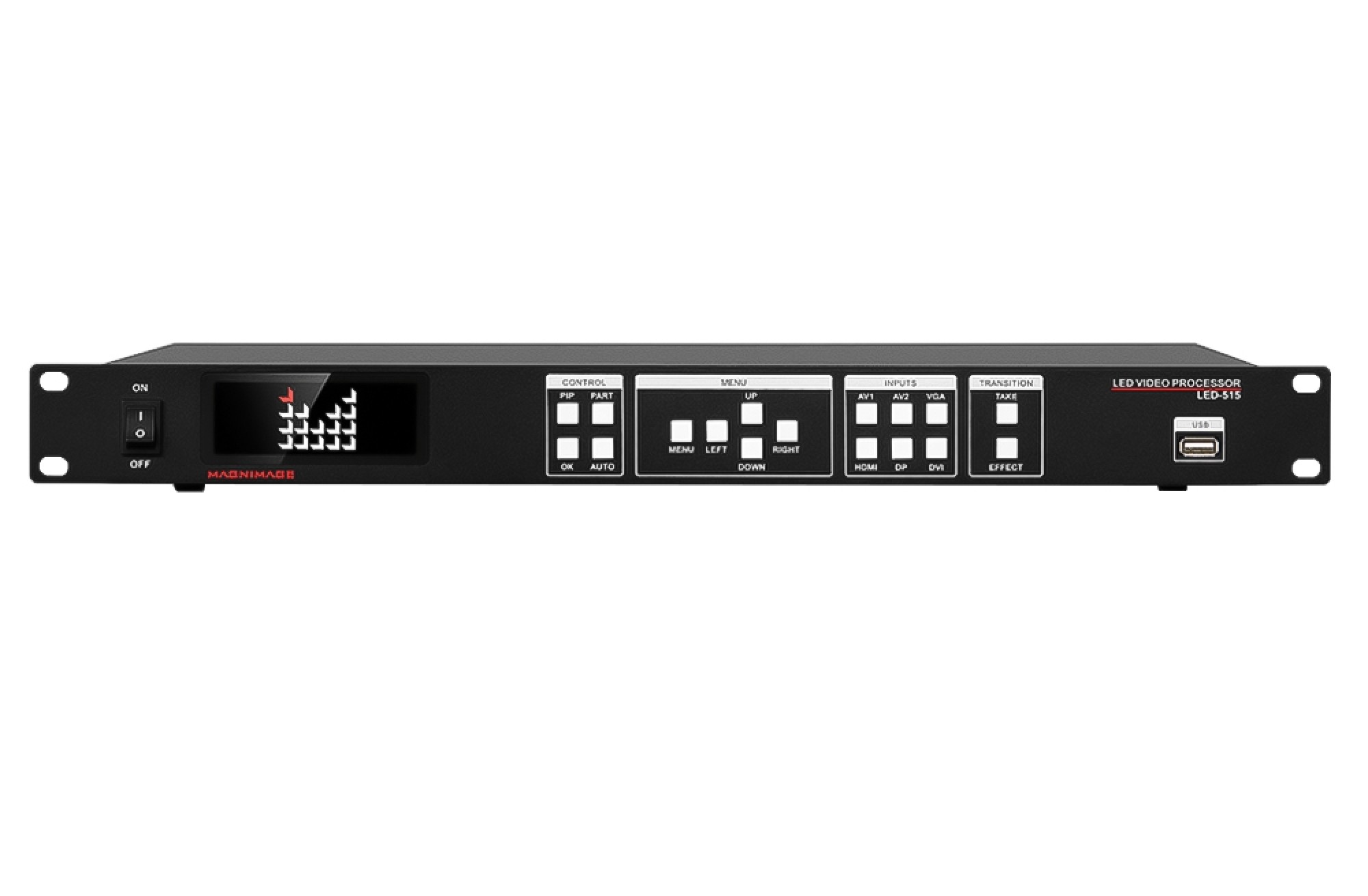

Prosesor Layar LED Magnimage LED-515D Untuk Dinding Video:
LED-515D can realize text overlay by 2 input signals to meet customer’s specific needs.
LED-515D supports hot backup switching.
Dengan 2 masukan, one input is for main source, the other input is the hot backup.
If there is abnormal for main source, the machine will automatically switch to the backup signal to avoid the black screen of LED.
Parameter of Magnimage LED-515D LED Screen Processors For Video Wall
| Indikator Masukan | ||
| DARI | 2 | SAHABAT、Ntsc、SECAM |
| VGA | 1 | Vesa |
| Dvi | 1 | VESA..support 1080i |
| HDMI | 1 | HDMI-1.3 |
| Dp | 1 | DisplayPort1.1 |
| Audio | 3 | 1.4Vp-p/10KΩ |
| Indikator Keluaran | ||
| Pelabuhan | Jumlah | Resolusi |
| VGA | 1 | 1024×768/60Hz/75Hz/85Hz/100Hz
/120Hz |
| 1280×1024/60Hz 1440×900/60Hz | ||
| 1600×1200/60Hz 1600×1200/60Hz
Dikurangi |
||
| 1680×1050/60Hz | ||
| Dvi | 2 | 1920× 1080/60Hz/50Hz
2560× 816/60Hz |
| 2048×640/60Hz
1920× 1200/60Hz |
||
| 2304×1152/60Hz
2048×1152/60Hz |
||
| 1024×1280/60Hz
1536×1536/60Hz |
||
| Support customized resolution | ||
| Audio | 1 | |
| Unit Specification | ||
| Catu Daya | 100-240Vac | |
| Konsumsi | 25W | |
| Suhu Operasional | 0~45 | |
| Dimensi Produk | 482.6X284.0X44.5mm | |
| Packing Dimension | 555.0X395.0X125.0mm | |
