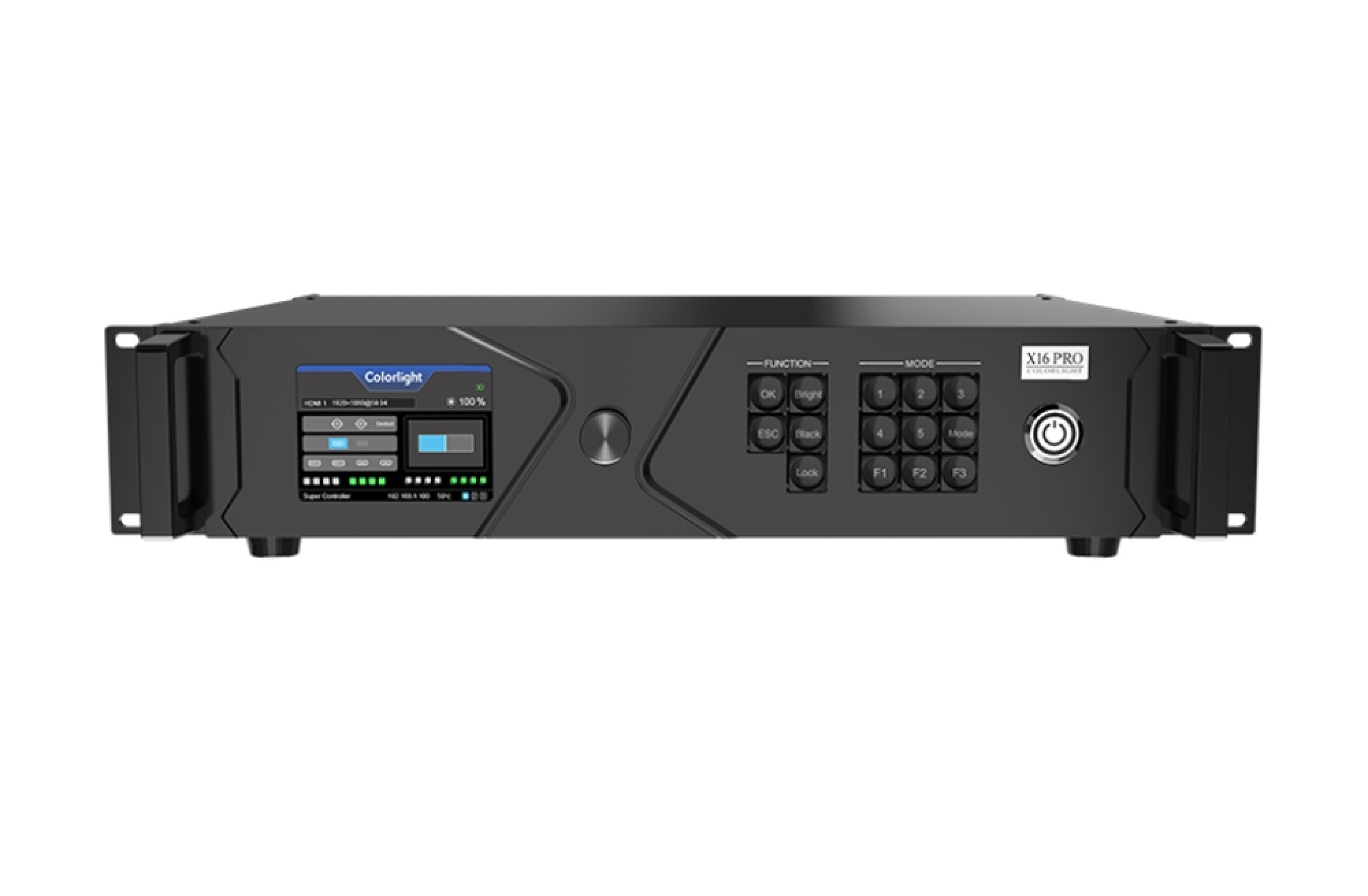

Colorlight X16 Pro Professional Large LED Screen Display Processor Overivew:
Colorlight X16 Pro Professional Large LED Screen Display Processor is a professional grade LED display control device, with powerful video signal reception, splicing and processing capabilities, the maximum reception 4096 × 2160 pixels 4K digital signal; support for HDMI, Խլացած, Dvi, SDI and other digital interfaces, seamless switching between multiple signals; support for splicing, broadcast level scaling, maximum support for 7-screen display.
Հետ 16 Gigabit Ethernet ելքեր, the X16 PRO can support LED displays up to 8192 pixels wide and 4096 pixels high in a single unit. The X16 PRO also offers a wide range of features for flexible screen control and high quality image display, making it perfect for high-end rental displays and small pitch LED displays.
Colorlight X16 Pro Professional Large LED Screen Display Processor Features:
-Supports a wide range of digital signal interfaces, including HDMI 2.0, DP1.2, Sdi, Dvi.
-Maximum input resolution 4096×, supports arbitrary resolution settings.
-Մինչև 10.4 megapixels with a maximum bandwidth of 8192 pixels and up to 4096 պիքսելներ.
-Support arbitrary switching of video sources, according to the display resolution of the input image stitching, scaling.
Supports 7-screen display with free adjustment of position and size.
-Support for HDCP 2.2.
-Աջակցում է 3D ֆունկցիոնալությանը (ընտրովի).
Dual USB 2.0 high-speed communication interfaces for computer debugging and arbitrary cascading between the main controller.
-RS232 serial port, used by computers to send serial commands.
-Աջակցում է պայծառության և գույնի ջերմաստիճանի ճշգրտմանը.
-Supports low light and high grey.
-Support for handheld terminal control (app).
-Supports the full range of Carlite receiver cards, բազմաֆունկցիոնալ քարտեր, and fiber optic transceivers.
Colorlight X16 Pro Professional Large LED Screen Display Processor Parameter:

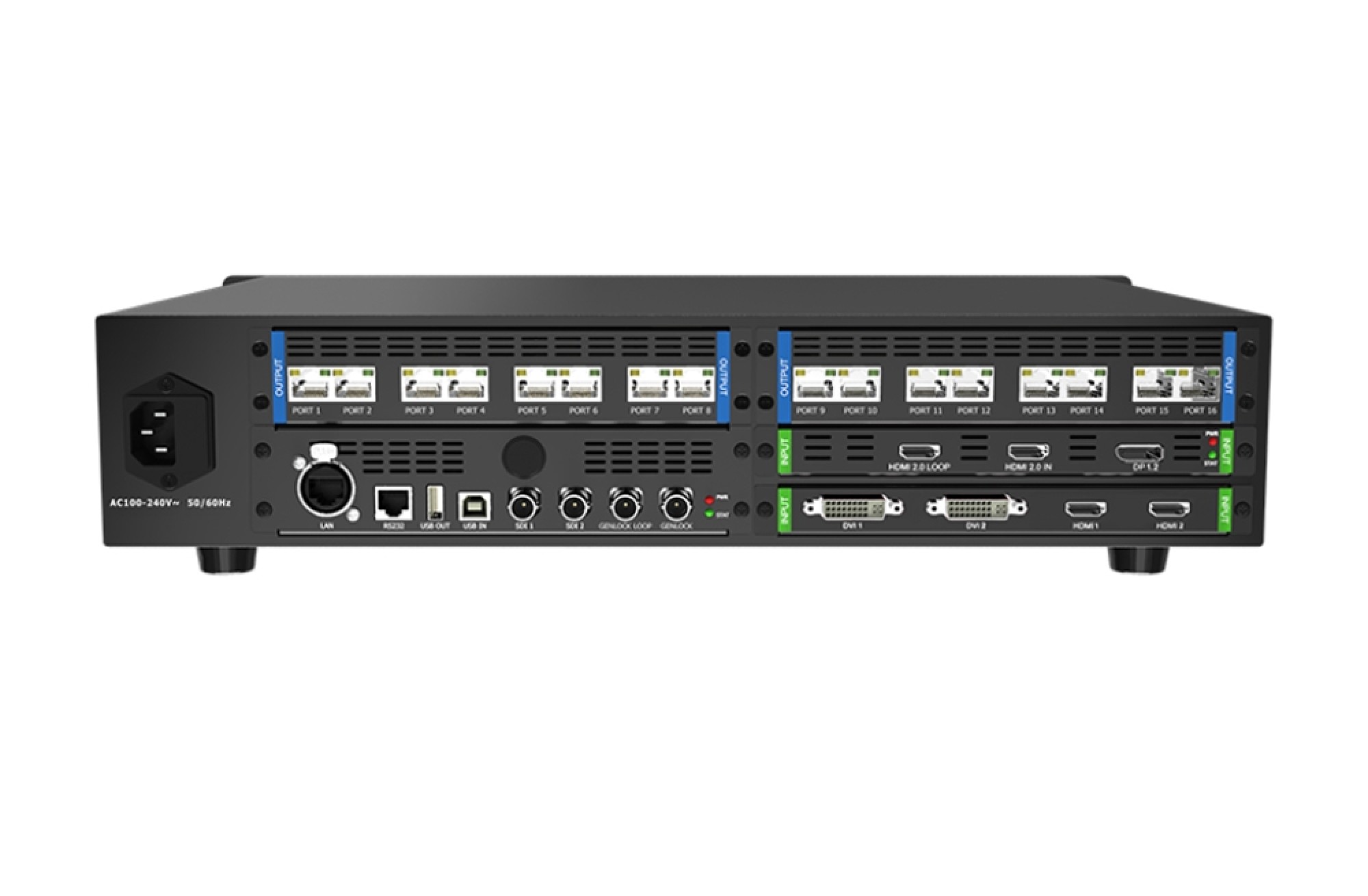

| Ներածման միջերես | ||
| HDMI 2.0 | 1，with LOOP | HDMI 2.0&DP 1.2Either one, not both at the same time |
| Խլացած 1.2 | 1 | |
| Dvi | 2 | |
| HDMI 1.4 | 2 | |
| Sdi | 2 | |
| Ելքային ինտերֆեյս | |
| Նավահանգիստ 1-16 | RJ45??6-channel Gigabit Ethernet output, 16 Ethernet ports can be arbitrarily spliced up and down, left and right. |
| Հստակեցում | |
| Չափը | 2U ստանդարտ տուփ |
| Մուտքային լարումը | AC100~240V |
| Գնահատված էներգիայի սպառումը | 70Վ |
| Աշխատանքային ջերմաստիճան | – 20℃ ~ 60 |
