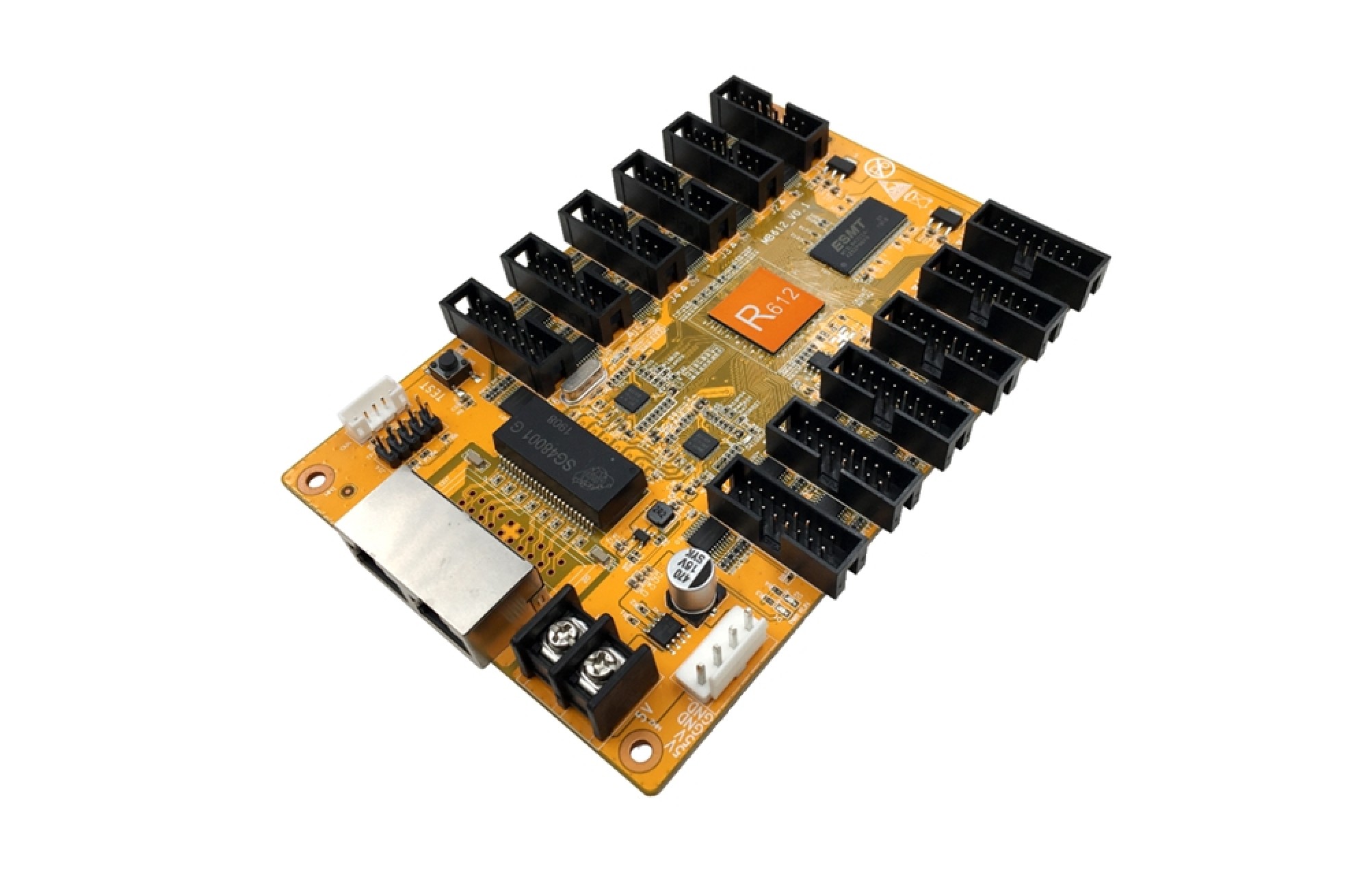

HUIDU HD-R612 Receiving Card For Full Color LED Wall Screen Features
1 Gigabit Ethernet port, used to connect the sending card or receiving card, the same two network ports are interchangeable,http://www.huidu.cn/ 5
2 Teljesítmény interfész, can be accessed with 4.5V ~ 5.5V DC voltage
3 Teljesítmény interfész, can be accessed with 4.5V ~ 5.5V DC voltage
4 Work indicator, D1 flashes to indicate that the control card is running normally; D2 flashes quickly to indicate that Gigabit has been recognized and data is being received.
5 HUB75E port connect to the modules,
6 Teszt gomb,used to test display brightness uniformity and display module flatness.
7 External indicator light, run light and data light
HUIDU HD-R612 LED Screen Wall Full Color Receiving Card Parameter:
| Fit for sender | T901S synchronous controller VP210> VP410 video processor |
| Module type | Compatible with all common IC module, supported most PWM IC module. |
| Szkennelési mód | Supports any scanning method from static to 1/64 letapogatás |
| Communicatio n method |
Gigabites Ethernet |
| Szabályozási tartomány | Recommend 256*256 pixel Outdoor module width >256, Indoor module width >128 |
| Multi-card connection |
Receiving card can be put in any sequence. |
| Gray scale | 256~65536 |
| Smart setting | A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen unit board |
| Test functions | Receiving card integrated screen test function,Test display brightness uniformity and display module flatness. |
| Communicatio n distance |
Super Cat5,Cat6 network cable within 146 méter |
| Kikötő | 5V DC Power*2,1Gbps Ethernet port*2, HUB75E*12 |
| Bemeneti feszültség | 4V-6V |
| Working hőmérséklet |
-40~85 |
