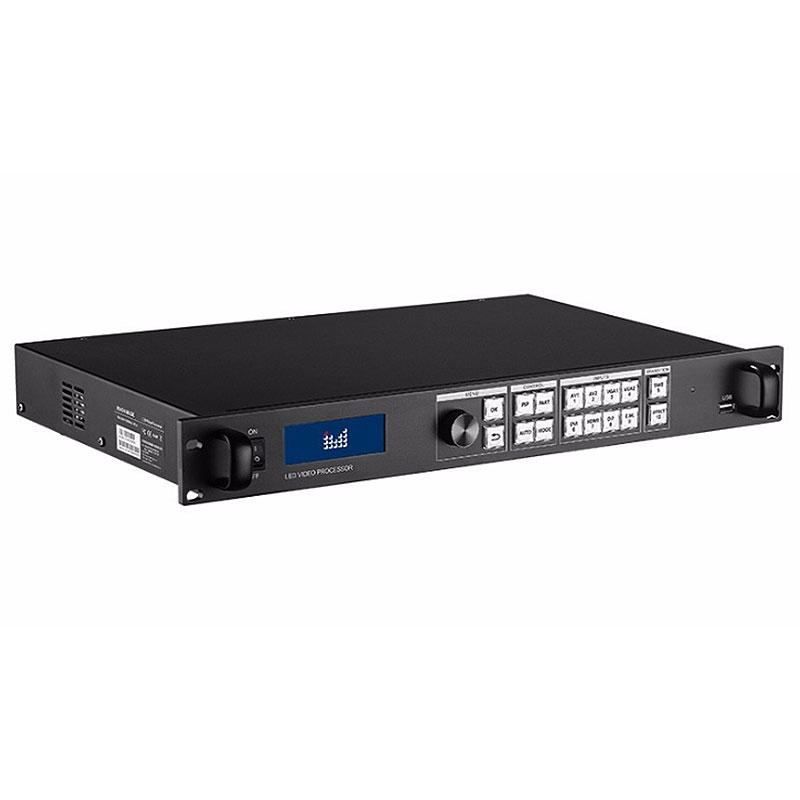

Magnimage LED-550D LED Video processor,
full color led display use LED-550D video processor / led screen scaler / video switcher from Magnimage LED-550DS with SDI input

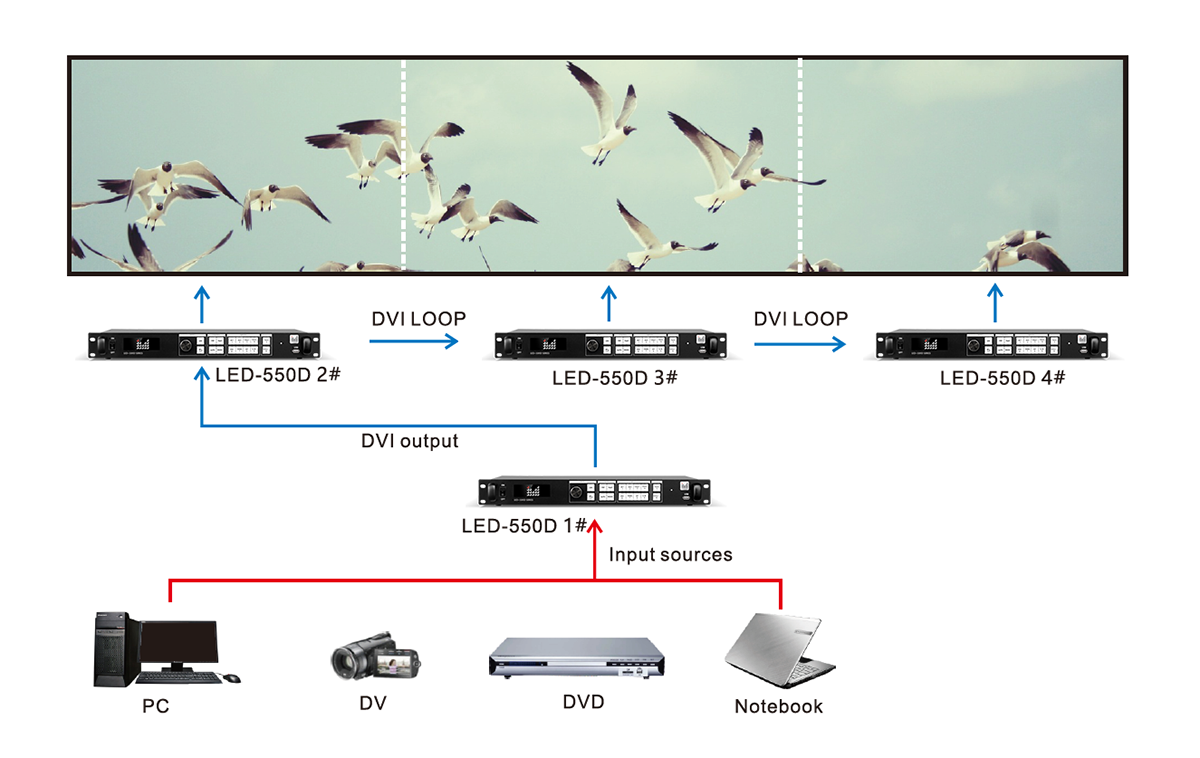

LED-550D series is the best choice for television broadcasting center, the stage theater, کنفرانس, exhibition and other large LED sceen display application occasions. Support oversized LED screen seamless splicing, through DVI loop interface, realize nondestructive digital signal transmission, and support multi machine to cascade splicing, support multiple switching effect(برش دادن, محو شدن, wipe)
Video Processor Technical Specification
شاخص های ورودی
| بندر | مقدار | Resolution Standard |
| OF | 2 | PAL,NTSC |
| VGA | 2+1(support 1extended) | VESA |
| DVI | 1+1(support 1extended) | VESA(support 1080i) |
| HDMI | 1 | EIA/CEA-861,HDMI-1.3/1.4 |
| DP | 1 | نمایشگاه 1.1,1.2 |
| SDI* | 1(support 1extended) | 480من,576من,720ص,1080i/p(3g c si) |
Output Indicators
|
بندر |
مقدار |
قطعنامه |
| حلقه DVI | 1 | مانند ورودی DVI |
| VGA | 1 | 1024×768/60Hz/75Hz/85Hz/100Hz/120Hz DVI 2
1280×1024/60Hz 1440×900/60Hz 1680×1050/60Hz 1600×1200/60Hz 1600× 1200/60 هرتز ??کاهش یافته است 1920× 1080/60 هرتز/50 هرتز 2 560×816/60Hz 2048×640/60Hz 1920×1200/60Hz 2304×1152/60Hz 2048×1152/60Hz 1024×1280/60Hz 1536×1536/60Hz
وضوح خروجی سفارشی(بهینه سازی پهنای باند): maximum width is 3840 and maximum height is 1920 |
|
DVI |
2 |
|
| SDI Input & حلقه | 1 | 480من,576من,720ص,1080i/p(3g c si) |
