HUIDU HD-D16 full-color LED large screen asynchronous control card Interface Description .
HUIDU HD-D16 full-color LED large screen asynchronous control card Features
- Standard Wi-Fi module，mobile App wireless.
- Support 256~65536 grayscale.
- Tugivideo、Picture、Animation、Clock、Neon background.
- Support word art, animated background, neon light effect.
- U-disk unlimited expansion program, plug in broadcast.
- No need set IP, HD-D15 could be identified by controller ID automatically.

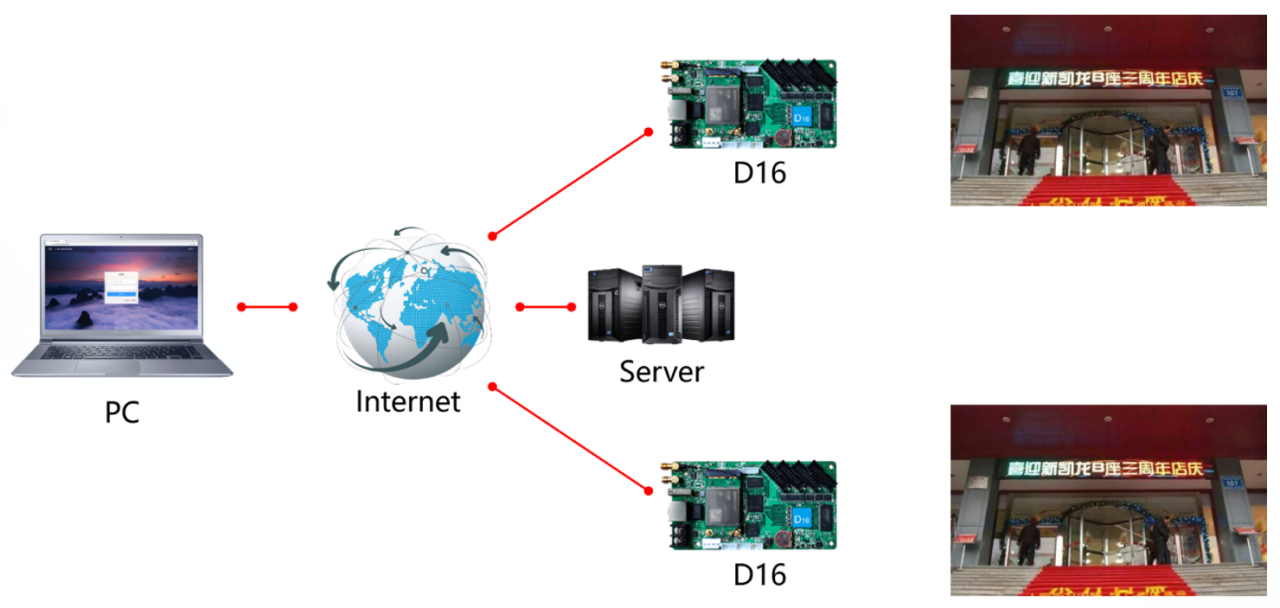

- Support 4G/Wi-Fi/ and network cluster management remote management.
- Support 720P video hardware decoding, 60HZ frame rate output.
HUIDU HD-D16 full-color LED large screen asynchronous control card Parameetrid
| Omadused | Parameetrid |
| Skaneeri | Static to 1-64 scan modules |

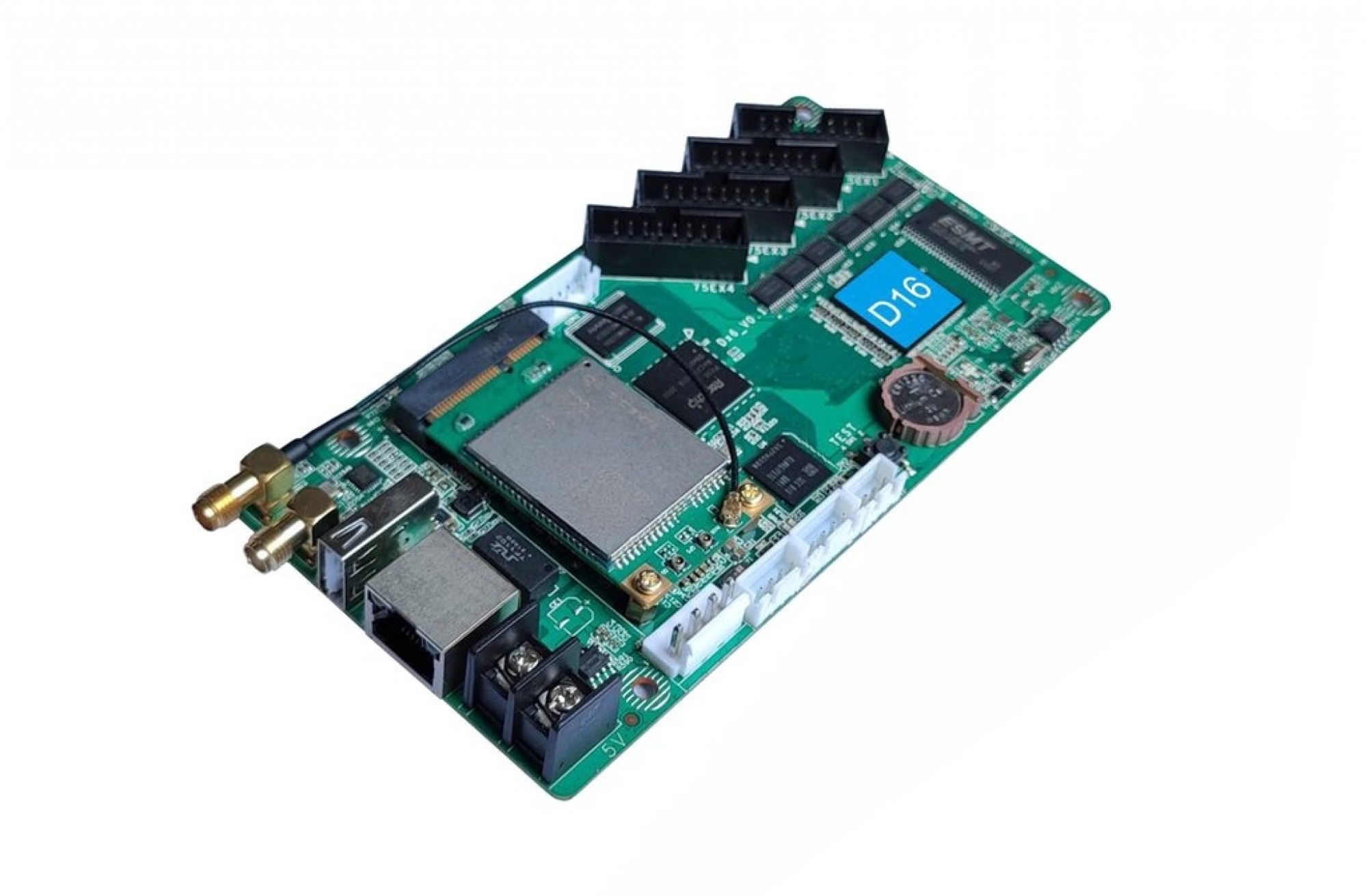

| Juhtimisvahemik | D16: control range: 640*64, Widest: 640, Highest:128

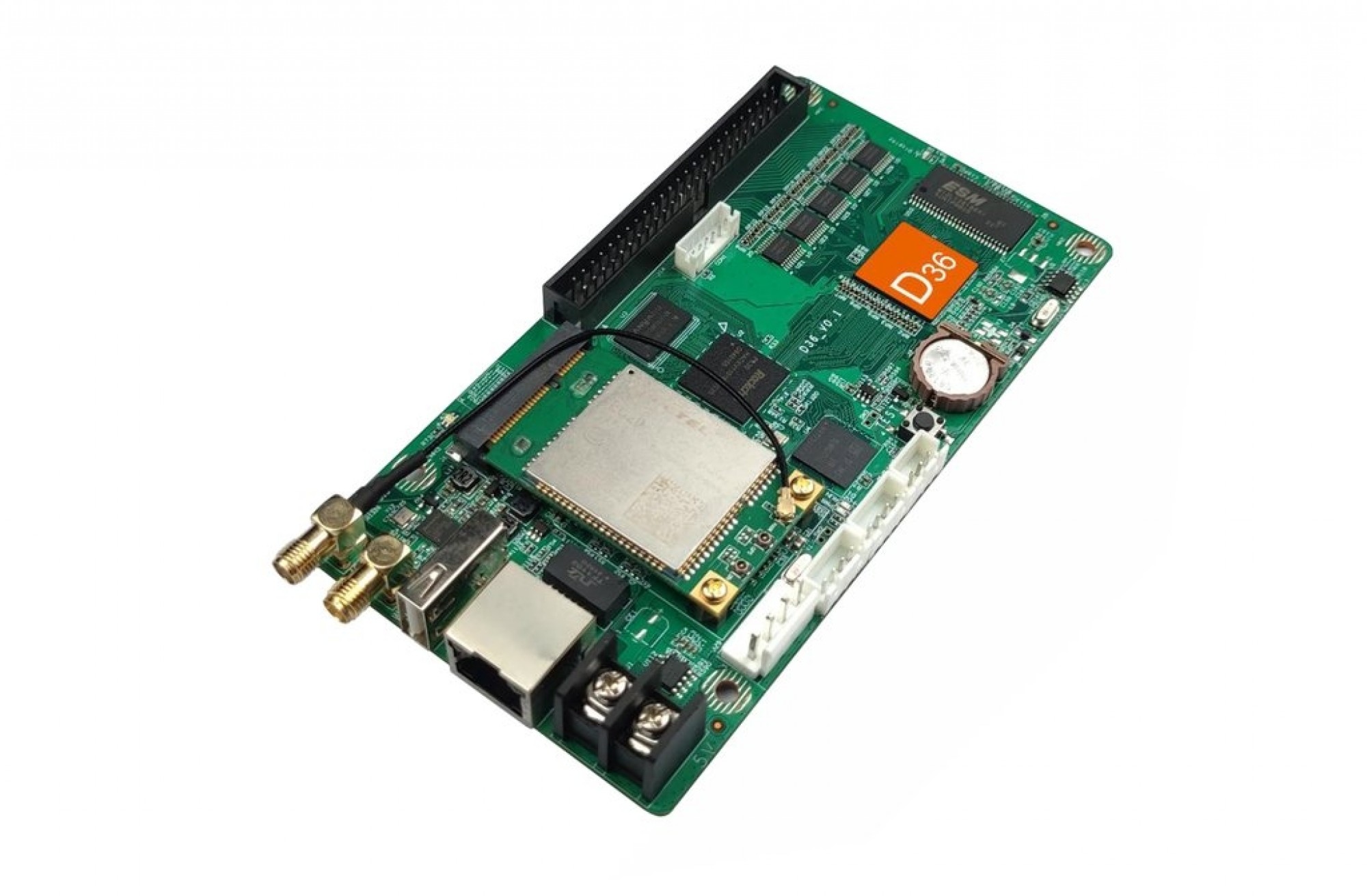

D36: control range: 1024*64, Widest: 1024, Highest:128 |
| Hall skaala | 256~65536 |
| Videovormingud | 60Hz kaadrisageduse väljund, support 720P video hardware decoding, direct transmission, no trans-coding waiting. Avi, WMV, Mp4, 3GP, ASF, Mpg, Flv, F4V, MKV, MOV, SEE, Volaat, TRP, TS, WEBM, jne. |
| Animation Formats | Swf、Flv 、GIF |
| Pildivormingud | BMP、JPG、JPEG、PNG etc. |
| Text | Support text message editing, inserting picture; |
| Time | analog clock, digital clock and a variety of dial clock functions |
|
Other function |
Neon, animations function; Clockwise/counter-clockwise count; support temperature and humidity; Adaptive brightness adjustment function |
| Mälu | 4GB memory, rohkem kui 4 hours program support. Indefinitely expanding memory by U-disk |
| Suhtlemine | U-disk/Wi-Fi/LAN/4G(Valikuline) |
| Sadam | 5V Power *1, 10/100M RJ45 *1, USB 2.0 *1, HUB75E *4 |
| Võimsus | 5W |
