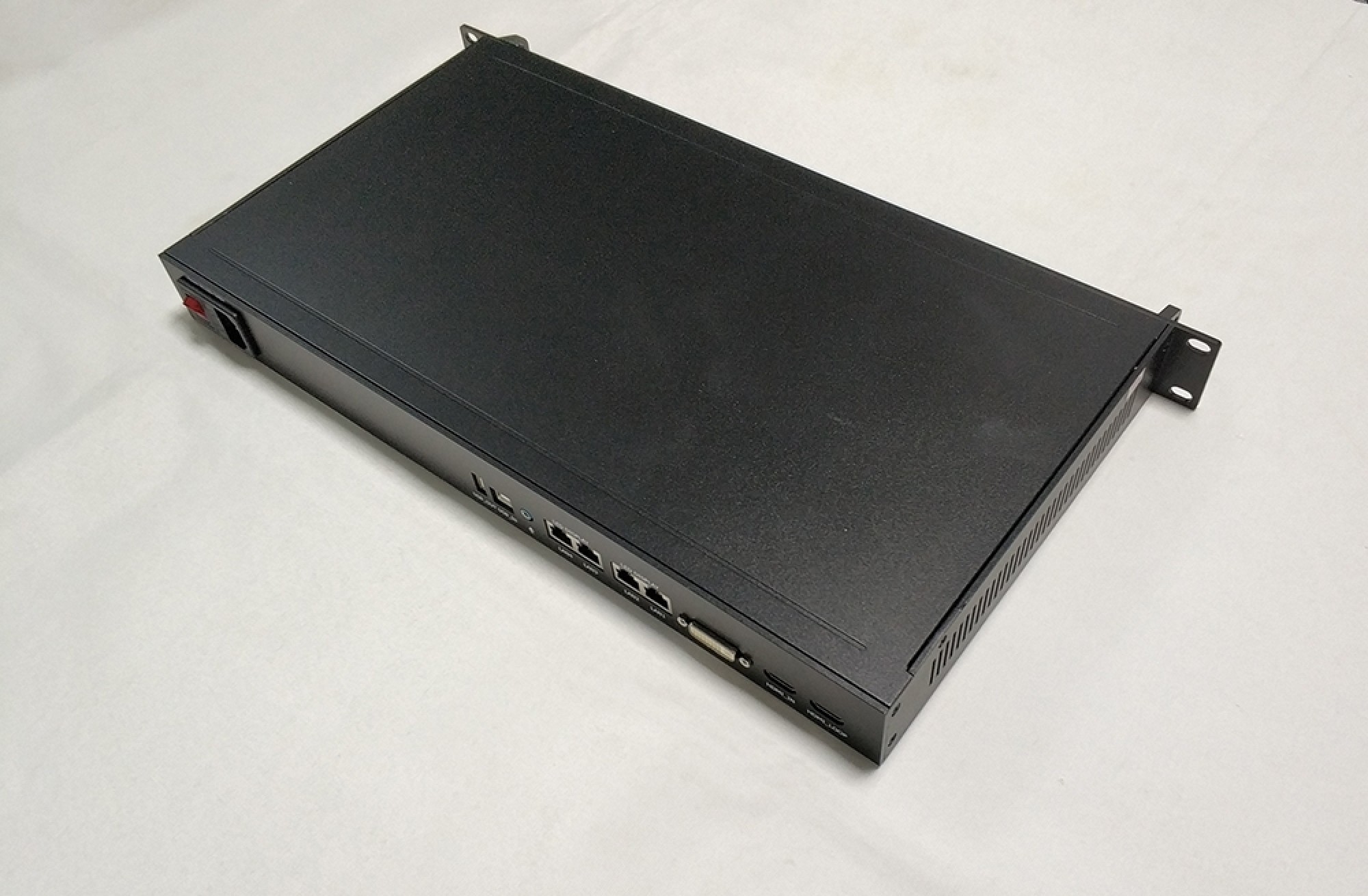

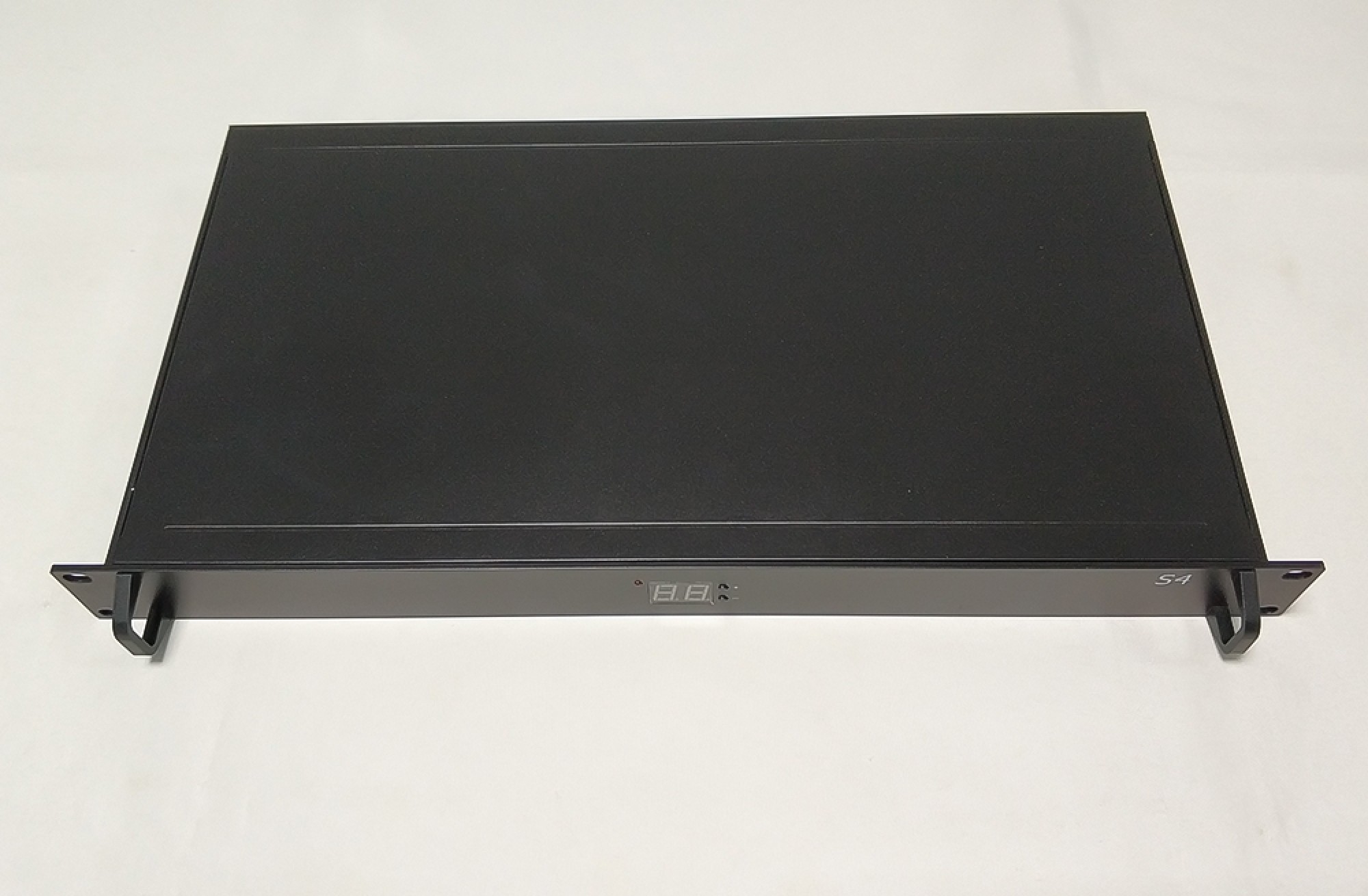

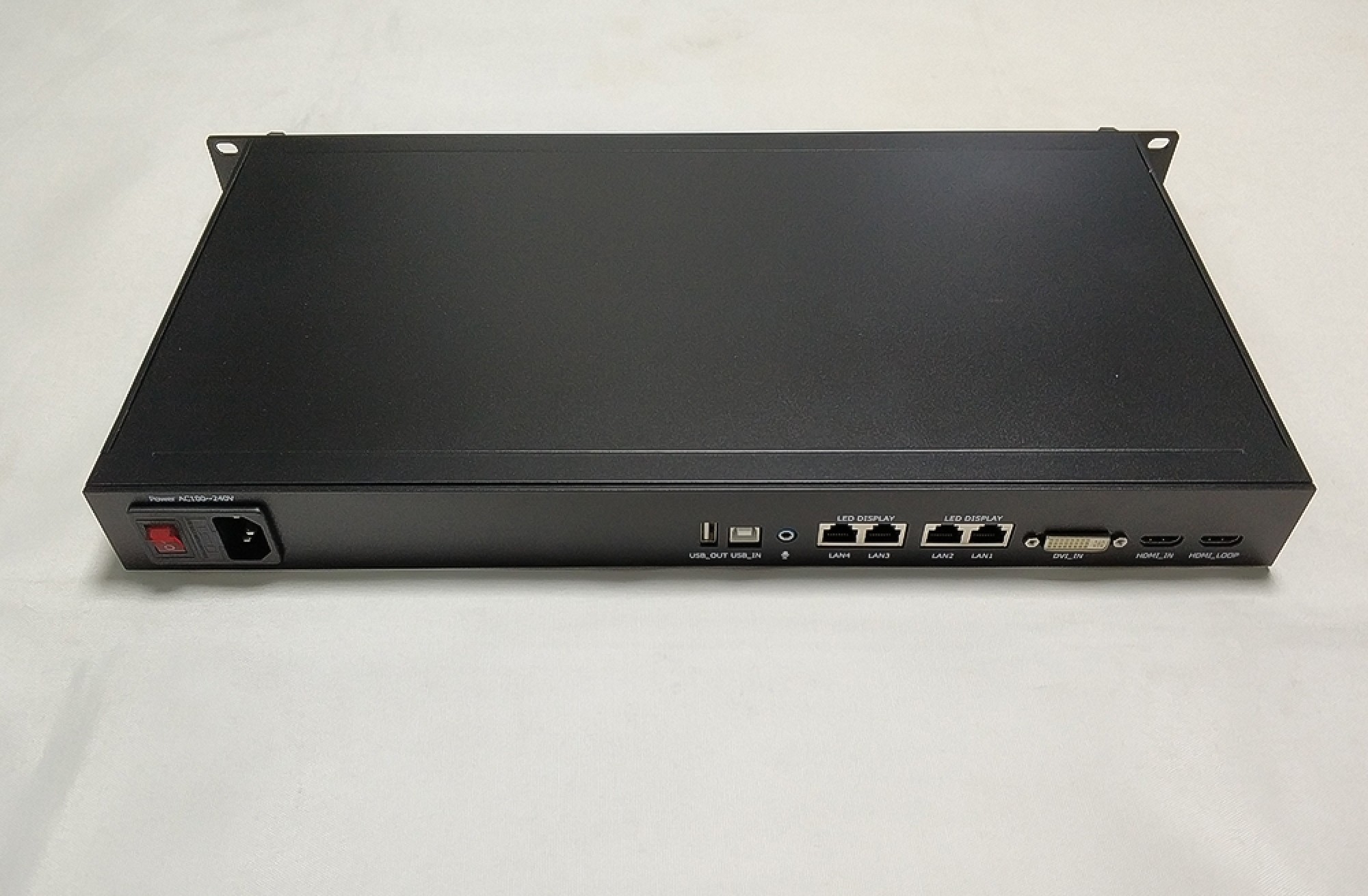

ColorLight S4 High Definition LED Display Contoller Box Discreption:
S4 high-definition transmitter, with a strong video signal reception, υποστήριξη DVI, HDMI high-definition signal input; Maximum Drive capacity reach 1920 * 1200 pixels high-definition digital signals; Four Gigabit Ethernet output, single card can support the widest 4096 εικονοστοιχεία , Or up to 2560 pixels large screen.
S4 uses high-speed USB and PC communication, and can be used for multiple transmitter cascade, the operation is more simple and convenient. At the same time S4 also has a series of rich and practical functions, in production testing, engineering applications have many advantages.
ColorLight S4 High Definition LED Display Contoller Box Features:
1)Υποστήριξη εισόδου σήματος βίντεο HDMI και DVI, and the interface type is DVI.
2) Max input resolution: 1920*1200 εικονοστοιχεία.
3)Max loading capacity: 2.30 εκατομμύρια pixel.
4)Max in Width: 4096εικονοστοιχεία, Max in Height: 2560 εικονοστοιχεία.
5)4 Οι έξοδοι Gigabit Ethernet υποστηρίζουν αυθαίρετο μάτισμα.
6) Διπλό USB2.0 για διαμόρφωση υψηλής ταχύτητας και εύκολη διαδοχή.
7)Support the brightness and chromaticity adjustment.
8)Improved grayscale performance at low brightness level.
9)Υποστήριξη HDCP.
10)Compatible with all Colorlight receiving series.
11)Ανάλυση εισόδου: 1920*1200 Μέγ.
12)Μέγεθος: 1U Standard Box.
