NO SDI, If need SDI, add$ USD140 Per Road, can add 6 roads at most.

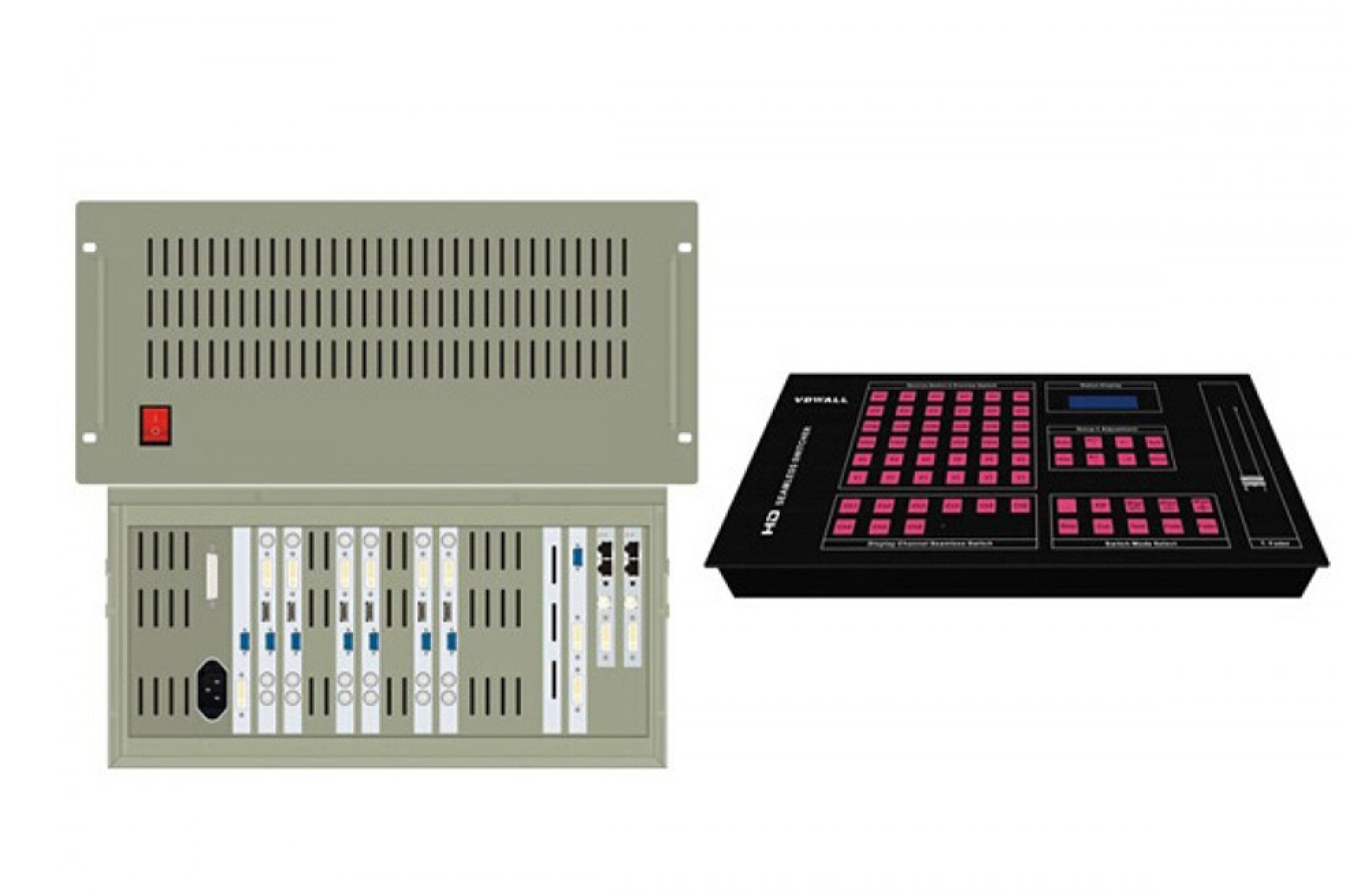

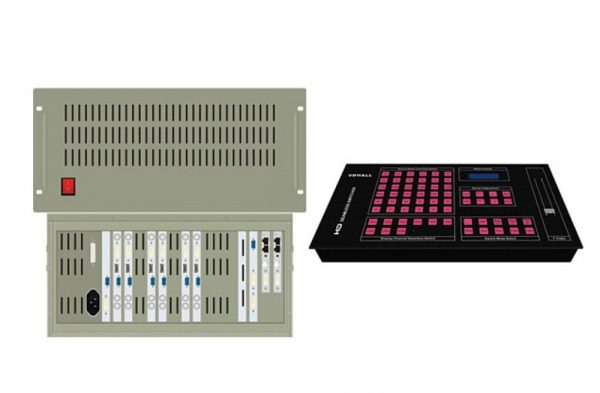

Features of VDWALL LVS5066 HD LED Display Video Controller:
1. A latest generation broardcast-grade video processing technology, clearer in video image details,
more distinct in image gray levels, more brilliant in colors and more vivid in scenes

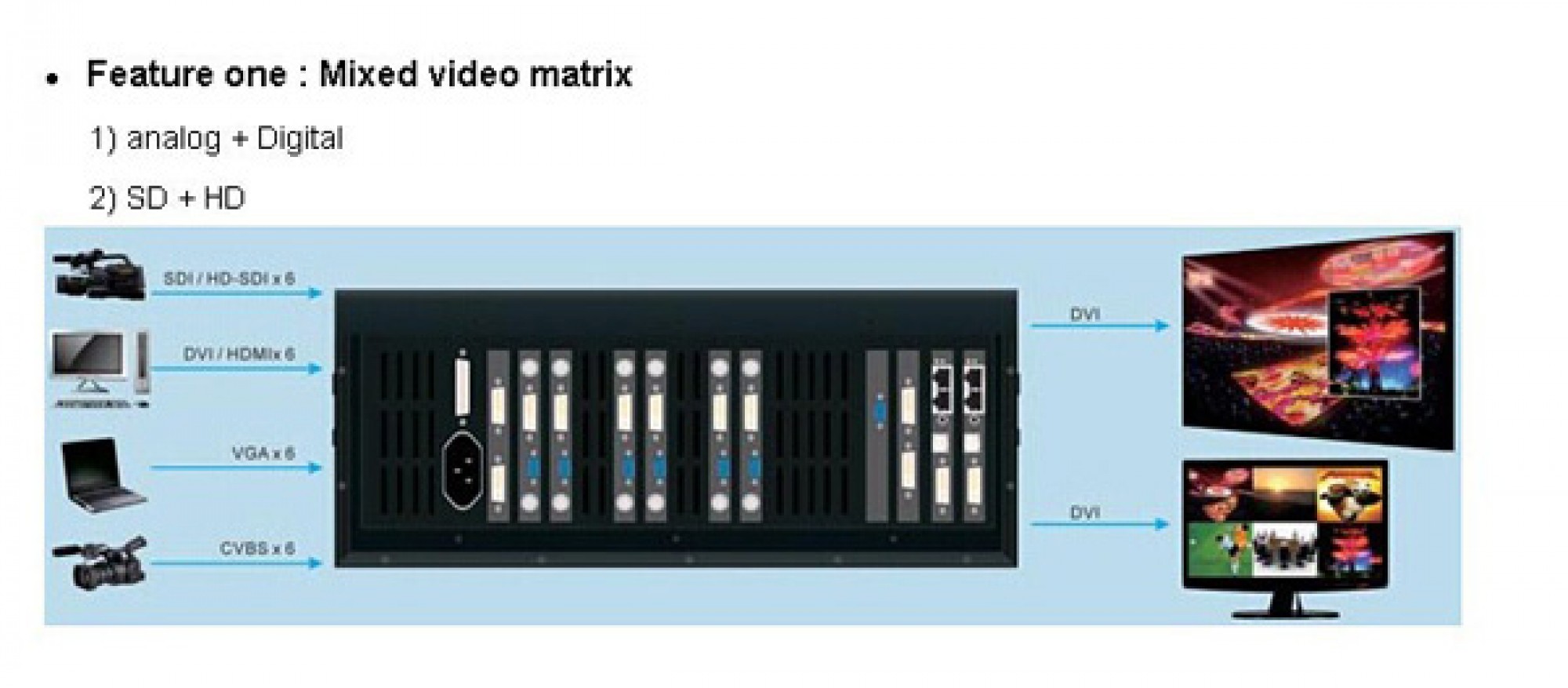

2. 6 input channels with total 24 Multi-format video signals,einschließlich 12 Full HD digital inputs:
6× SDI / HD-SDI , 6× DVI / HDMI( mit HDCP )

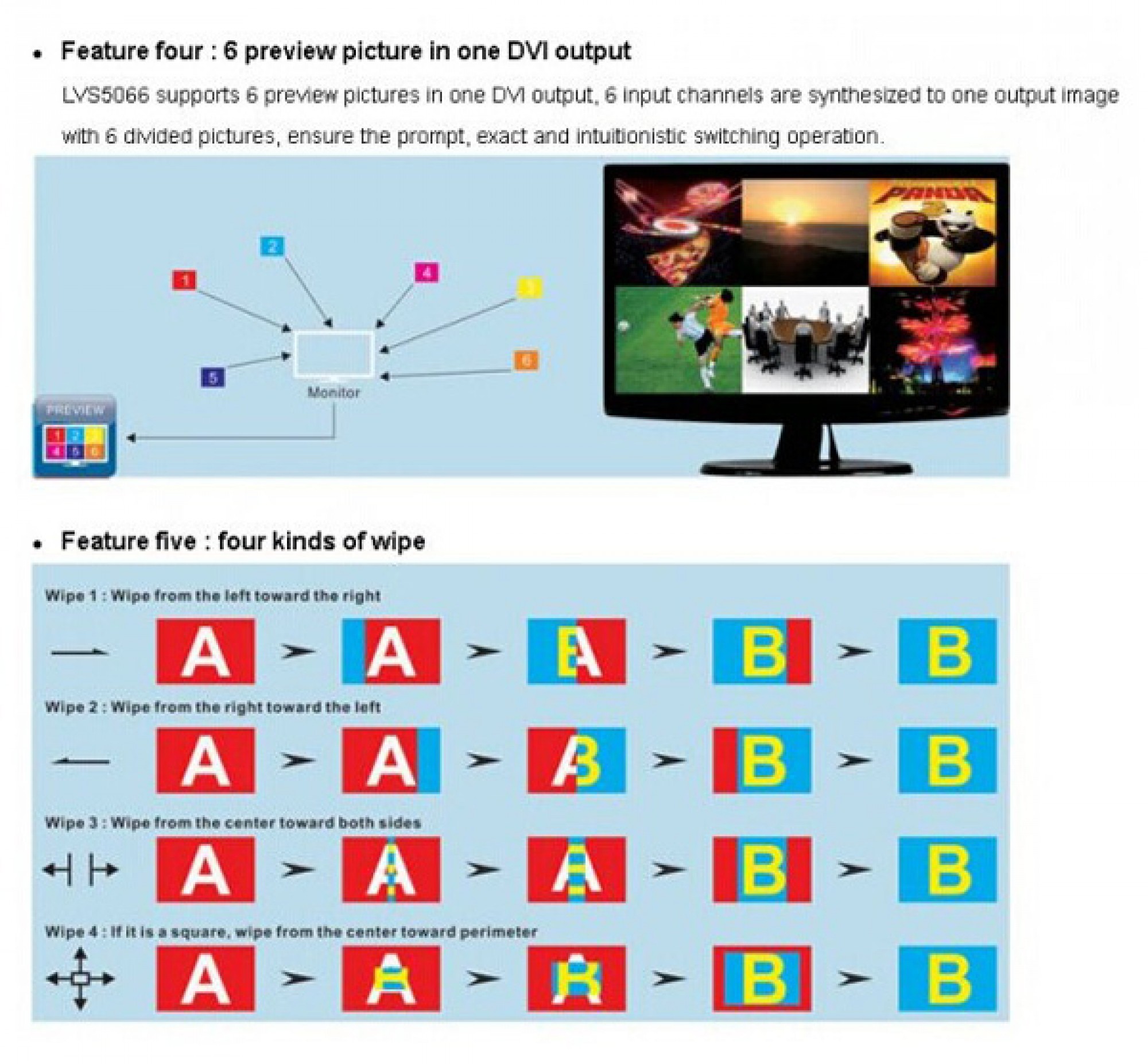

3. Numerous Seamless Switching Effects including Fade-in / Ausblenden( MIX ), Clean CUT, WIPE and T-Fader.
They are all truly seamless, glitch-free switching.
4. Uneingeschränktes HD-Bild-in-Bild ( PIP ).
5. HD Text, Flash, Graphics & Logo Overlay.
6. 6 Preview Pictures in one DVI output.
7. Robust 24 / 7 Betrieb.
8. Setup & Control is very Simple.
Specifications of VDWALL LVS5066 HD LED Display Video Controller:
|
Modell / Configs |
LVS5066 |
|
|
Eingang |
||
|
Zahlen / Typ |
6×composite video 6×VGA（RGBHV 6× DVI / HDMI 6×SDI（HDSDI |
|
|
Videosystem |
KUMPEL / NTSC |
|
|
Composite-Video Umfang / Impedanz |
1V（p_p 75Ω |
|
|
VGA-Format |
PC |
600×1200 @60HZ |
|
VGA-Bereich / Impedanz |
R、G、B = 0.7 V (p_p 75Ω |
|
|
DVI-Format |
SD / HD EIA-861B |
1920x1080P @60HZ |
|
PC (VESA). |
600×1200 @60HZ |
|
|
HDMI-Format （HDCP??/em> |
SD / HD （EIA-861B |
1920x1080P @60HZ |
|
PC (VESA). |
600×1200 @60HZ |
|
|
SDI-Format |
SDI-SMPTE 259M-C |
576i @50HZ 480i @60HZ |
|
HD-SDI |
HDSDI-SMPTE 292M SMPTE 274M/296M |
1080P @50HZ/60HZ 720P @60HZ |
|
Eingangsanschlüsse |
Composite video ：BNC VGA5pin D_Sub ( Weiblich ) DVI4+1 DVI_D SDI / HD-SDI BNC / 75Oh |
|
|
Ausgänge |
||
|
Main Outputs |
1×VGA（RGBHV 2× DVI |
|
|
Monitor Outputs |
1×VGA（RGBHV 1× DVI |
|
|
VGA / DVI-Format |
1024× |
|
|
VGA-Bereich / Impedanz |
R、G、B = 0.7 V（p_p 75Ω |
|
|
Main Outputs Anschlüsse |
VGA5pin D_Sub( Weiblich ) DVI OUT14+5 DVI_I DVI OUT24+1 DVI_D |
|
|
Monitor Outputs onnectors |
VGA5pin D_Sub( Weiblich ) DVI：4+5 DVI_I |
|
|
Andere |
||
|
Kontrolle |
Panel-Taste |
|
|
Leistung |
100-240VAC 300W 50 / 60Hz |
|
|
Betriebstemp |
5-40 |
|
|
Luftfeuchtigkeit |
15-85% |
|
|
Größe |
178mm ×344mm（W）90mm |
|
|
Gewicht |
12Kg(N.W.) |
|

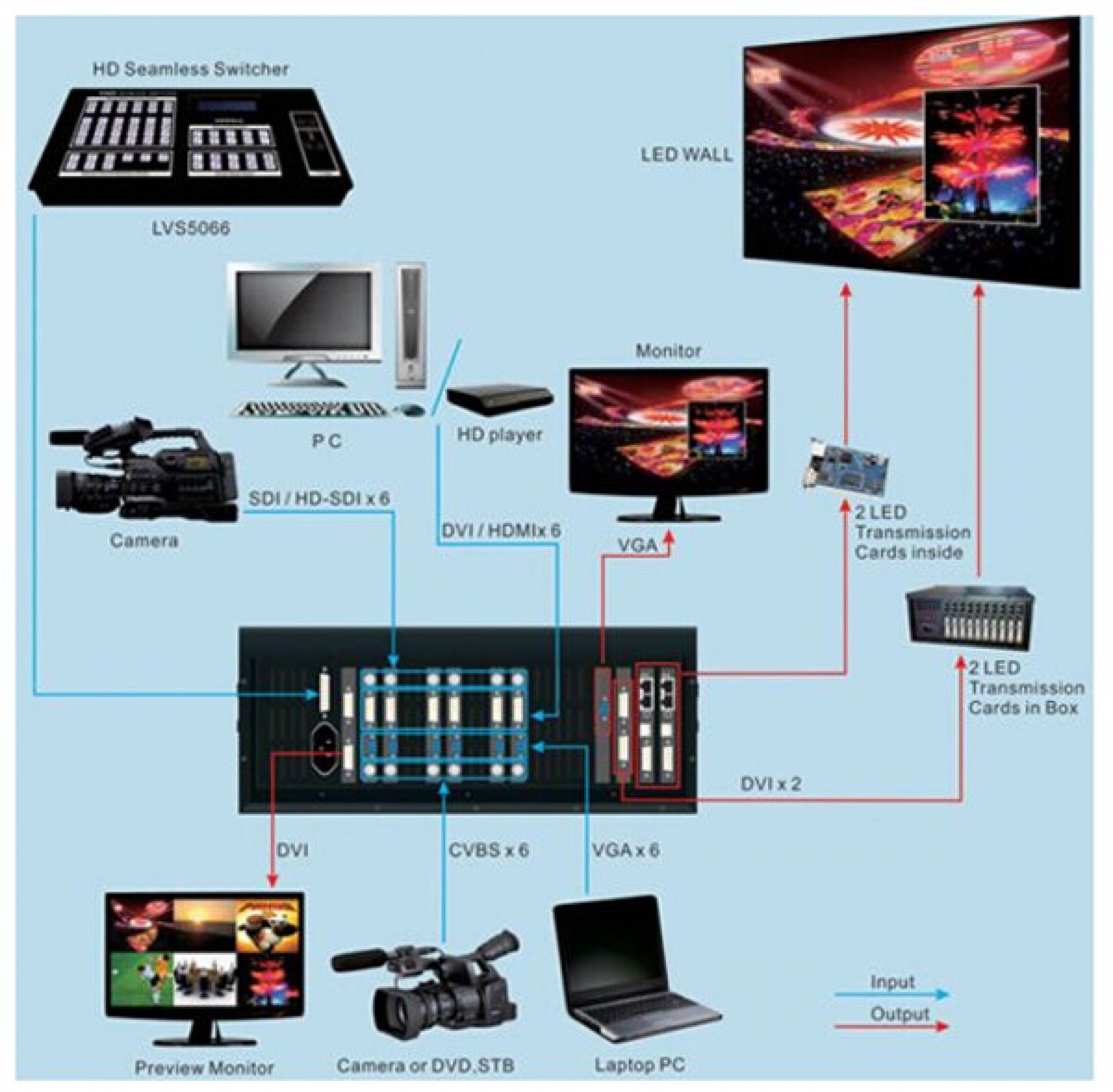

Application VDWALL LVS5066 HD LED Display Video Controller:
Large venue display apllications such as: TV Broadcast center, Bühnenunterhaltung & Theater , Sports Venues,
High-end meetings& Ausstellungen usw.
