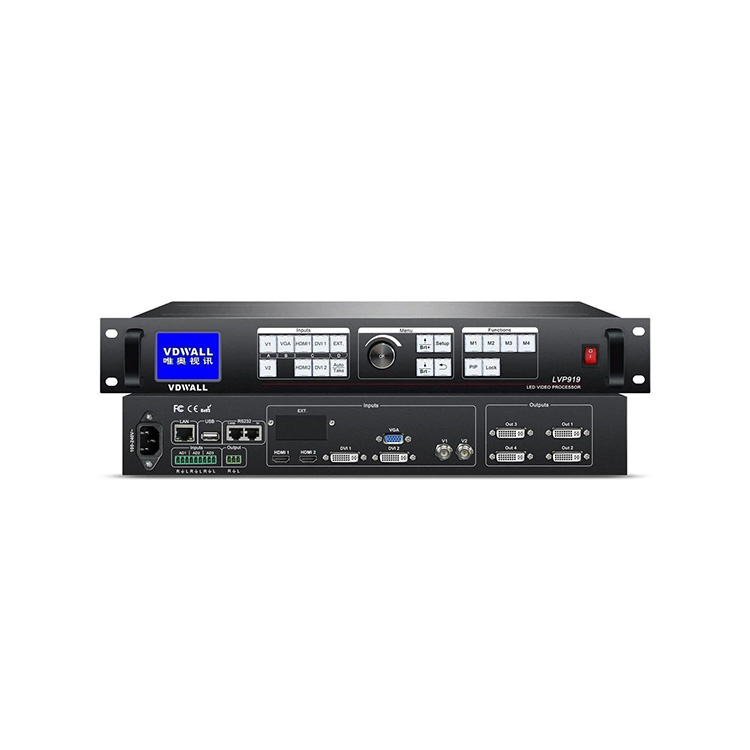

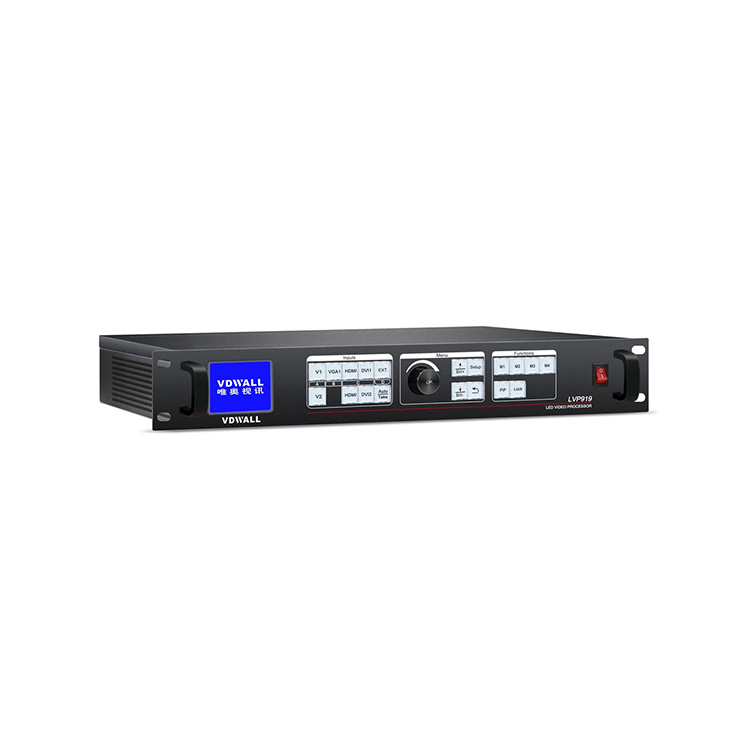

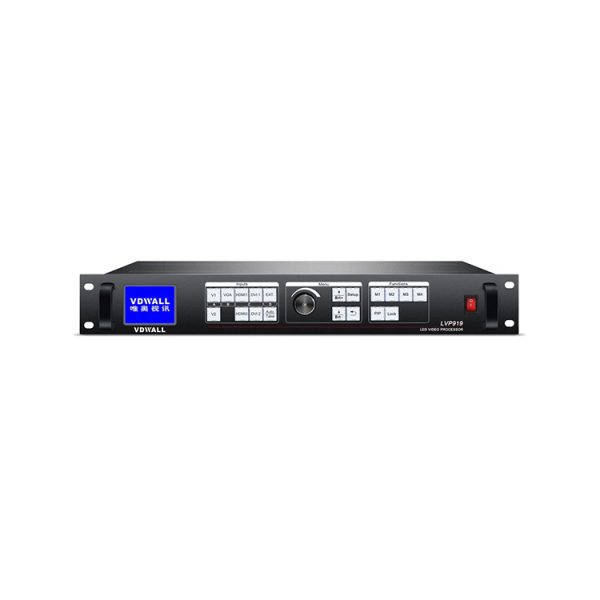

Vdwall LVP919 LED Controlller Video Processor.
Eingaben: 2× CVBS ,1×VGA（RGBHV??2×DVI（VESA / CEA-861??2×HDMI（VESA / CEA-861 1×SDI（HD-SDI / 3G-SDI??optional)
Ausgänge: 4 DVI DVI format(1024 x 768_60Hz/1280 x 1024_60Hz/1200 x 1600_60Hz/3600 x 600_60Hz/.).
1.Faroudja® Real Color®Picture Processing, Faroudja® DCDI Cinema Processing，Faroudja® TureLife™Video Image Enhancement
2. 4*DVI output, Single output has the resolution up to 1920 x 1200_60Hz.
3.Zoom in synchronously mosaic, single unit maximum mosaic level up to 7680 pixels or vertical 4800 Pixel, or 3840×2400 pixels
4.Multiple analog and digital mixed signals input:2xCVBSxVGAxHDMIxDVIxExt.
5. Nahtloses Umschalten, Fade In Fade Out Switching.
6.PIP(Picture In Picture), Any PIP display; AIAO(Irgendein Rein, Irgendein Raus), jede Input-Ernte und jede Ausgabe.
7. Multiple output resolutions can be set, flexibly adapting to the size of the LED screen.
8.Can preset multiple user-defined display modes, one button switching between modes.
9.Control modes: panel button, software by RS232/USB/LAN, flexible and convenient.
10. Add 4 channels of HDMI audio (only when DVI, HDMI interface is connected to HDMI signal) Und 1 channel of SDI audio, bis zu 8 channels of audio synchronously switching.
11. 24/7 Anwendung, stabil und zuverlässig.
12. Größe: 482.6（L）x274（W）x66.6（H）mm, 4.2KG Power consumption:5W.
