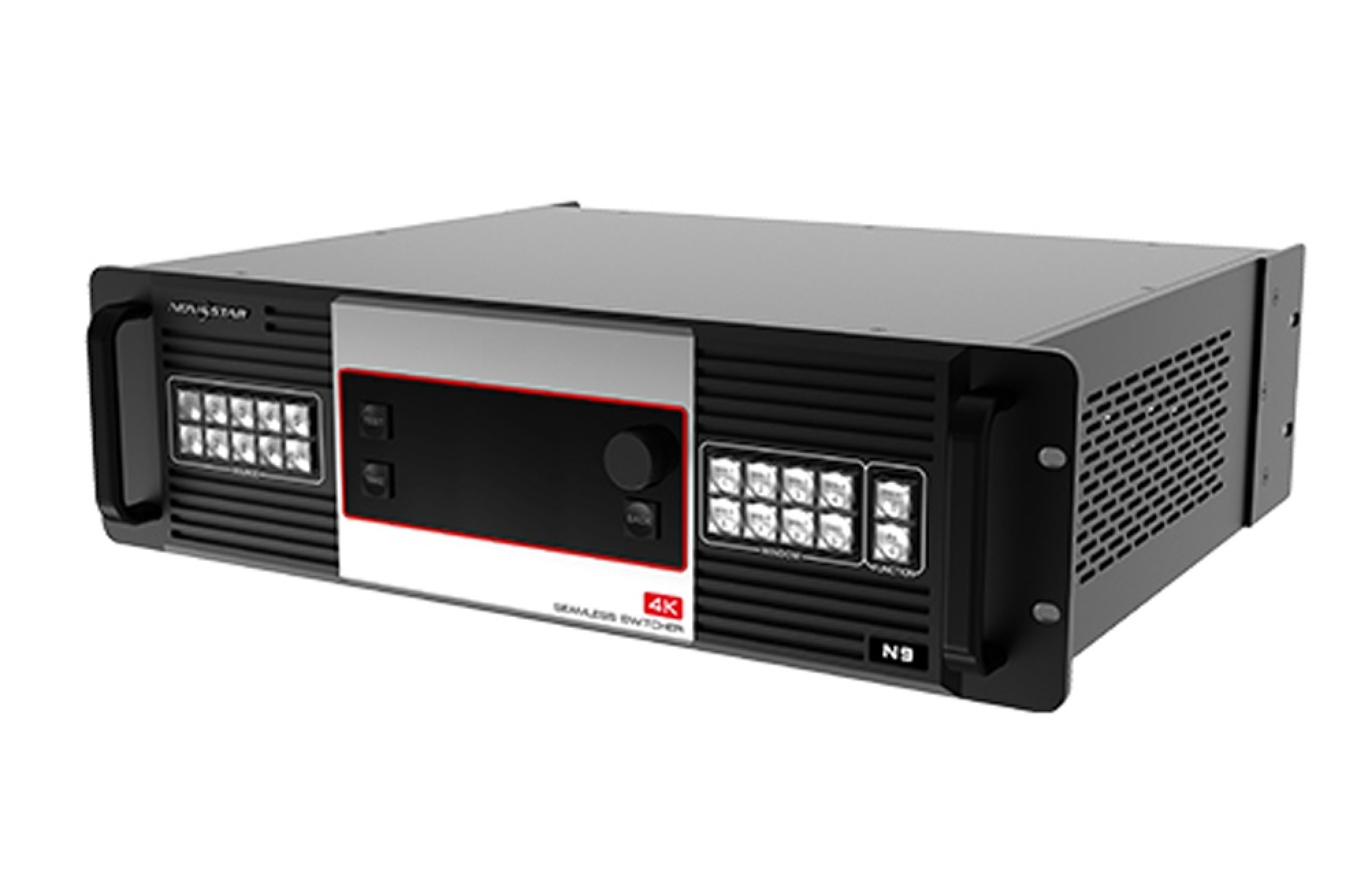

Novastar N9 Seamless Switcher 4K HDMI LED Wall Video Switcher HDMI Overview:
The N9 is a high-performance multi-screen video switcher independently developed by NovaStar. Using high-performance video processing technologies, it is capable of processing and outputting ultra-high quality images. The N9 also provides powerful video signal receiving capability. It can support 9 inputs and 4 DVI outputs at the same time. A single N9 can load up to an 8K screen, and multiple N9 units can be cascaded for output.
The N9 can work with NovaStar’s desktop console C1 and make the operation of N9 on stage more convenient. It is also equipped with brand-new smart management software V-Can from NovaStar to provide richer image mosaic effects.
Novastar N9 Seamless Switcher 4K HDMI LED Wall Video Switcher HDMI Feature:
2. Až do 7 layers supported at the same time. Max. resolution of each layer:3840×2160, 7680×1080 or 1920×4320.
3. Customized BKG settings You can load an image file from the control computer or capture an input source image displayed on the screen as the BKG image.
4. Shaped layer, layer mask and color keying supported
5. Layer cloning and Z-order layer sorting supported
6. Input source image cropping supported
7. Quick mosaic and custom mosaic
8. EDID management supported Supports custom EDID and standard EDID.
9. 4 × DVI mosaic output, 4 × DVI backup output, 1 × HDMI preview output, and 2× Aux output
10. Output resolution settable. The mosaic width of 4 outputs can be up to 15360×600.
11. 4 × single-link mosaic output, nebo 2 × dual-link mosaic output
12. Vstup, PVW, PGM and prompter monitoring supported by MVR connector
13. Layer position and size adjustable Layers can be added with borders of custom widths and colors.
14. 32 presets A total of 32 uživatelské předvolby lze vytvářet a ukládat jako šablony, které lze přímo a pohodlně používat.

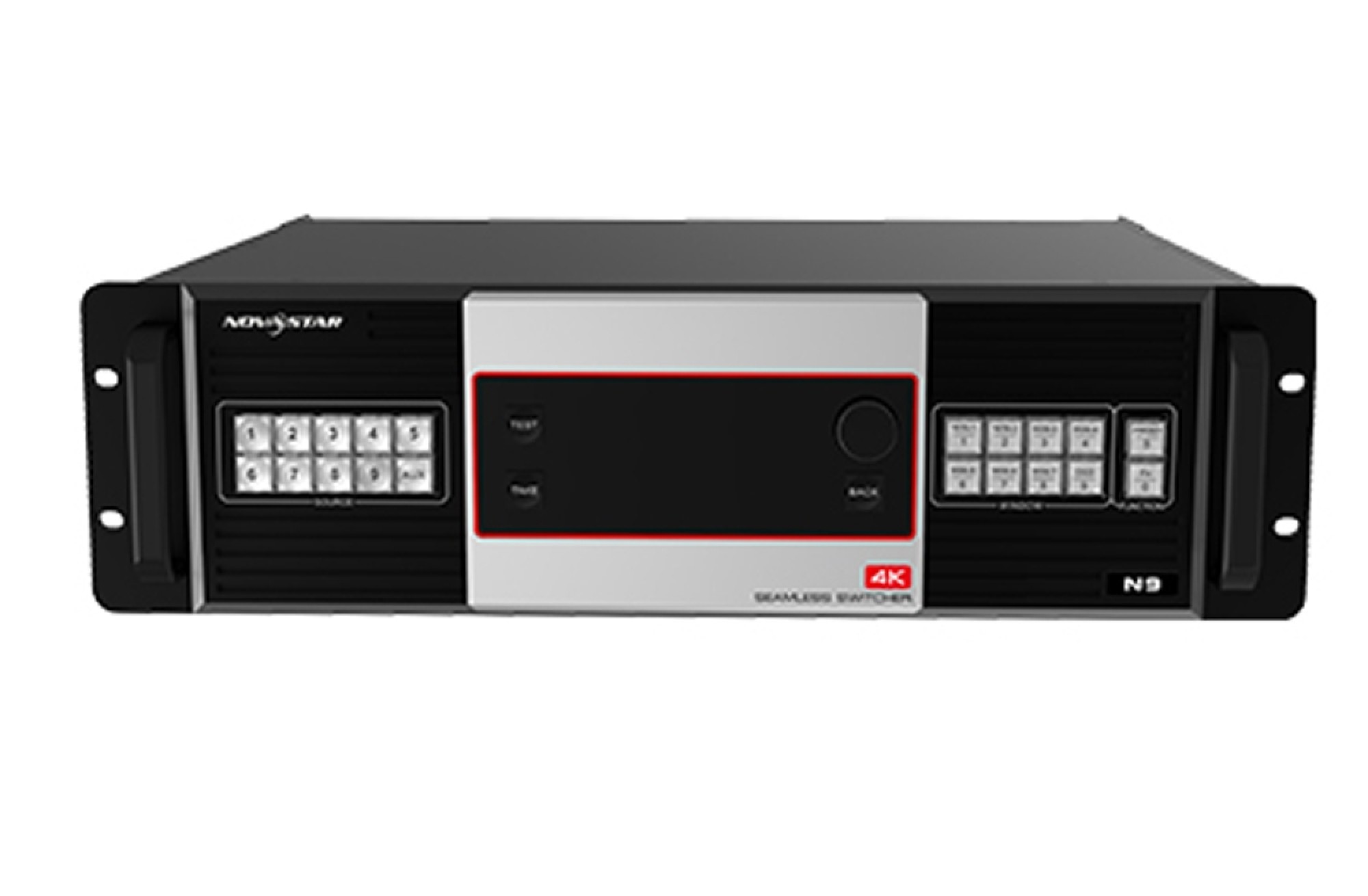

15. Intuitive color LCD screen and clear button indicator prompt on the front panel, simplifying system control and operation.
16. Genlock synchronization and synchronization with any input source supported, achieving output vertical synchronization.

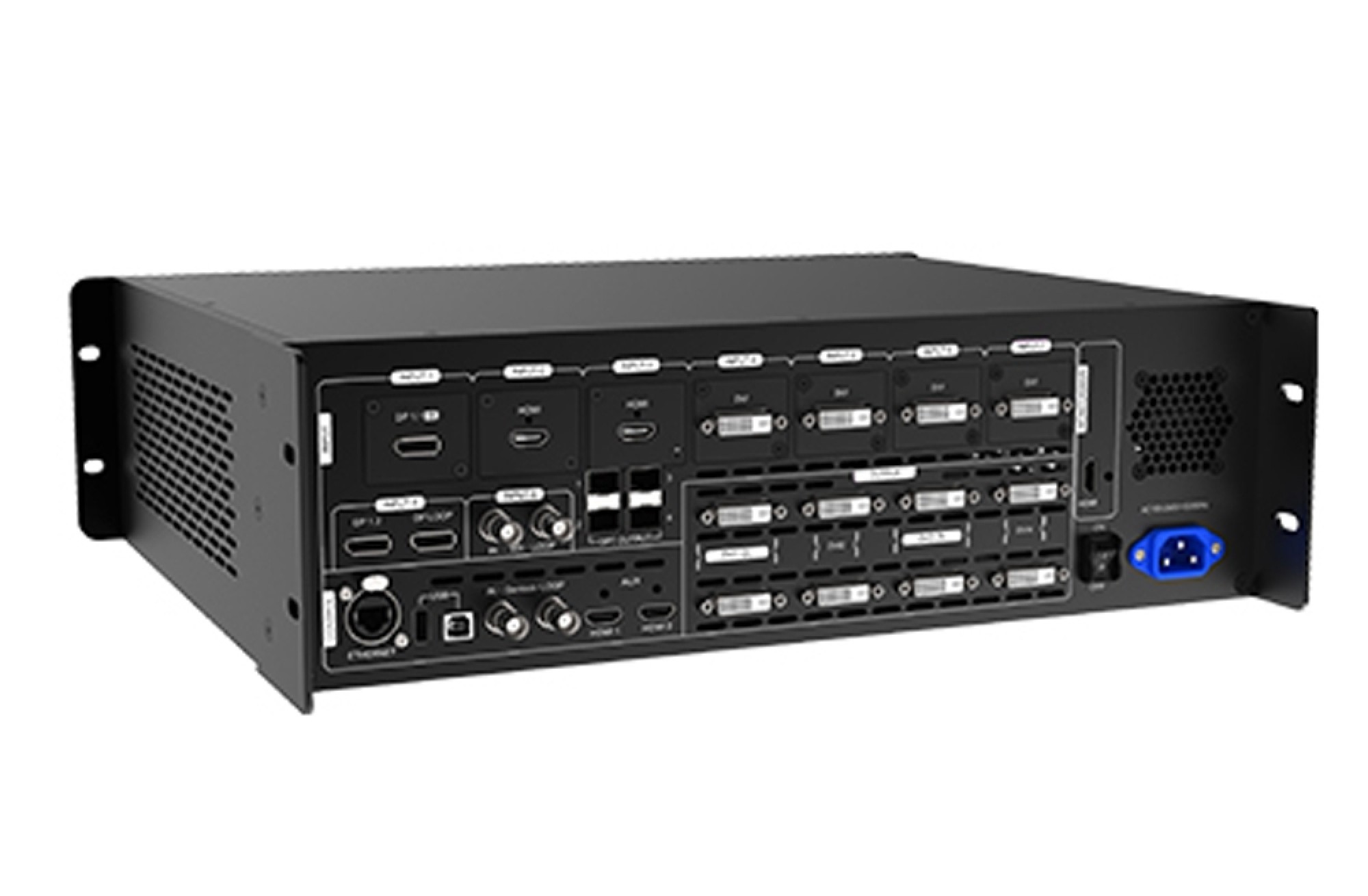

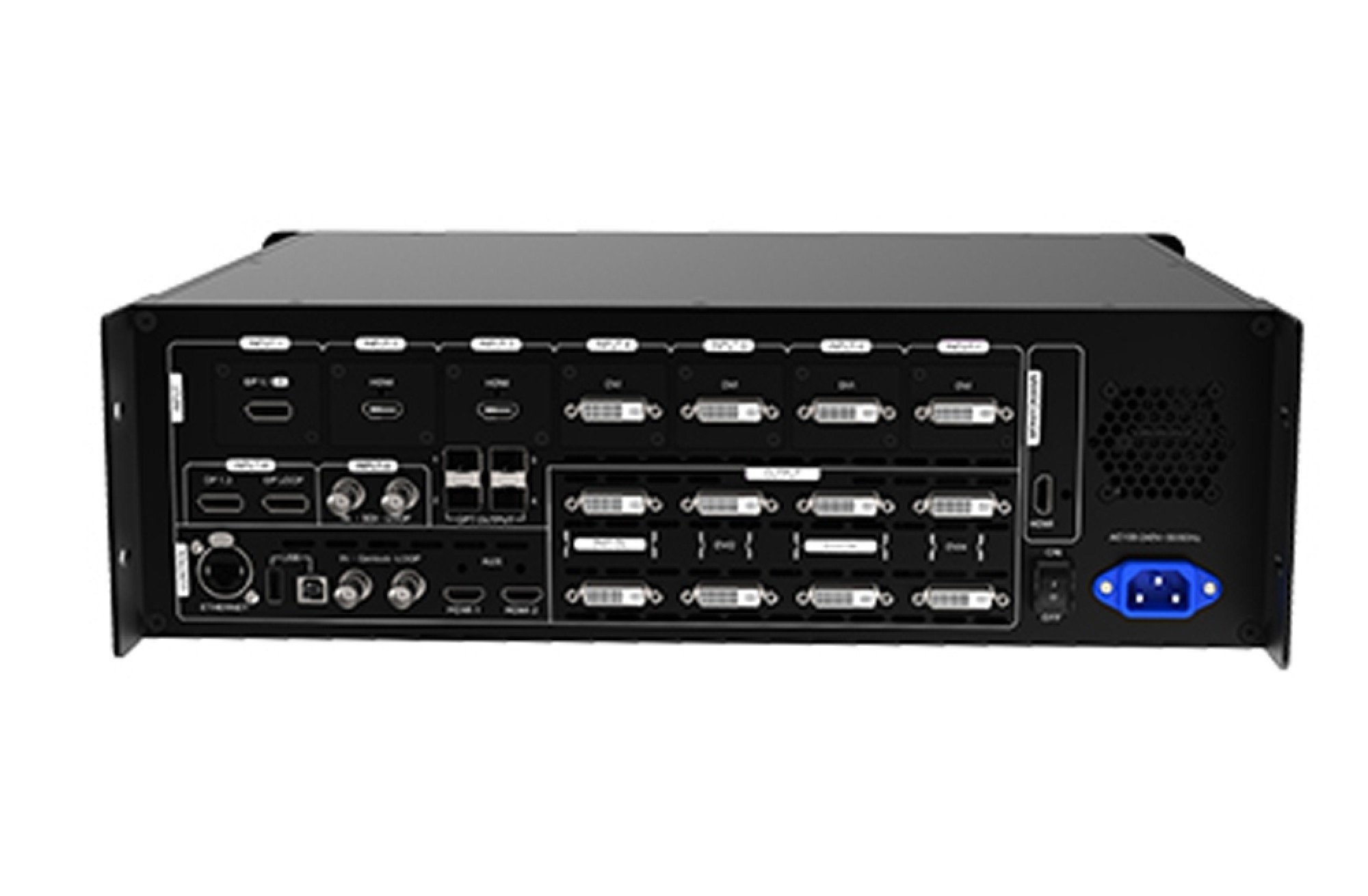

Novastar N9 LED Wall Video Switcher HDMI Parameter:
| Vstup | |
| INPUT-1 | Dual-link DP 1.1 vstup, 3840× and downward compatible |
| This connector can be replaced by an HDMI 1.4, DP 1.1 or dual link | |
| DVI connector based on user requirement. | |
| INPUT-2 | HDMI 1.3, a směrem dolů kompatibilní |
| This connector can be replaced by DVI, VGA or CVBS connector | |
| based on user requirement to accept different video sources. | |
| INPUT-3 | |
| INPUT-4 | DVI1–DVI4, VESA standard compliant, a |
| směrem dolů kompatibilní | |
| INPUT-5 | |
| INPUT-6 | |
| INPUT-7 | |
| INPUT-8 | DP 1.2, a směrem dolů kompatibilní |
| DP1.2 LOOP | |
| INPUT-9 | 3G-SDI, a směrem dolů kompatibilní |
| SDI LOOP | |
| Výstup | |
| HDMI | HDMI output connector, capable of monitoring 9 input sources, |
| PVW a PGM. | |
| DVI1-DL/PGM1 | DVI1 output |
| If the output mode is set to dual link, this connector is DuallinkOut1. | |
| DVI2/PGM2 | DVI2 output |
| If the output mode is set to dual link, this connector is invalid. | |
| DVI3-DL/PVW1 | DVI3 output |
| If the output mode is set to dual link, this connector is DuallinkOut2. | |
| DVI4/PVW2 | DVI4 output |
| If the output mode is set to dual link, this connector is invalid. | |
| HDMI1/HDMI2 | 2 Aux output connectors |
| Řízení | |
| ETHERNET | A control connector |
| (RJ45) | |
| USB | For the connection with control computer |
| USB (Typ-B) | |
| USB | For cascading N9 units |
| USB (Typ-A) | |
| IN–Genlock??/TD> | For synchronizing cascaded devices |
| SMYČKA | |
