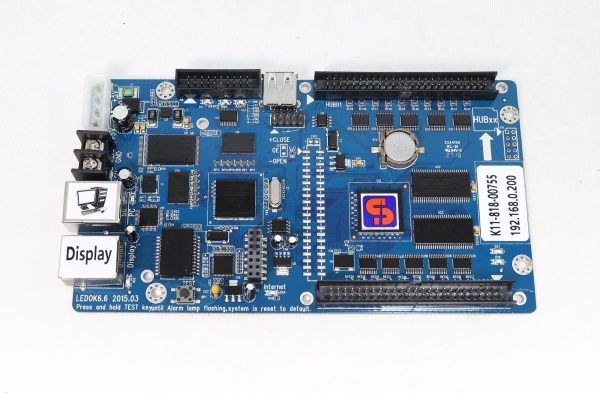

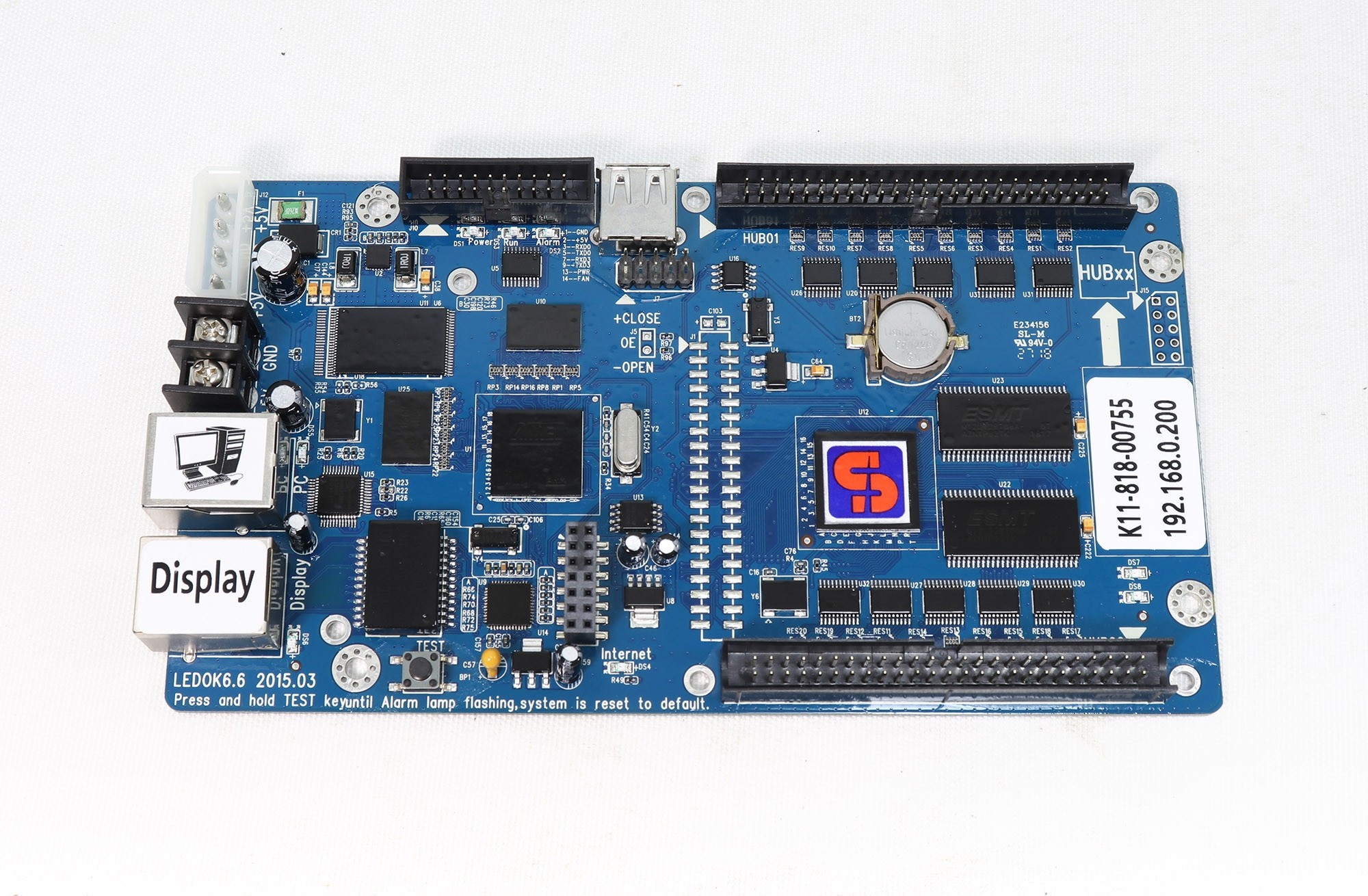

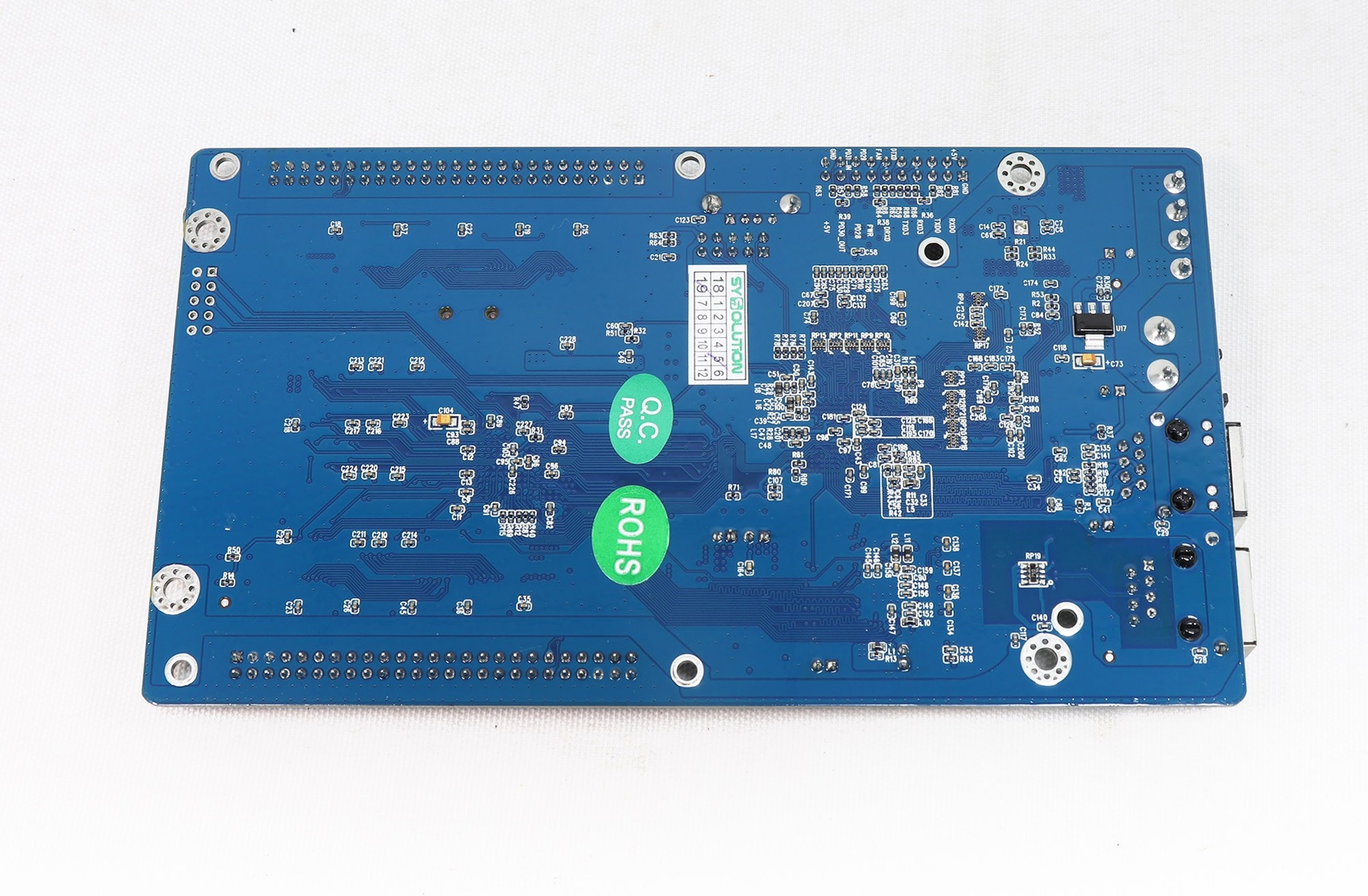

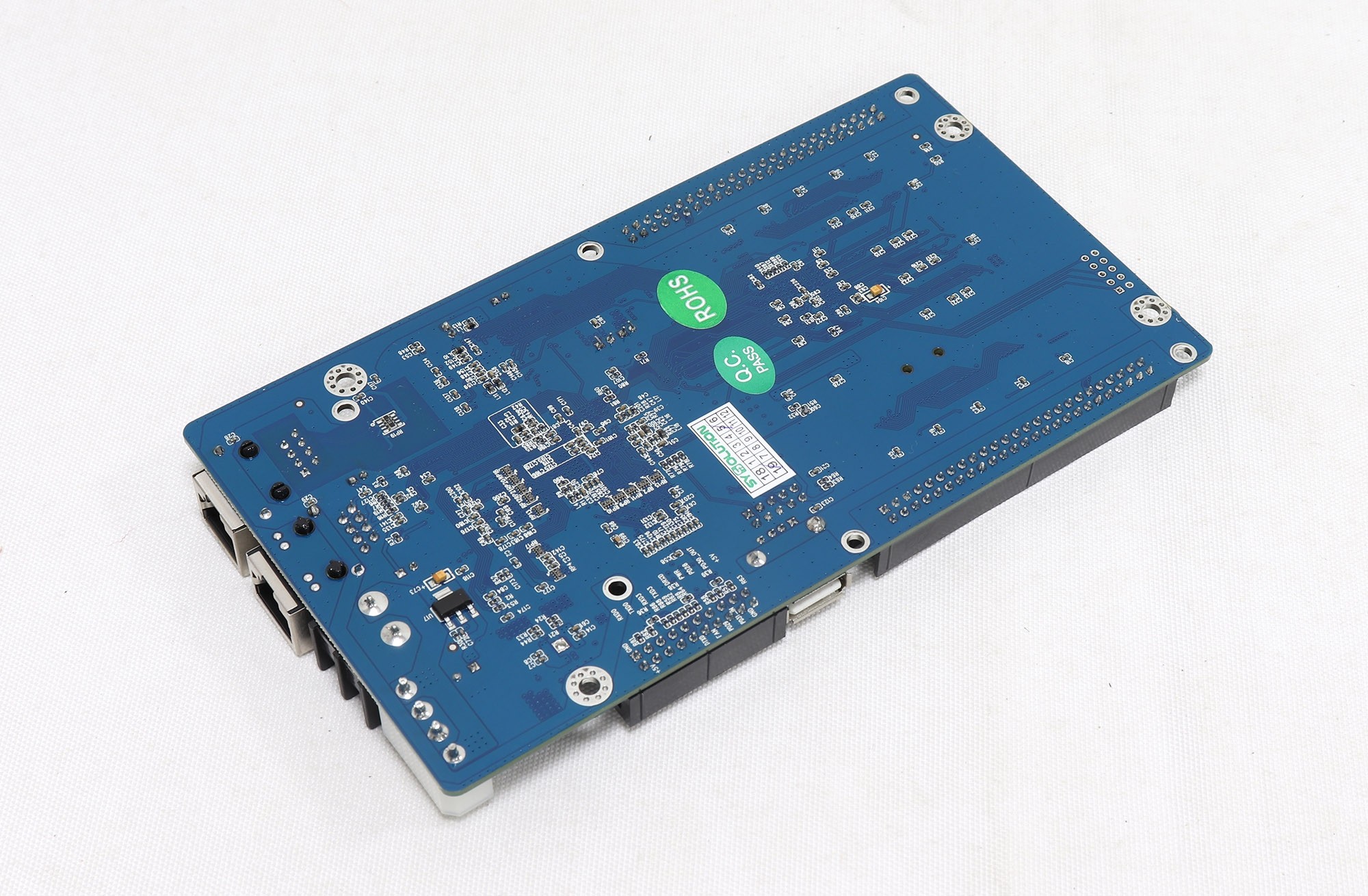

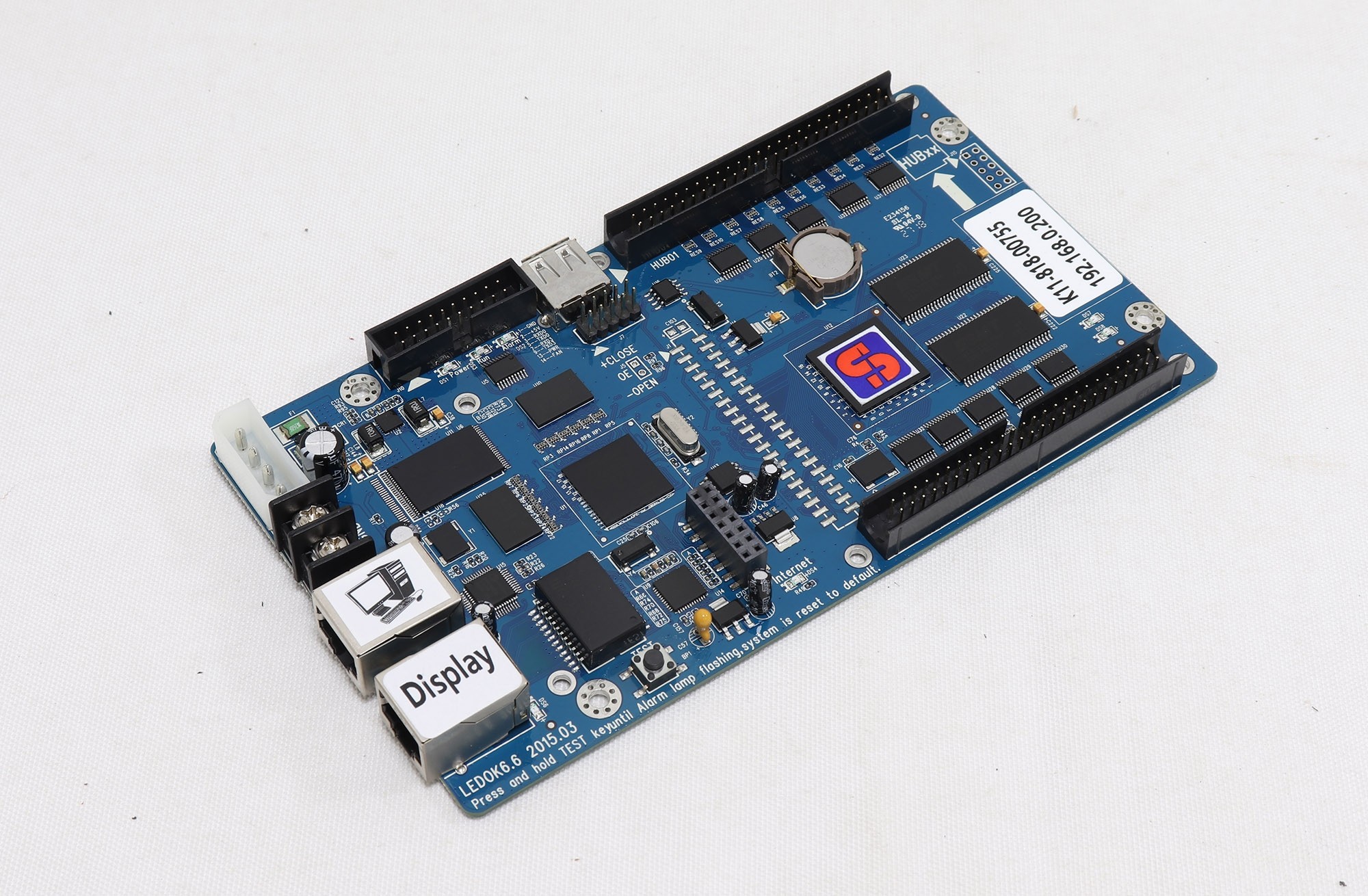

XIXUN K11 Asynchronous LED Controller Board with Cascading Function

Features of XIXUN K11 Asynchronous LED Controller Board with Cascading Function:

1)Video hardware decoding to make sure smoothly displaying, while M-series and A-series controller supports software decoding
2) সমর্থন 4096 gray level for red, সবুজ এবং নীল
3) One card support maximum resolution 640×256 pixels, fixed resolution
4) One sending card supports more than one screen but each screen has the same size, to realize display same content at the same time
5) Supporting read back HCP4 file from led controller
6) Intelligent connection, that is exchange receiving cards in one screen without setup again, the receiving cards will display
the content after exchanging
7) M-series and A-series controller only support 1, 2, 4, 8, 16 scan types, while K-series support random scan types within 1/16 স্ক্যান, পছন্দ 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 scan types
8) Support driver IC with PWM, such as MBI5041
9) One sending card can connect one HUB, saving one piece of receiving card
10) It has same installation holes with synchronous controller, so it is easy to change controller
11)Totally new design, setup controller through software in PC.

Parameters of XIXUN K11 Asynchronous LED Control Board with Cascading Function:
