HUIDU HD-R512 LED Screen Full Color Receiving Card Features:
Gigabit Ethernet порт, used to connect the sending card or receiving
карта, the same two network ports are interchangeable,5
Интерфейс за захранване, can be accessed with 4.5V ~ 5.5V DC voltage.
connect one of them is ok.)
Work indicator, D1 flashes to indicate that the control card is running
normally; D2 flashes quickly to indicate that Gigabit has been recognized and
data is being received.
HUB75Eport, connect to the modules,
Test button,used to test display brightness uniformity and display module
плоскост.
External indicator light, run light and data light.
HUIDU HD-R512 LED Screen Full Color Receiving Card Parameter:
| Fit for sender | Asynchronous controller |
| Тип модул | Съвместим с всички обикновени IC модули, supported most PWM IC module. |
| Режим сканиране | Supports any scanning method from static to 1/64 сканиране |
| Communicatio n method |
Gigabit Ethernet |
| Контролен диапазон | 256*256 пиксели Outdoor module |
| Multi-card connection |
Receiving card can be put in any sequence |
| Сива скала | 256~65536 |
| Интелигентна настройка | Няколко лесни стъпки за завършване на интелигентните настройки, through the screen layout can be set to go with any alignment of the screen unit board |
| Тестови функции | Вградена функция за тестване на екрана на получаващата карта,Test display brightness uniformity and display module flatness. |
| Communicatio n distance |
Вътрешен мрежов кабел Super Cat5, Cat6 146 метра |
| Порт | 5V DC захранване*2,1Gbps Ethernet порт*2, HUB75E*12 |
| Входно напрежение | 4V-6V |
| Работещ температура |
-40~85 |

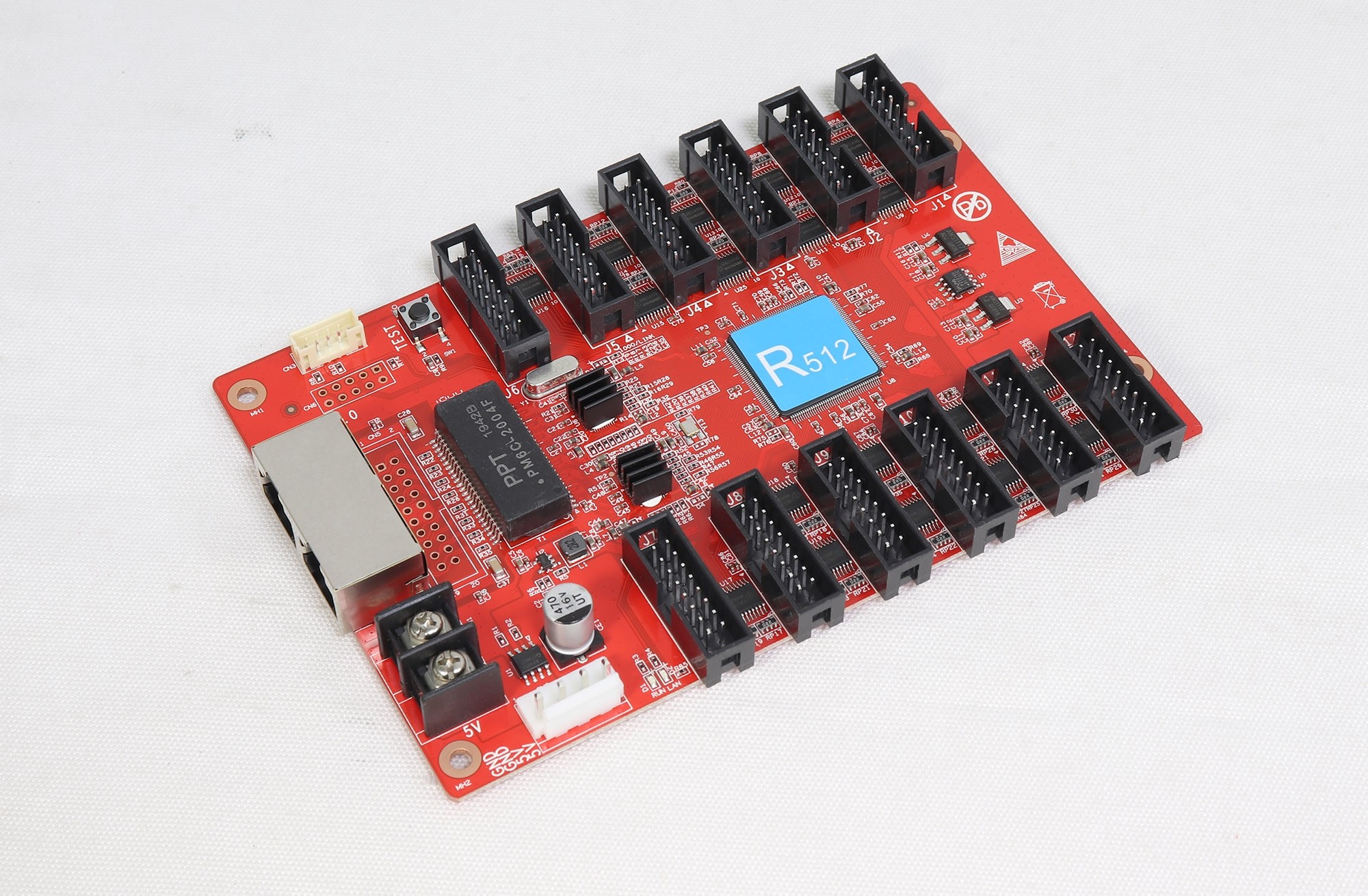

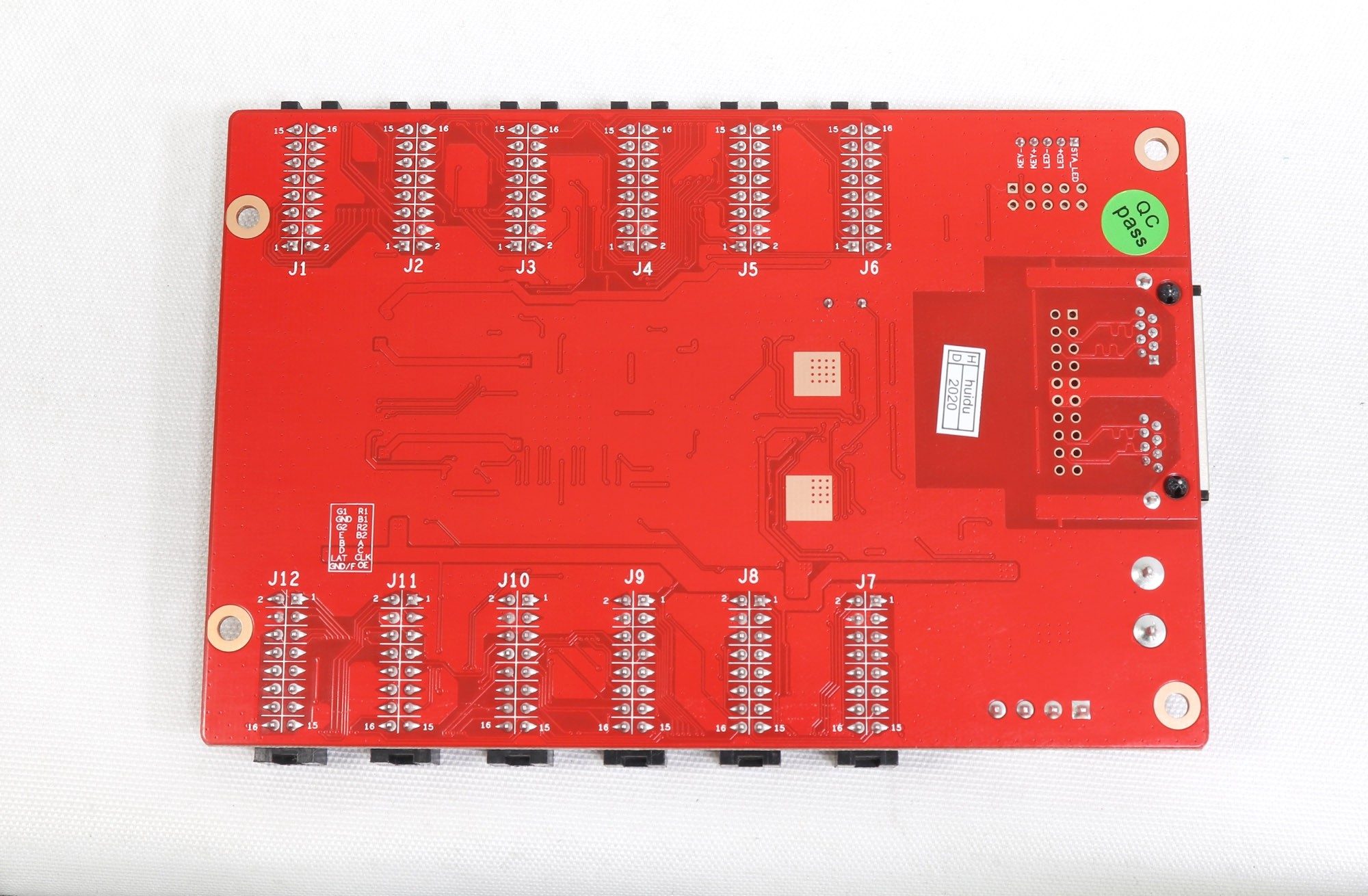

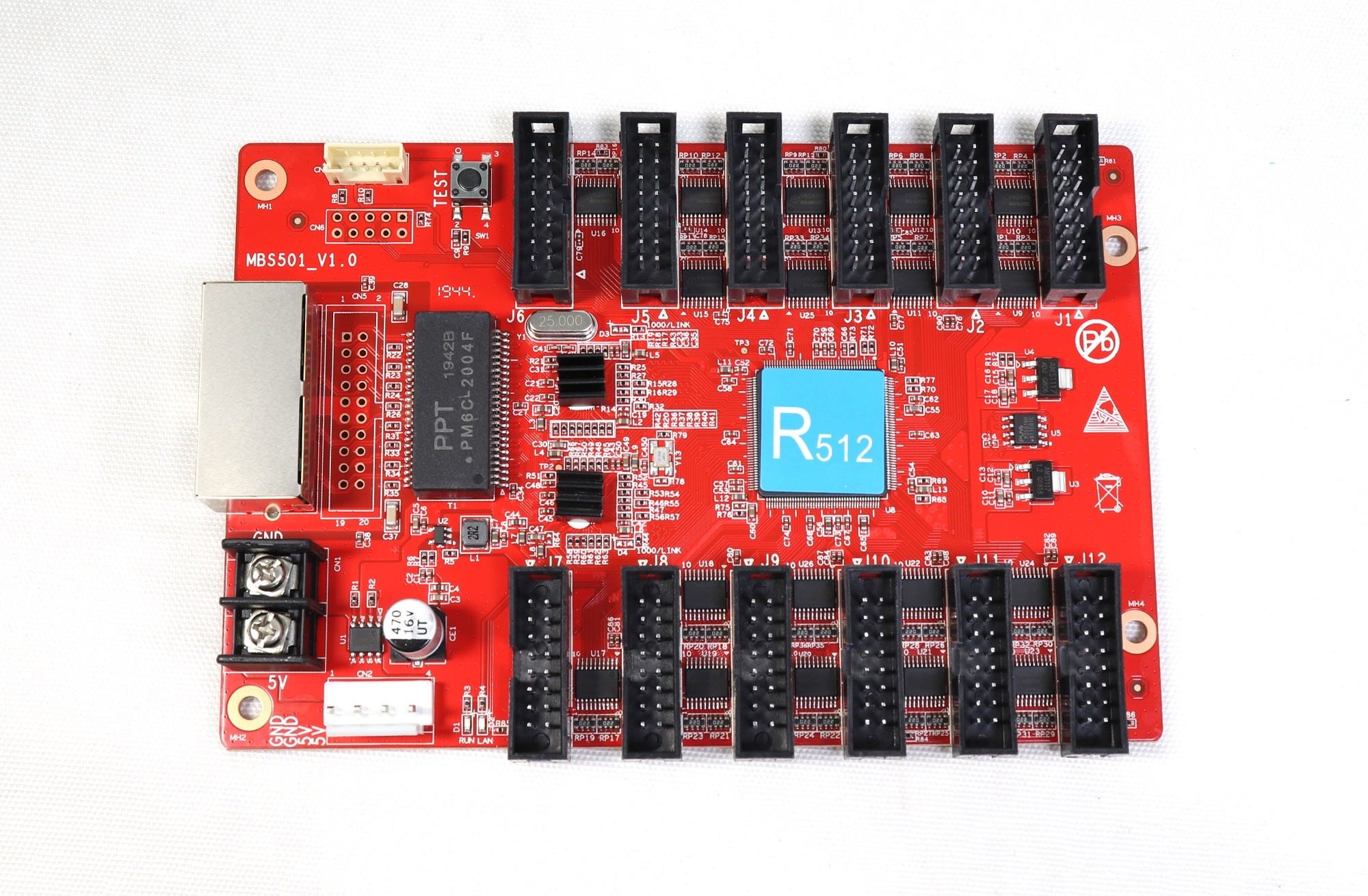

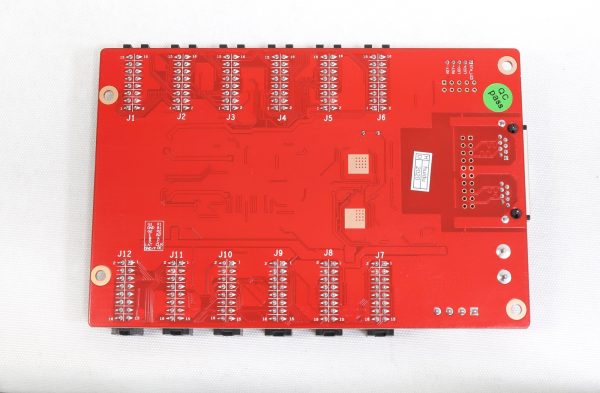

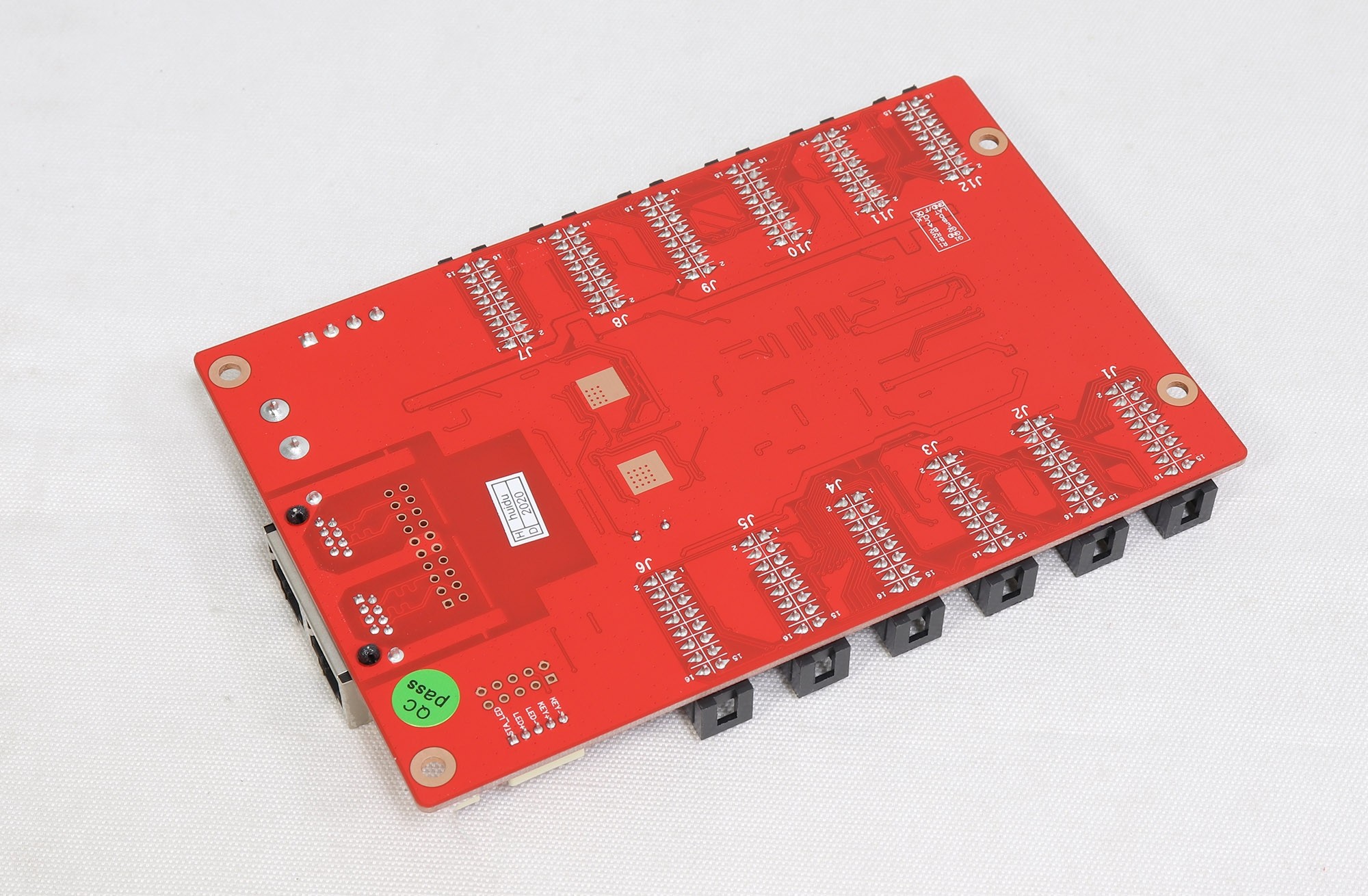

More Pictures of HUIDU HD-R512 LED Screen Full Color Receiving Card:
